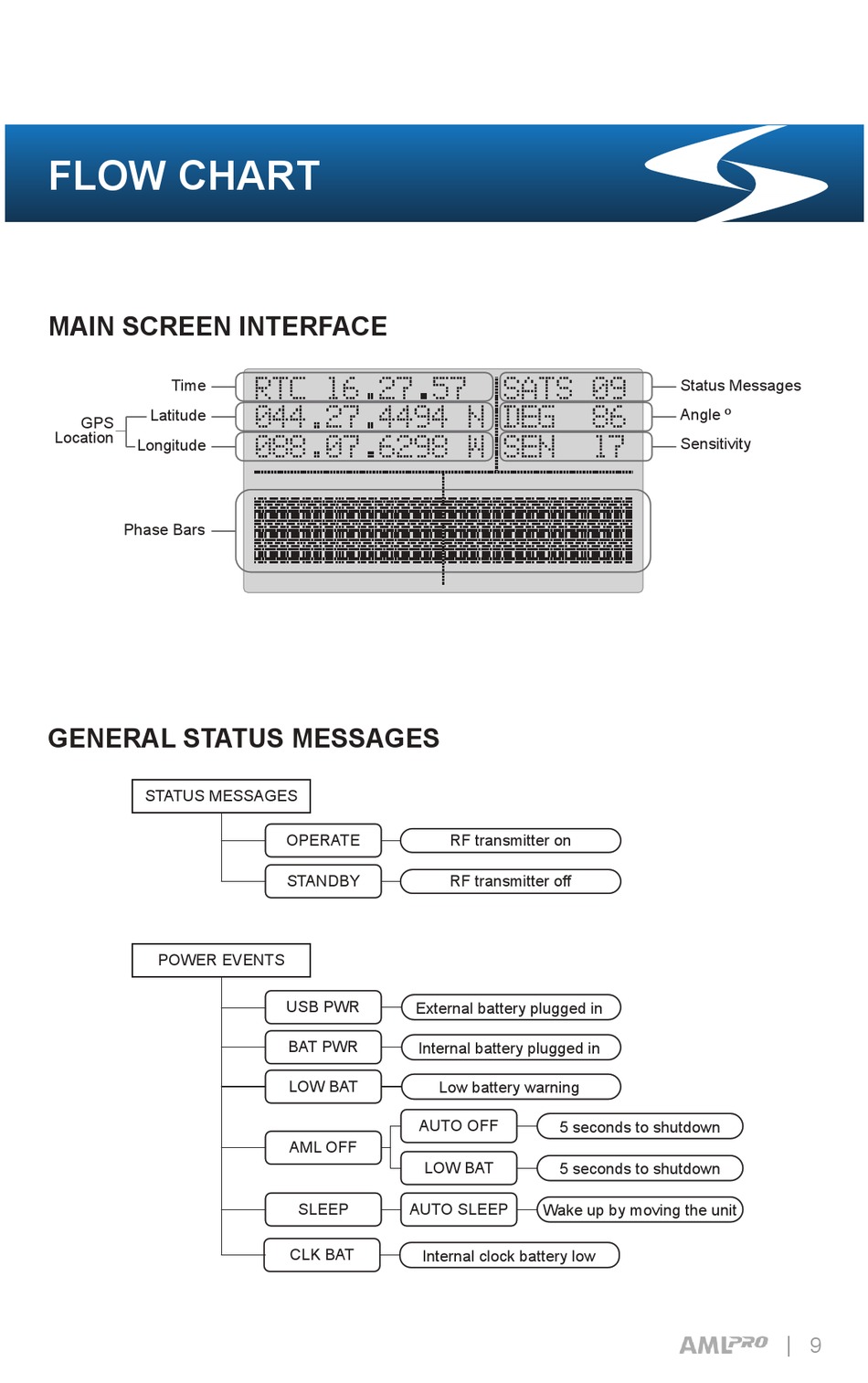

FLOW CHART

MAIN SCREEN INTERFACE
Time
Latitude
GPS
Location
Longitude
Phase Bars

GENERAL STATUS MESSAGES

STATUS MESSAGES
POWER EVENTS
RTC 16 27 57
044 27 4494 N
088 07 6298 W
OPERATE
STANDBY
USB PWR
External battery plugged in
BAT PWR
LOW BAT
AML OFF
SLEEP AUTO SLEEP
CLK BAT
sats
DEG
SEN
RF transmitter on
RF transmitter off
Internal battery plugged in
Low battery warning
AUTO OFF
5 seconds to shutdown
LOW BAT
5 seconds to shutdown
Wake up by moving the unit
Internal clock battery low
09
Status Messages
86
Angle º
17
Sensitivity
9
