APPENDIX

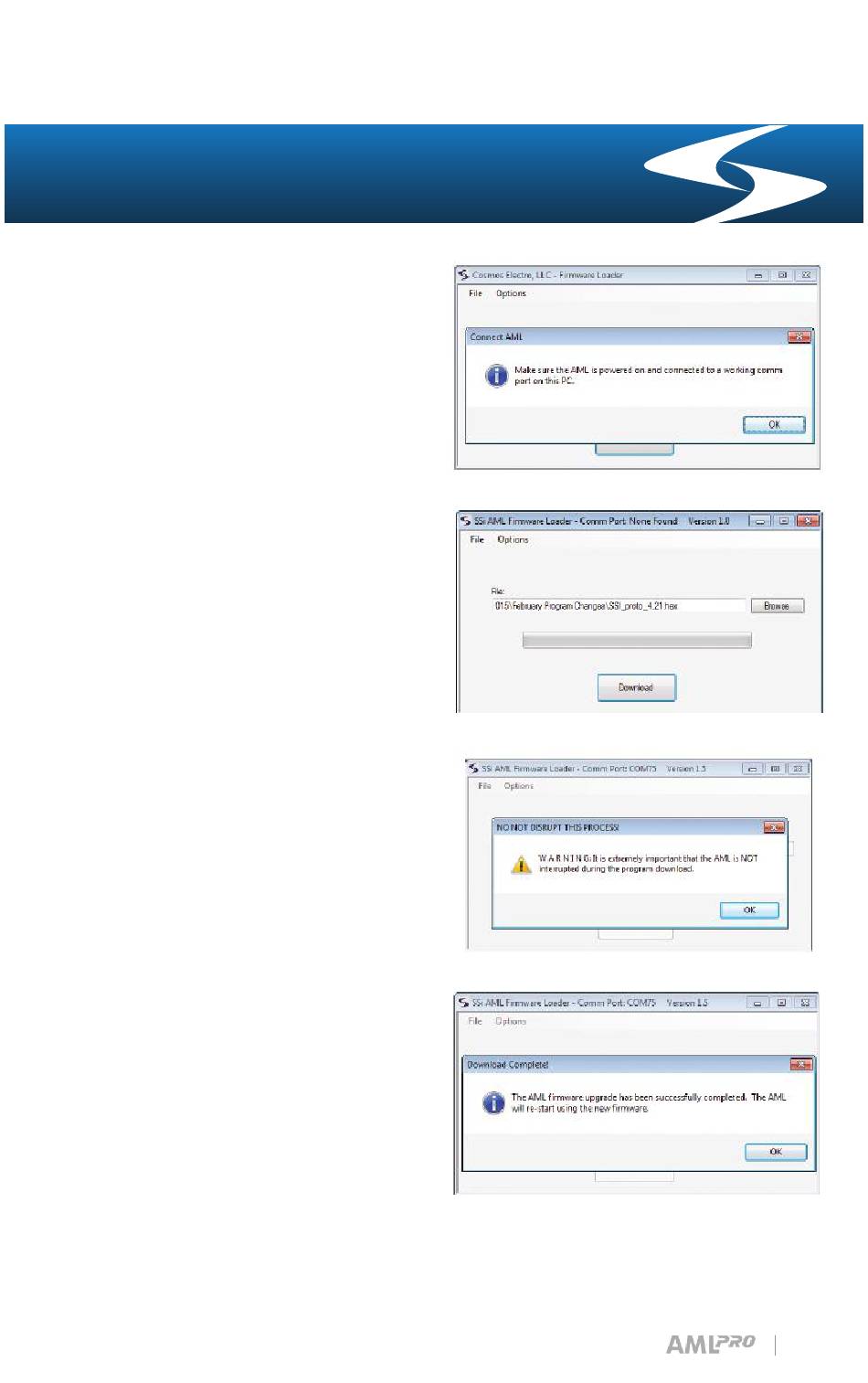

6. Run the Application.
7. Make sure the AML is ON and plugged
in to the USB Port, click "OK"
8. Click on Browse button, go to the AML
Pro Firmware folder you created before
and select the latest firmware update.
9. Click on download
8. WARNING: It is extremely important
that the AML is not interrupted during
the program download.
9. Upon completion, you'll get a
message stating that the file has been
successfully downloaded to the AML,
the unit will automatically turn itself OFF,
DO NOT CLICK "OK" at this point,
10. Make sure to turn the unit back ON,
only then click "OK",
11. This will finish the updating process,
you'll get a message for a successful
firmware upgrade. Exit software.
12. At this point the Unit will need to be
calibrated, it will continue beeping and
will have both indicator lights on, you
can safely turn off the AML and go
outside to start the calibration process.
13. Refer to page 18 of this manual to
Calibrate the AML Pro. After finishing
the Calibration process the Unit is ready
to be used.
Remember the Firmware Update process
brings your unit back to factory setting. Go
to page 16 to adjust the AML Pro to your
Time Zone, Make note that the AML Pro
DOES NOT adjust for Daylight savings,
add one(1) to your Time Zone Set to adjust
the time manually.
If you have any concerns or questions,
please contact us at: info@ssilocators.com
Figure 33-1
Figure 33-2
Figure 33-3
Figure 33-4
