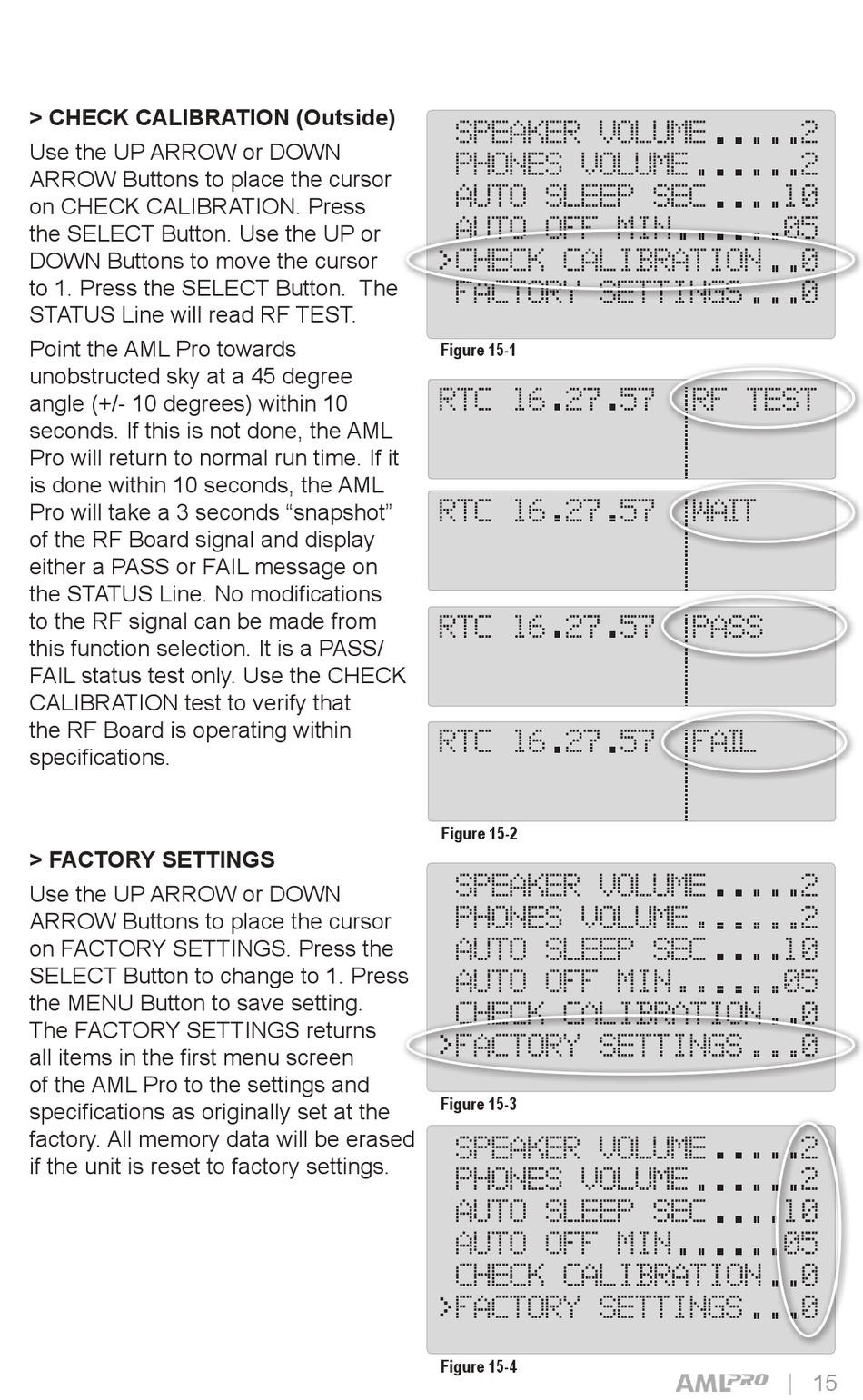

SubSurface Instruments AML PRO Operator's Manual page 15

> CHECK CALIBRATION (Outside)
Use the UP ARROW or DOWN
ARROW Buttons to place the cursor
on CHECK CALIBRATION. Press
the SELECT Button. Use the UP or
DOWN Buttons to move the cursor
to 1. Press the SELECT Button. The
STATUS Line will read RF TEST.
Point the AML Pro towards
unobstructed sky at a 45 degree
angle (+/- 10 degrees) within 10
seconds. If this is not done, the AML
Pro will return to normal run time. If it
is done within 10 seconds, the AML
Pro will take a 3 seconds "snapshot"
of the RF Board signal and display
either a PASS or FAIL message on
the STATUS Line. No modifications
to the RF signal can be made from
this function selection. It is a PASS/
FAIL status test only. Use the CHECK
CALIBRATION test to verify that
the RF Board is operating within
specifications.
> FACTORY SETTINGS
Use the UP ARROW or DOWN
ARROW Buttons to place the cursor
on FACTORY SETTINGS. Press the
SELECT Button to change to 1. Press
the MENU Button to save setting.
The FACTORY SETTINGS returns
all items in the first menu screen
of the AML Pro to the settings and
specifications as originally set at the
factory. All memory data will be erased
if the unit is reset to factory settings.
speaker volume
phones volume
auto sleep sec
auto off m i n
>
check cal i brat i on
factory sett i ngs
Figure 15-1
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
Figure 15-2
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
RTC 16 27 57
speaker volume
phones volume
auto sleep sec
auto off m i n
check cal i brat i on
>
factory sett i ngs
Figure 15-3
speaker volume
phones volume
auto sleep sec
auto off m i n
check cal i brat i on
>
factory sett i ngs
Figure 15-4
2
2
1 0
05
0
0
RF test
RF test
RF test
RF test
wait
wait
wait
wait
pass
pass
pass
pass
fail
fail
fail
fail
RF CAL
RF CAL
RF CAL
RF CAL
2
2
1 0
05
0
0
2
2
1 0
05
0
0
15
