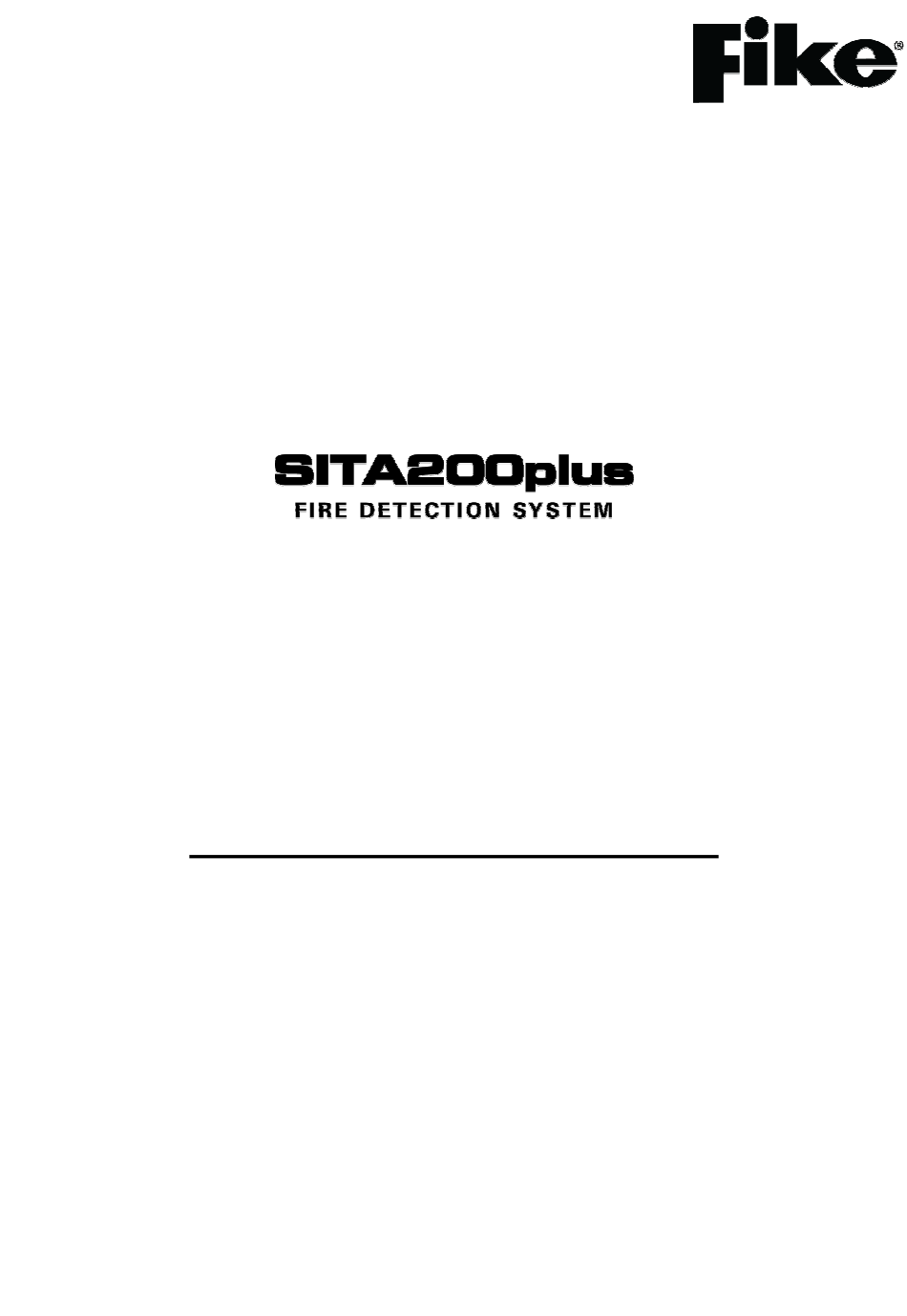

- Page 1 Fire Detection & Alarm System Control Panel V4.14 Control Panel User Guide (TO BE RETAINED BY USER) 26-0397 Issue 6...
- Page 2 Fike’s policy is one of continual improvement and the right to change a specification at any time without notice is reserved. Whilst every care has been taken to ensure that the contents of this document are correct at time of publication, Fike shall be under no liability whatsoever in respect of such contents.
-
Page 3: Table Of Contents
Sita200plus User Guide Contents Introduction Purpose of the guide Definitions Understanding the equipment System configuration What to do if User Responsibilities . Introduction Routine testing . General Operation Normal Access Levels and Soft Keys. Fire Alarm On hearing the alarm Accessing the controls . -
Page 4: Introduction
The Multipoint detector may also incorporate an integral sounder and strobe for general alarm annunciation or local warning as required, an automatic isolator to maintain maximum cable integrity in the event of cable fault, and the ability to interface a variety of other systems into the Sita200plus. -
Page 5: System Configuration
Sita200plus User Guide System Configuration The detectors and call-points are arranged in zones to enable the location of a fire to be identified. The number of zones depends on the size and the layout of the premises, and is limited to 32 zones per control panel (there may be more than one). -
Page 6: User Responsibilities
Sita200plus User Guide User Responsibilities Introduction The responsible person is required under BS5839 to undertake certain tasks with respect to the testing and maintenance of the fire alarm system. The responsible person should also ensure that written procedures are in place for the actions to be taken by the occupants in a fire condition, and that staff required to operate the system have received adequate training. - Page 7 Sita200plus User Guide Annual The requirements of the annual test are similar to the quarterly test except that each device on the system should be tested. Service organisations may undertake device testing on the same visit, ie. One major service and three minor service visits per year, or they may test a percentage of the devices on each visit so that they are all tested within the 12 month period.
-
Page 8: General Operation
Sita200plus User Guide General Operation Normal In the normal operating mode only the green POWER LED is lit. If any other LEDs are lit and/or the buzzer is sounding there is an abnormal condition present. Control Panel Front LCD display... -
Page 9: Fire Alarm
Sita200plus User Guide Fire Alarm When the panel enters the fire state, the alarms will sound, the fire LEDs will illuminate, the buzzer will pulse quickly and the display will show the location and type of alarm. On Hearing the Alarm The responsible person should have already prepared written procedures for the action to be taken in the event of a fire alarm. -
Page 10: Sounding The Alarms (Evacuate)
Sita200plus User Guide Sounding the Alarms To sound the alarms at any time after they have been silenced, proceed as follows: The alarm sounders will activate. The buzzer and the Press ’ALARMS ON/OFF’ fire indication lights will also switch on. -
Page 11: Troubleshooting
Sita200plus User Guide Troubleshooting Problem Possible Cause Remedial Action Unable to silence alarms Panel not in Access Level 2 Enter Access Level 2 (User) - see section (User) on operation Unable to reset system Alarms not silenced Silence alarms before attempting to reset... -
Page 12: Advanced Operation
Sita200plus User Guide Advanced Operation Additional Functions Certain additional functions are available for advanced operation of the control panel. The functions summarised below should only be used in consultation with your fire alarm service organisation. Zone Disable / Enable This function allows the disablement or enablement of a zone. Thus, all the input devices (Manual Call Points, detectors and inputs) within that zone will be disabled. - Page 13 Sita200plus User Guide Zone Test A The [Zone Test A] function allows the selection of one or more zones to operate in a ‘silent one-man walk test mode’. On triggering a device the LED in that device operates and the event is recorded into the event log as a test activation, but the sounder does not sound and the control panel does not show an alarm.
-
Page 14: Led Indication
Sita200plus User Guide Fault Status The [>faults] function causes the control panel to display any items which are in fault. One point shows at a time and the continued pressing of the [>faults] prompt allows the messages to be scrolled through, one at a time. - Page 15 Sita200plus User Guide ‘EARTH FAULT’ Amber Flashing An earth fault has been detected where a path exists from the circuit wiring to earth. Remove circuits one at a time to discover which one, and then rectify. ‘LOOP FAULT Amber Flashing A fault condition is present on the addressable device loop, or one of the addressable devices.
-
Page 16: Log Book
Sita200plus User Guide Log Book Record all fire and fault events, whether or not an engineer was called Event Log Time Zone/Device Event Action Initials... - Page 17 Sita200plus User Guide Time Zone/Device Event Action Initials...
- Page 18 Sita200plus User Guide Time Zone/Device Event Action Initials...
- Page 19 Sita200plus User Guide Time Zone/Device Event Action Initials...
-
Page 20: Installation Details
Ref. No. (if applicable): ……….………………………………………………………………………………… Date of Handover: ……….………………………………………………………………………………… Name and address of installer: …………...………...………………………………………………………… .…………………………………………………………….………………………………………………………. Tel: ………………………………….……………………………………………………………………..….. Fax: ………………………………….………………………………………………………………………… Equipment: Control Panel: Sita200plus V: …………… Serial No.: ………...……………………… No. of zones used: ……………………… Total No. of Devices: …………………...…………… No. of detectors: ………………………...
