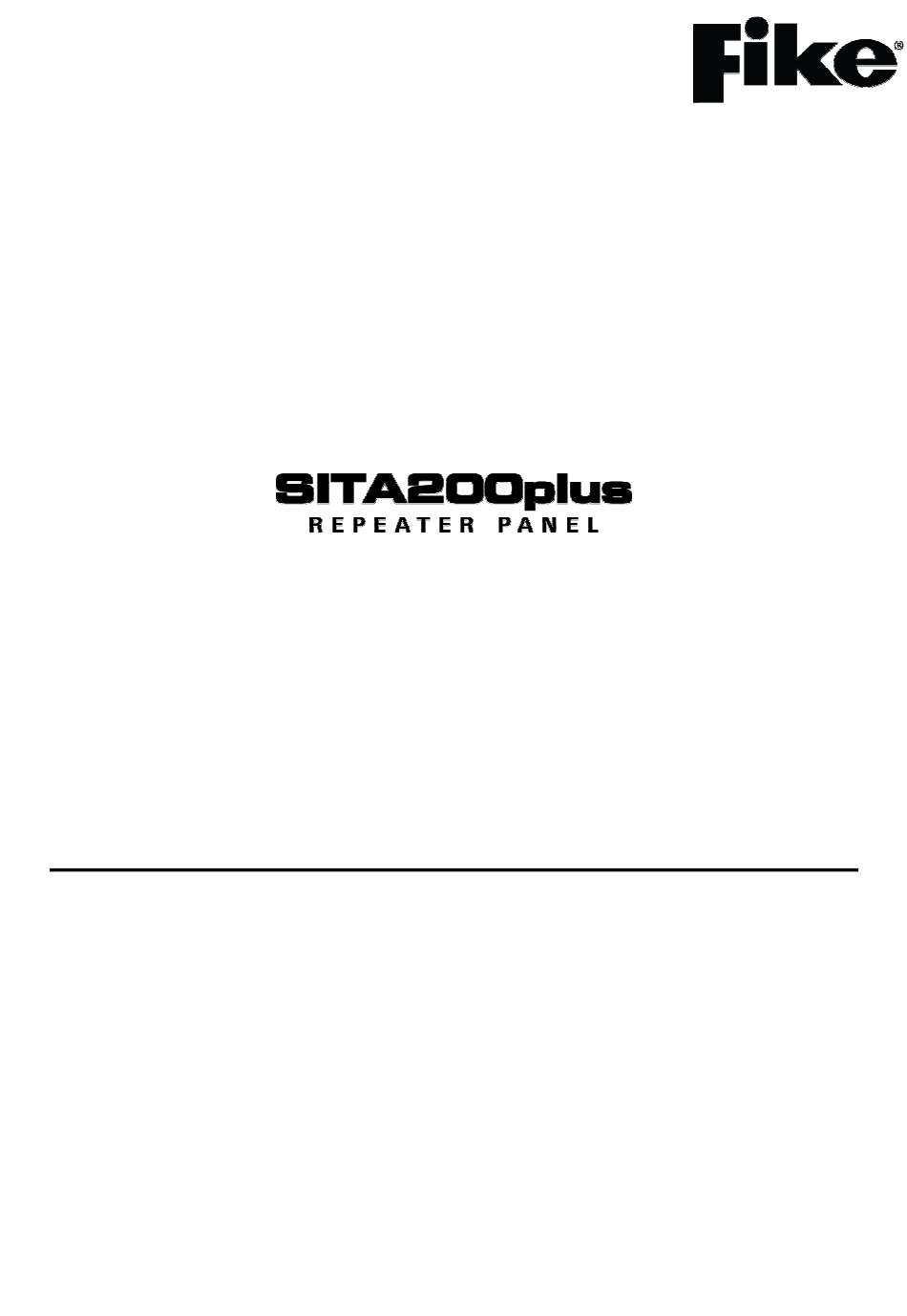

- Page 1 Sita200plus Repeater Panel V4.14 Repeater Panel Installation Instructions (TO BE RETAINED BY THE COMMISSIONING ENGINEER) 26-0540 Issue 5...
- Page 2 Sita200plus Repeater Panel Installation Instructions Fike’s policy is one of continual improvement and the right to change a specification at any time without notice is reserved. Whilst every care has been taken to ensure that the contents of this document are correct at time of publication, Fike shall be under no liability whatsoever in respect of such contents.
-
Page 3: Table Of Contents
Sita200plus Repeater Panel Installation Instructions Contents Introduction System Design Equipment Guarantee Anti Static Handling Guidelines . Warning Repeater Panel Mounting the Repeater Panel General Assembly Physical Dimensions Power Supply Unit Topology and Cabling System Wiring Schematic . Repeater Panel Connections... -
Page 4: Introduction
Sita200plus Repeater Panel Installation Instructions Introduction This Manual is intended as a guide to the engineering and commissioning principles of the Sita200plus Addressable Intelligent Fire Alarm and Detection system, and covers the system hardware information only. Due to the complexity and inherent importance of a system covering a ‘Life Protection Risk’, training on this equipment is essential. -
Page 5: Repeater Panel
Sita200plus Repeater Panel Installation Instructions Repeater Panel Mounting the Repeater Panel Firstly identify the proposed location for the repeater panel. Ensure that the repeater panel will be easily accessible, and that account is taken of any subsequent work that may affect access. -
Page 6: Physical Dimensions
Sita200plus Repeater Panel Installation Instructions Physical Dimensions The repeater panel back box is designed as a dual-purpose surface or flush unit. The 14mm flange facilitates flush mounting. To allow installation of the main front moulding, this flange must be flush with the mounting surface and not recessed into it. -
Page 7: Topology And Cabling
Sita200plus Repeater Panel Installation Instructions Topology & Cabling All system wiring should be installed to comply with BS 5839: Pt1: 2002 and BS 7671 (wiring regulations) and any other standards relevant to the area or type of installation. A cable complying with the BS 5839: Pt1: 2002 (cables required to operate for prolonged periods during fire conditions) is required. -
Page 8: Repeater Panel Connections
Sita200plus Repeater Panel Installation Instructions Repeater Panel Connections REPEATER LINK: 230V AC BAT 1 BAT 2 MAX 1KM OF 2-CORE 1.5MM2 SCREENED CABLE L N E BETWEEN CONTROL PANEL AND REPEATER.. CONNECT EACH SCREEN TO EARTH AT ONE END ONLY. - Page 9 Sita200plus Repeater Panel Installation Instructions Mains Input: L, N, E BACK BOX TO SWITCH MODE POWER SUPPLY BLUE NEUTRAL EARTH EARTH BROWN LIVE The 230V AC input is to be connected into the mains supply connection terminals provided in the back box. This input is protected by a 3.15AT fuse.
- Page 10 Sita200plus Repeater Panel Installation Instructions Relay 1 – COM1, NC1, NO1, SPR1 MAIN PCB FIELD CONNECTIONS COMMON NORMALLY CLOSED NORMALLY OPEN SPARE Relay 1 consists of a ‘volt-free’ ‘change-over’ relay contact which is not fault monitored. The relay contacts are rated at 30vDC / 2A max.
- Page 11 Sita200plus Repeater Panel Installation Instructions Fuses The fuses are located below the control panel terminals. Label Description Fuse Output 5 F200mA Output 4 F200mA Battery DC Input Power Auxiliary 24V Power F200mA LCD Contrast The LCD contrast may be adjusted by rotating the screw on the variable resistor located adjacent to the fuses.
-
Page 12: General Operation
Sita200plus Repeater Panel Installation Instructions General Operation of Repeater Panel Repeater Panel Front LCD display ADDRESSABLE FIRE ALARM 4V14 PROGRESSIVE FIRE SYSTEMS LTD FOR SERVICE CALL 01234 567890 [DISPLAYon][testDISPLAY][AL2 CODE][nextMENU] System status Fault & delay status Keypad Detection-Zone Fire Indication... -
Page 13: Access Codes
Sita200plus Repeater Panel Installation Instructions Access Codes Access to the system menus requires the correct entry of the access level 2 (User) or access level 3 (engineer) code in order to protect against unauthorised access to the system. These codes default to the settings below but may be altered from the Sita OSP software. -
Page 14: Access Level 2 (User)
Sita200plus Repeater Panel Installation Instructions Test Display The ‘testDISP’ function causes the panel LEDs to pulse and the LCD to blacken in order that their correct operation may be verified. AL2 Code The ‘AL2 CODE’ function enables access to Access Level 2 (user level). This is followed by a code entry prompt, so you will need to enter the code (default 222). -
Page 15: Access Level 3 (Engineer)
Select OSP mode for upload Set Repeater ID Only 1 repeater panel can be connected to the Sita200plus control panel. This menu should not be used, if this option is entered the repeater ID should be set to 1. Exit AL3 The ‘Exit AL3’... -
Page 16: Installation & Commissioning
Power up and program the main control panel according to the control panel instructions, leaving the repeater R-Bus disconnected at this stage (see the Sita200plus Engineering & Commissioning Instructions for further details). Power up the Repeater Panel by applying the 230V AC mains supply, before connecting the batteries. -
Page 17: Fault Finding
Sita200plus Repeater Panel Installation Instructions Fault Finding Summary of Faults Common Problems R-Bus Integrity Disconnect the R-Bus connector at the panel to enable testing of the cable. Install a wire link between the R+ and R– connections at the last point in order to be able to take cable continuity readings, removing it to take insulation readings. -
Page 18: Technical Data
Technical Support For further technical support please contact your distributor. Do not call the Fike Safety Technology technical support department unless your distributor has first given their advice and attempted to rectify the issue. Technical support will not be available if the instruction manual has not been read and understood. Please have this instruction manual available whenever you call for technical support. -
Page 19: Further Information
Sita200plus Repeater Panel Installation Instructions Further Information Battery Calculations Where: IS = Standby Current IA = Alarm Current MP = Multi Point Detector Item Quantity IS (mA) Tot IS (mA) IA (mA) Tot IA (mA) Repeater Panel 38.000 52.000 Panel O/P 4 (200mA 200.000... -
Page 20: Installation Checklist
Sita200plus Repeater Panel Installation Instructions Installation Checklist Use the following checklist to ensure that your work is correct and that the commissioning engineer has the necessary information to complete the commissioning of the system The commissioning engineer will require this sheet, along with ‘Cable Continuity and Insulation Test Results’, correctly marked ‘as-wired’... -
Page 21: Commissioning Checklist
Sita200plus Repeater Panel Installation Instructions Commissioning Checklist The following checklist may be used to ensure that all steps are taken. It serves as a reminder only and may need additional items added if required. Step 1 Description Commissioning Engineer Checked... -
Page 22: Cable Continuity And Insulation Test Results
Sita200plus Repeater Panel Installation Instructions Cable Continuity & Insulation Test Results After installation of the cable, and termination into temporary connector block, install a wire link between the R- Bus +ve and –ve connections at the last device in order to be able to take cable continuity readings, removing it to take insulation readings. - Page 23 Sita200plus Repeater Panel Installation Instructions Your Notes...
-
Page 24: Important Points
Sita200plus Repeater Panel Installation Instructions Important Points • Use a 2-core 1.5mm and earth/screen fire rated cable similar to FP200 or MICC (page 7). • Connect the repeater panel in a radial circuit. • Make sure that the earth cables are sleeved, connected together and connected to earth at one end only (page 7).
