PI PIMag V-27 Series Short Instructions

MP162EK 1.1.0 09/2019. 0.3

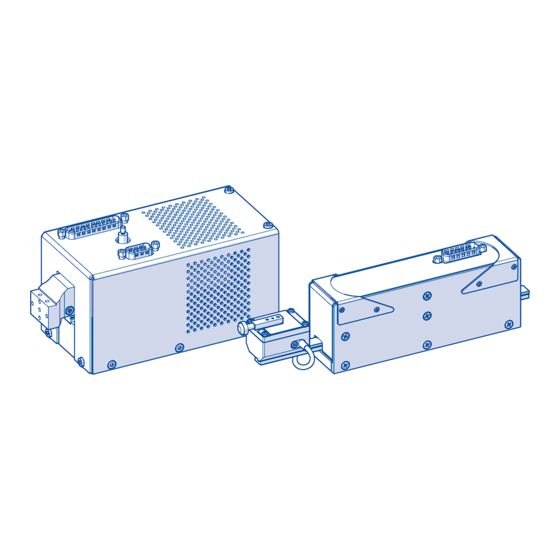

PIMag® Linear Actuators
Short Instructions
V­27x

User Information

These short instructions contain an overview of the most important safety and handling instruc-
tions for installing and operating voice coil linear actuators with the product codes specified above
(x: any number).
Subject to change. These short instructions are superseded by any new release. The latest respec­
tive release is available for download on our website.

Downloading and Reading the Manual

The actions during installation, startup, operation, and maintenance require additional information
from the manuals of the linear actuator and/or the controller. Manuals may be titled as follows:
„User Manual", „Technical Note".
Downloading the Manuals from the Website:
1. Note the product number on the product (e.g., V­273.441).
2. Open the website www.pi.ws.
3. If the product was shipped with a data storage device: Log into the website:
a. Click Login.
b. Enter the login data. The login data is in the [...]_Releasenews_[...].pdf on the product's
data storage device (in the main directory or the Manuals directory). If necessary: Follow
the link and register yourself to get the login data.
c. Click Login or press the Enter key.
4. Click Search.
5. Enter the product number up to the period (e.g., V­273) into the search field.
6. Click Start search or press the Enter key.
7. Click the corresponding product in the list of search results.
8. Click the Downloads tab.
The manuals are displayed under Documentation.
9. Click the desired manual and save it.
If you cannot find the manual you are looking for or if you have any questions: Contact our custo-
mer service department via service@pi.de.
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstr. 1, 76228 Karlsruhe, Germany
Phone +49 721 4846­0, Fax +49 721 4846­1019, Email info@pi.de, www.pi.de
