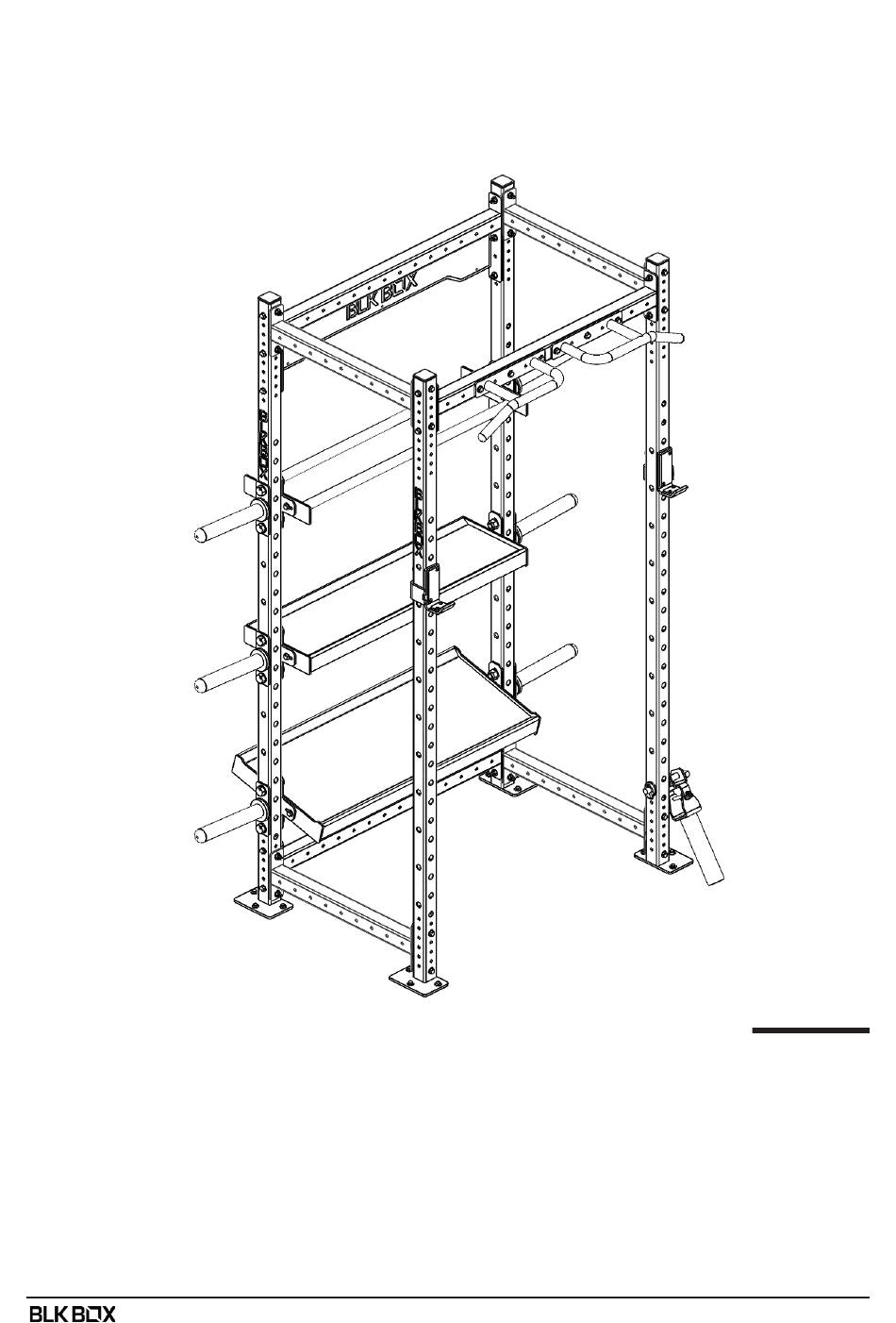

OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX

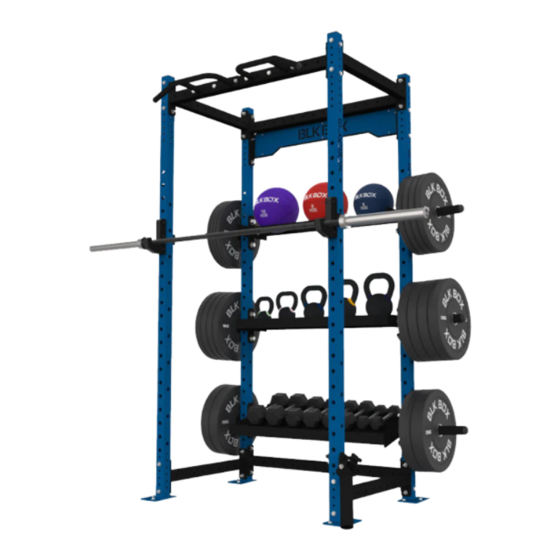

PT POD GOLIATH
21-0600
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING WEIGHT
DIMENSIONS
SAFE WORKING ZONE
PRODUCT SPECIFICATION
-
-
-
-
-
1200mm x 2408mm x 980mm
-
2700mm x 3272mm x 3580mm
#MADEINBELFAST
170kg
125kg
1
300kg
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX GOLIATH PT POD
Summary of Contents for BLK BOX GOLIATH PT POD
- Page 1 BLK BOX PT POD GOLIATH 21-0600 PRODUCT SPECIFICATION PRODUCT WEIGHT 170kg 125kg MAX USER WEIGHT MAX USER OWNERS MANUAL & QUICK START GUIDE MAX TRAINING WEIGHT 300kg DIMENSIONS 1200mm x 2408mm x 980mm NOTE : PLEASE READ ALL THE INSTRUCTIONS...
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY BOLT 1QTY BRANDING BOX (21-0017-0A] AND 1QTY 1.2 BOX (21-0013-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A) WITH BOLTS ASSEMBLY AS SHOWN. ENSURE LOGOS ON BRANDING BOX (21-0017-0A) IS FACING FORWARD, LOGOS ON UPRIGHTS ARE FACING OUTWARD AND ALL BOLTS FACING INWARDS. 10.0008 10.0019 x2 10.0024...
- Page 4 BOLT 6QTY UTILITY PEG (21-0234) AND 6QTY SIDE PLATES (PLATES VARY DEPENDING ON SHELF) EITHER SIDE OF 2QTY UPRIGHT (21-0036-0A) WITH BOLT ASSEMBLY AS SHOWN. 10.0134 10.0023 x2 10.0028 10.0134 10.0023 x2 10.0028 #MADEINBELFAST...
- Page 5 BOLT 3QTY SHELVES (SHELVES VARY DEPENDING ON ORDER) TO 6QTY SIDE PLATES WITH BOLT ASSEMBLY AS SHOWN. 10.0001 10.0019 x2 10.0024 10.0001 10.0019 x2 10.0024 #MADEINBELFAST...
- Page 6 BOLT 1QTY 1.2 BOX (21-0013-0A) BETWEEN 2QTY UPRIGHTS (21-0036-0A) AND CONNECT TO EXISTING ASSEMBLY USING 4QTY 0.7 BOX (21-0011-0A) WITH BOLT ASSEMBLY AS SHOWN. BOLT 1QTY MULTIGRIPS (21-0151-0A) TO 1QTY 1.2 BOX (21-0013-0A) WITH BOLT ASSEMBLY AS SHOWN ENSURE LOGO ON UPRIGHTS ARE FACING OUTWARD AND BOLTS ARE FACING INWARD. 10.0008 10.0019 x2 10.0024...
- Page 7 TIGHTEN ALL BOLT ASSEMBLIES TO 30NM TORQUE. ENSURE ALL UPRIGHTS ARE PLUMB. DRILL AND SECURE THE MIDDLE HOLE ON EACH UPRIGHT AS SHOWN IN GUIDE. REMOVE ALL BOTTOM CROSSMEMBERS, DRILL AND SECURE REMAINING HOLES ON UPRIGHTS AS SHOWN IN GUIDE. REATTACH THE BOTTOM CROSSMEMBERS.
- Page 8 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
- Page 9 THIS IS A BLANK PAGE #MADEINBELFAST...
