BLK BOX 91-0145 Owner's Manual & Quick Start Manual

Weights tree on wheels

OWNERS MANUAL & QUICK START GUIDE

NOTE : PLEASE READ ALL THE INSTRUCTIONS

CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

BLK BOX

WEIGHTS TREE ON WHEELS

91-0145

PRODUCT SPECIFICATION

PRODUCT WEIGHT

MAX LOAD

DIMENSIONS

SAFE WORKING ZONE

36kg

500kg

982mm x 1466mm x 800mm

1082mm x 2700mm x 2400mm

#MADEINBELFAST

Table of Contents

Need help?

Do you have a question about the 91-0145 and is the answer not in the manual?

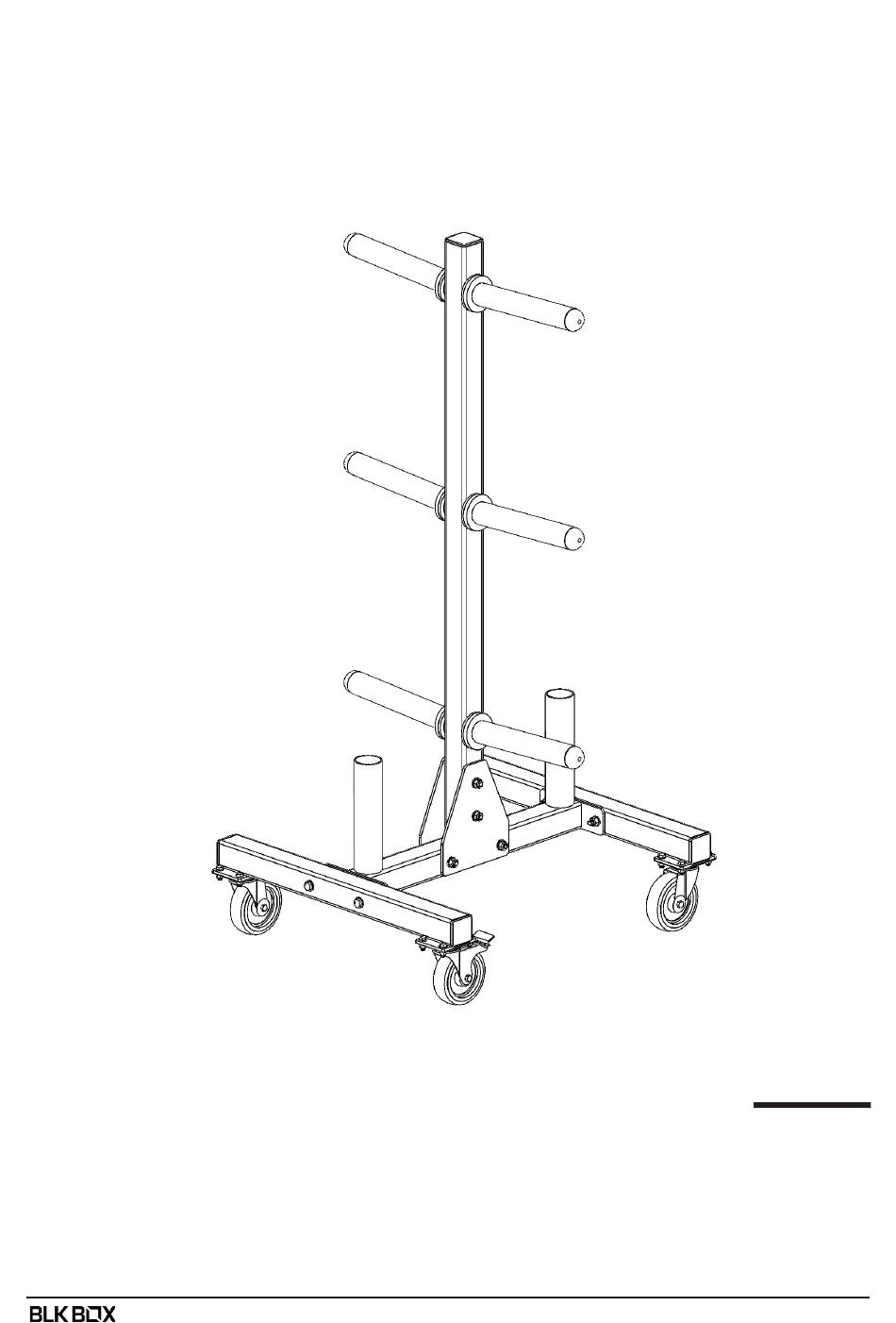

Page 1 BLK BOX WEIGHTS TREE ON WHEELS 91-0145 PRODUCT SPECIFICATION 36kg PRODUCT WEIGHT OWNERS MANUAL & QUICK START GUIDE 500kg MAX LOAD 982mm x 1466mm x 800mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS 1082mm x 2700mm x 2400mm CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
Page 3 ASSEMBLY BOLT 1 QTY WEIGHT TREE CM (21-0254) BETWEEN 2QTY WEIGHT TREE SUPPORTS (91-0146). INSERT WEIGHT TREE UPRIGHT (21-0253) INTO SLOTS PLACE A BRACE PLATE (20-0472) EITHER SIDE. ATTACH ALL BOLTS ASSEMBLES AS SHOWN. ENSURE ALL BOLTS ARE FACING INWARDS AND TIGHTEN TO 30NM. 10.0008 10.0019 x2 10.0024...
