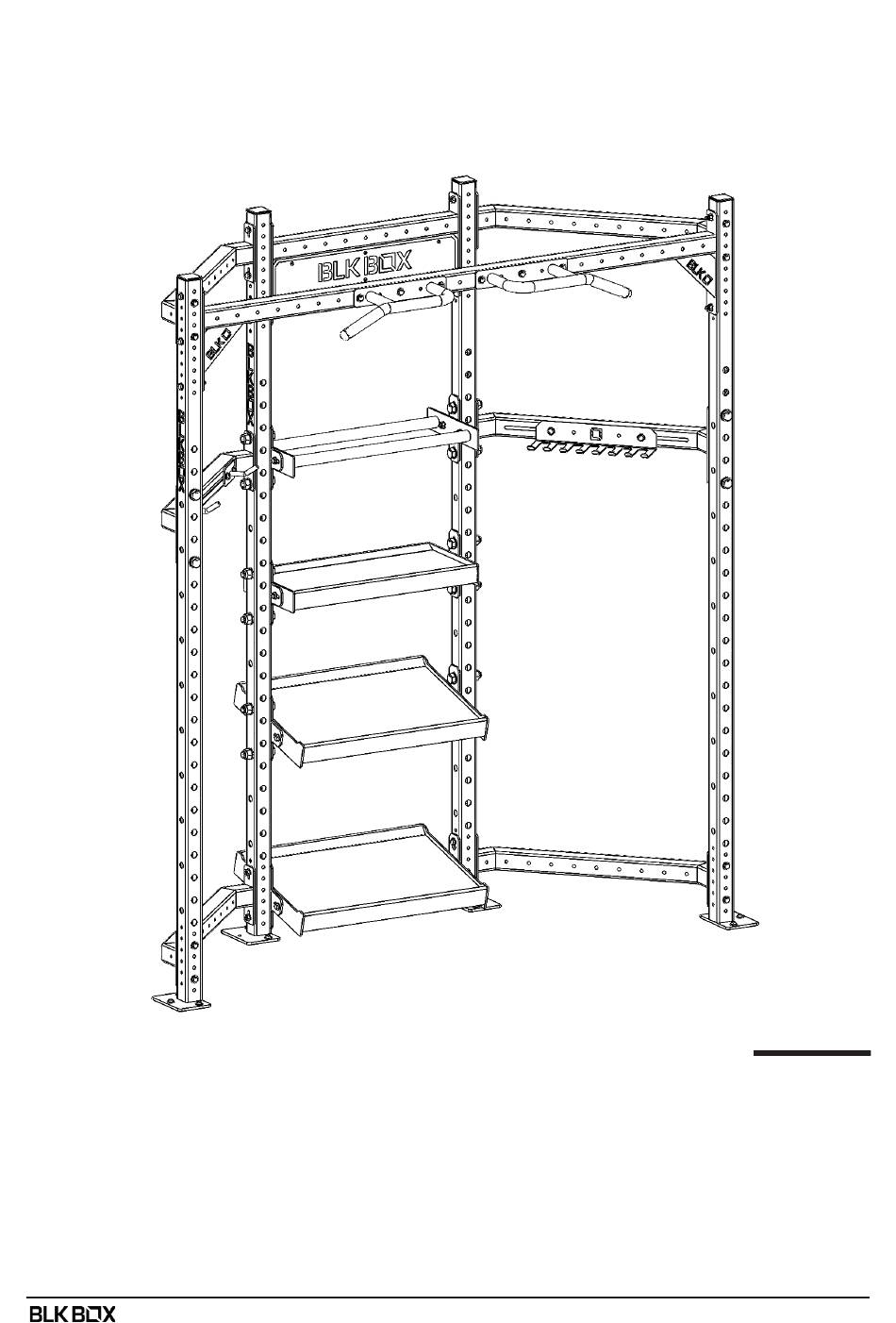

OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
BLK BOX
CORNER POD
21-0577
PRODUCT WEIGHT
MAX USER WEIGHT
DIMENSIONS
PRODUCT SPECIFICATION
-
-
-
2151mm x 786mm x 2408mm
#MADEINBELFAST
167kg
150kg
Advertisement
Table of Contents
Related Manuals for BLK BOX 21-0577
Summary of Contents for BLK BOX 21-0577
- Page 1 BLK BOX CORNER POD 21-0577 PRODUCT SPECIFICATION PRODUCT WEIGHT 167kg MAX USER WEIGHT 150kg OWNERS MANUAL & QUICK START GUIDE DIMENSIONS 2151mm x 786mm x 2408mm NOTE : PLEASE READ ALL THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT. #MADEINBELFAST...
- Page 2 WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
- Page 3 ASSEMBLY BUILD UP EACH SHELF ASSEMBLY USING SIDE PLATES ( 20-0048 / 20-0049 ) AND M10X30 BOLTS (10-0001). BUILD UP MIDDLE SECTION AS PICTURED BELOW PLACING 1QTY BRAND BOX (21-0578) AND SHELF ASSEMBLIES BETWEEN 2QTY UPRGIHTS (21-0036) WITH BOLT ASSEMBLIES AS SHOWN. ENSURE LOGO ON UPRIGHTS ARE FACING OUT.
- Page 4 BOLT 1QTY MULTIGRIP ( 21-0151 ) TO 1QTY FRONT CM ( 21-0583 ) AND ATTACH BETWEEN 2QTY UPRIGHTS (21-0036). CONNECT TO EXISTING ASSEMBLY USING BOLT ASSEMBLY AS SHOWN. ENSURE LOGO ON UPRIGHTS ARE FACING OUT AND BOLTS ARE FACING INWARD. 10.0016 10.0023 x2 10.0028...
- Page 5 ENSURE ALL UPRIGHTS ARE PLUMB AND BOLT TO GROUND USING SLEEVE ANCHOR GUIDE AS SHOWN BELOW. TIGHTEN ALL BOLTS TO 30NM AND ATTACH MAT HANGER (21-0584) AND BAND HOLDER (20-0069) TO SLOTTED CM (21-0582) USING M10X80 BOLTS (10-0006) AND WING NUTS (10-0018). -DRILL 10MM HOLE THROUGH FLOOR COVERING, 90MM...
