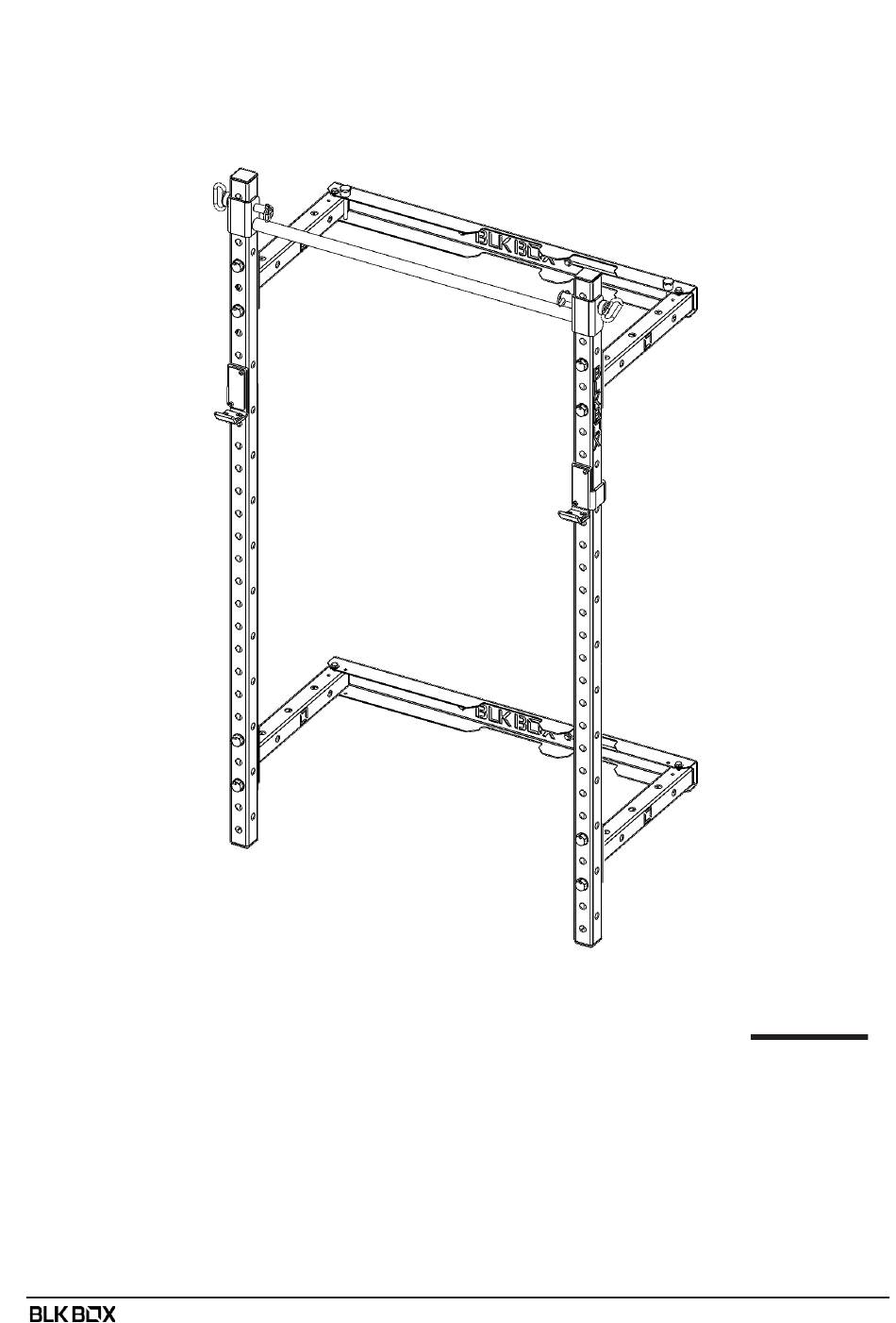

OWNERS MANUAL & QUICK START GUIDE
NOTE : PLEASE READ ALL THE INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

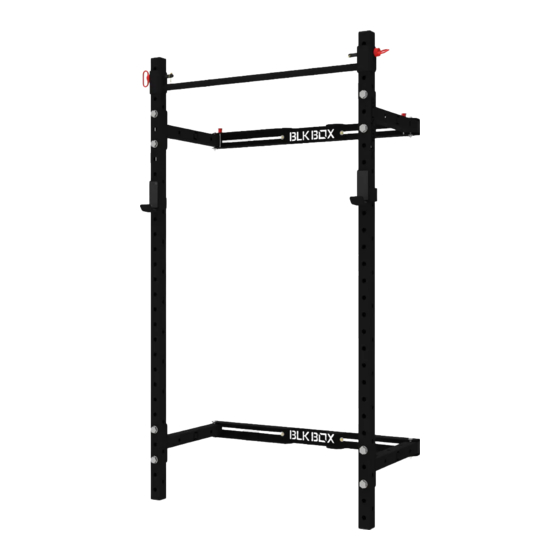

BLK BOX
BINARY RACK
21-0875
PRODUCT WEIGHT
MAX USER WEIGHT
MAX USER
MAX TRAINING
WEIGHT
DIMENSIONS
PRODUCT SPECIFICATION
-
-
-
-
-
628mm x 1450mm x 2212mm
-
2128mm x 2950mm x 3076mm
55kg
125kg
1
200kg
#MADEINBELFAST
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BLK BOX 21-0875
Summary of Contents for BLK BOX 21-0875
- Page 1 BLK BOX BINARY RACK 21-0875 PRODUCT SPECIFICATION 55kg PRODUCT WEIGHT MAX USER WEIGHT 125kg MAX USER OWNERS MANUAL & QUICK START GUIDE 200kg MAX TRAINING WEIGHT 628mm x 1450mm x 2212mm NOTE : PLEASE READ ALL THE INSTRUCTIONS DIMENSIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY MARK THE 8 LOCATIONS FOR THE WALL MOUNTED U- BRACKETS AS SHOWN BELOW. TIP: USE U-BRACKET AS TEMPLATE. 1150mm MAX 400mm MAX 400mm 1929mm 204mm GROUND #MADEINBELFAST...
- Page 4 CHECK THAT THE BRACKETS (20-0703) ARE LEVEL AND ALIGN WITH THE HOLES THAT HAVE BEEN MARKED OUT. DRILL AND SECURE BRACKETS USING SLEEVE ANCHOR GUIDE BELOW. SLEEVE ANCHOR BOLT FITTING -DRILL 10MM HOLE IN WALL, 90MM DEEP USING BRACKET AS A GUIDE. -VACUUM OUT THE DUST.
- Page 5 BOLT 4 QTY BOX CM (21-0551) TO 2 QTY U-BRACKET (20-0703) USING BOLT ASSEMBLY AS SHOWN. ENSURE YOU DON’T OVER TIGHTEN. 10.0067 10.0019 x 2 10.0271 #MADEINBELFAST...
- Page 6 BOLT 2 QTY UPRIGHT (21-0557) TO 4 QTY BOX CM (21-0551). ENSURE THE LOGOS ON UPRIGHTS ARE FACING OUTWARDS AND ALL BOLTS FACING INWARDS. 10.0134 10.0023 x 2 10.0028 #MADEINBELFAST...
- Page 7 ATTACH 1 QTY PULL UP BAR (21-0553) WITH 2 QTY UPRIGHTS USING 2 QTY HITCH PINS (16-0004) #MADEINBELFAST...
