OWNERS MANUAL & QUICK START GUIDE

NOTE : PLEASE READ ALL THE INSTRUCTIONS

CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.

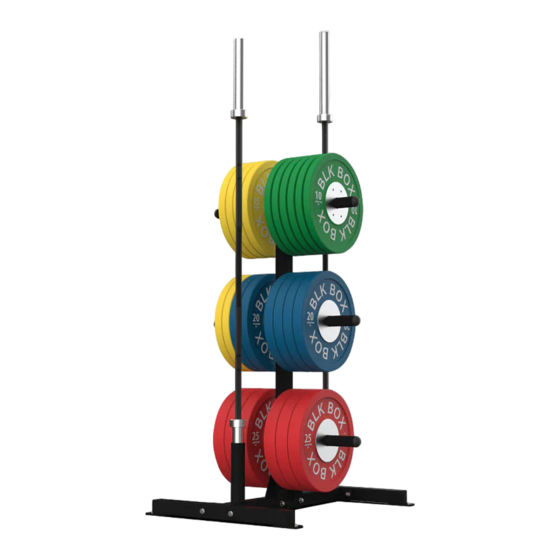

BLK BOX

WEIGHTS TREE

21-0215

PRODUCT WEIGHT

MAX LOAD

DIMENSIONS

SAFE WORKING ZONE

PRODUCT SPECIFICATION

982mm x 1466mm x 800mm

1082mm x 2700mm x 2400mm

#MADEINBELFAST

36kg

500kg

Need help?

Do you have a question about the 21-0215 and is the answer not in the manual?

Page 1 BLK BOX WEIGHTS TREE 21-0215 PRODUCT SPECIFICATION 36kg PRODUCT WEIGHT OWNERS MANUAL & QUICK START GUIDE 500kg MAX LOAD 982mm x 1466mm x 800mm DIMENSIONS NOTE : PLEASE READ ALL THE INSTRUCTIONS 1082mm x 2700mm x 2400mm CAREFULLY BEFORE ASSEMBLING THIS PRODUCT.
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT.
Page 3 ASSEMBLY BOLT 1 QTY WEIGHT TREE CM (21-0254) BETWEEN 2QTY WEIGHT TREE SUPPORTS (21-0252). INSERT WEIGHT TREE UPRIGHT (21-0253) INTO SLOTS PLACE A BRACE PLATE (20-0472) EITHER SIDE. ATTACH ALL BOLTS ASSEMBLES AS SHOWN. ENSURE ALL BOLTS ARE FACING INWARDS AND TIGHTEN TO 30NM. 10.0008 10.0019 x2 10.0024...
Page 4 DRILL HOLES USING FEET PLATE AS GUIDE AND INSERT SLEEVE ANCHORS AS SHOWN. 10.0031 10.0019 #MADEINBELFAST...
Page 5 1:1 SCALE FASTENERS M10x80 SLEEVE ANCHOR 10-0031 M10x90 BOLT 10-0008 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
