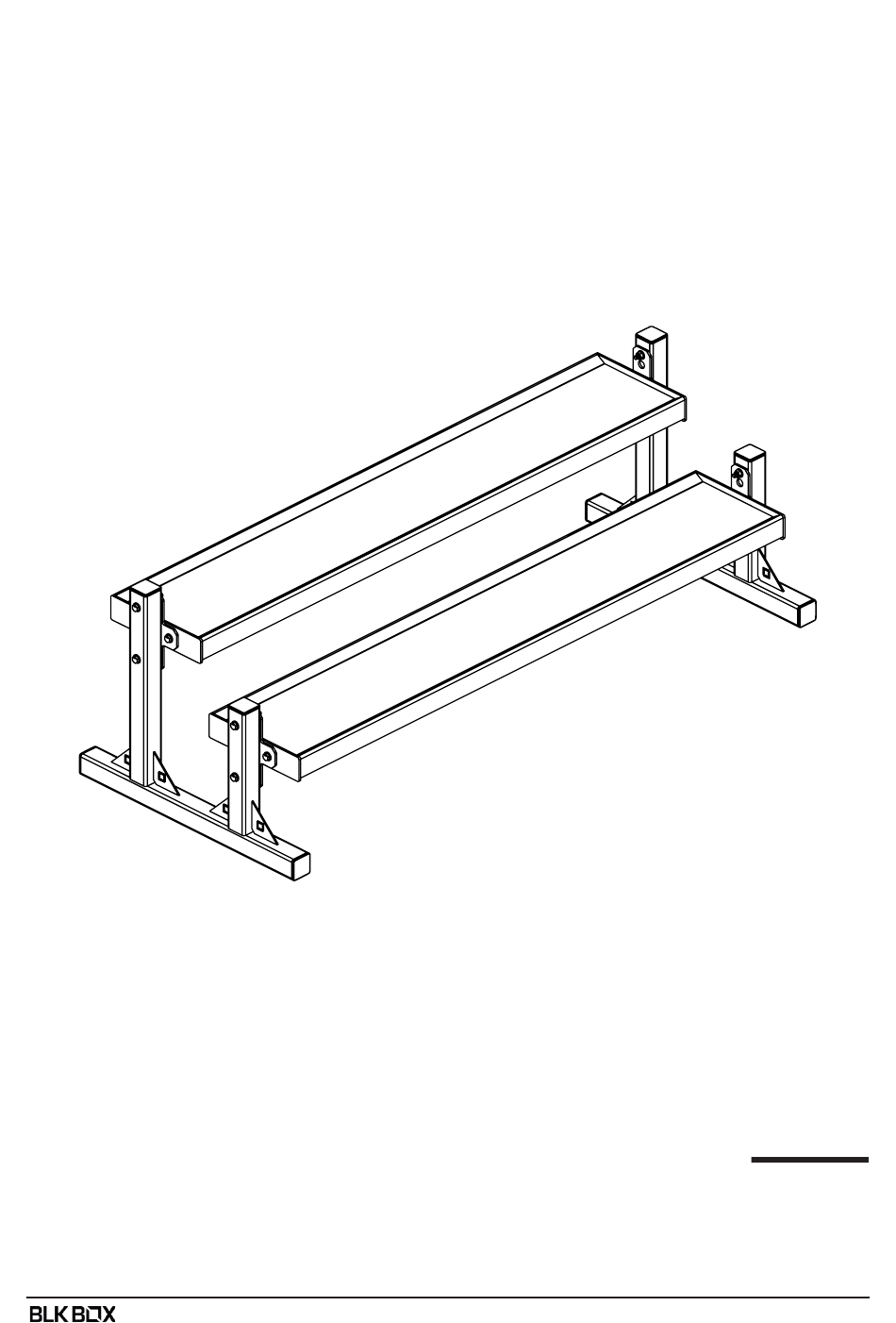

- Page 1 BLK BOX 2 TIER STORAGE 91-0024 PRODUCT SPECIFICATION OWNERS MANUAL & QUICK START GUIDE PRODUCT WEIGHT 70kg NOTE : PLEASE READ ALL THE INSTRUCTIONS DIMENSIONS CAREFULLY BEFORE ASSEMBLING THIS PRODUCT. 1860mm x 750mm x 610mm #MADEINBELFAST...
-
Page 2: Tools Required
WARNING SERIOUS OR FATAL INJURIES MAY OCCUR FROM INCORRECTLY ASSEMBLED EQUIPMENT. ALWAYS ENSURE BOLTS ARE TIGHTENED CORRECTLY AND ALL PARTS ARE LEVEL AND PLUMB. TO FURTHER REDUCE RISK OF INJURIES OR DEATH PLEASE USE OUR SUGGESTED TOOLS AND PERSONAL PROTECTIVE EQUIPMENT (PPE). WE SUGGEST THAT A MINIMUM OF THREE PEOPLE ARE INVOLVED IN THE ASSEMBLY OF THIS PRODUCT. - Page 3 ASSEMBLY BOLT 2QTY FLAT SIDE PLATE (20-0049) TO 1QTY 2 TIER STORAGE LEG LHS (21-0287) AND 21-0288) 2QTY FLAT SIDE PLATE (20-0049) TO 1QTY 2 TIER STORAGE LEG RHS ( WITH BOLT ASSEMBLY AS SHOWN. ALL BOLTS FACING INWARDS. 10-0008 10-0019 10-0024 #MADEINBELFAST...
- Page 4 BOLT 2QTY 1.8 FLAT SHELF (21-0065) BETWEEN 1QTY 2 TIER STORAGE LEG LHS 21-0288) (21-0287) AND 1QTY 2 TIER STORAGE LEG RHS ( WITH BOLT ASSEMBLY AS SHOWN. ALL BOLTS FACING INWARDS. TIGHTEN ALL BOLTS TO SPECIFIED TORQUE. 10-0001 10-0019 10-0024 #MADEINBELFAST...
- Page 5 1:1 SCALE FASTENERS M10x90 BOLT 10-0008 M10x30 BOLT 10-0001 M10 FLAT WASHER NYLOCK NUT 10-0019 10-0024 FOR TERMS AND CONDITIONS VISIT OUR WEBSITE AT www.blkboxfitness.com/pages/terms-conditions GET IN TOUCH TEL: 028 9045 4123 EMAIL: info@blkboxfitness.com DISCOVER MORE AT: www.blkboxfitness.com #MADEINBELFAST...
