Sub-Zero UC-24 Series Service Manual page 8

Component Access/Removal
Evaporator Fan Shroud and Evaporator Cover
(Model UC-24B)
Screws pass though the refrigerator fan shroud and
evaporator cover, then into screw grommet/stand-offs
to secure the shroud and cover to the back wall. The
evaporator cover is further secured by slots in its side
flanges fitting over pegs at the bottom of each shelf lad-
der.
To remove the fan shroud and/or evaporator cover
Figure 7-16):
Fan Shroud Removal
a. Extract the two mounting screws.
b. Pull fan shroud forward, out of compartment.
Evaporator Cover Removal
a. Extract the two mounting screws.
b. Pull fan shroud forward, out of compartment.
c. Remove wine rack cabinet slides and support
spacers from hinge-side wall.
d. Lean top of evaporator cover forward, then lift it
up off of locator pegs at the bottom of each
shelf ladder
Shelf Ladders (Model UC-24B)
The shelf ladders are attached to the side walls with
screws.
To remove a shelf ladder, first remove the cabinet slides
and support spacers from the hinge-side wall, as well
as the fan shroud and evaporator cover. Then, extract
the shelf ladder mounting screws and pull the shelf lad-
der away from side wall and out of compartment.
Figure 7-17)
#7003933 - Revision B - November, 2007
Under Counter (UC-24) Series
(See

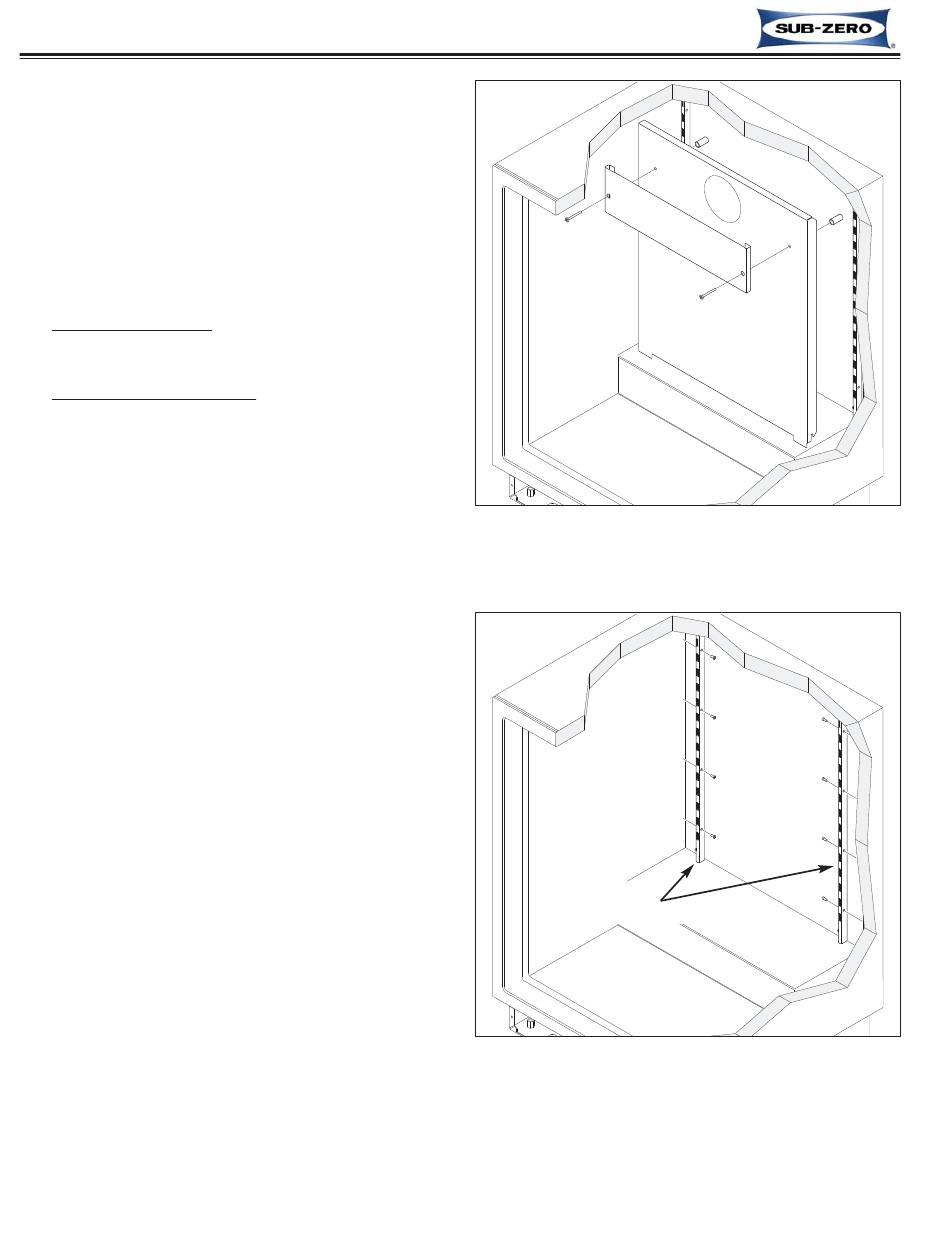

Figure 7-16. Fan Shroud and Evaporator Cover
(See
Shelf Ladders
Figure 7-17. Shelf Ladder Removal
7-8
F a
n S
h r o
u d
E v
a p o
r a t
o r
C o
v e r
