Under Counter (UC-24) Series
MODEL UC-24B INTERIOR COSMETIC AND MECHANICAL COMPONENTS
Wine Rack Assembly (Model UC-24B)
To remove a wine rack assembly
1. Pull rack forward until it stops.
2. Lift front of rack up while continuing to pull forward.
3. After indentations on the wine rack clear the rollers
on the cabinet slides, lower front of rack while con-
tinuing to pull forward and lifting rear of rack.
Cantilever Shelf (Model UC-24B)
The cantilever shelf has hooks at the back of each side
rail that hook into the slots of the shelf ladders that are
attached at the back left and right corners of the cabi-
net.
To remove the cantilever shelf, lift it up at the front, then
lifting the hooks at the back up and out of the shelf lad-
der slots (See Figure 7-8).
To reinstall, tilt the front of the shelf up, align the hooks
at back with the slots in shelf ladders, then insert hooks
into slots and lower front of shelf.
Cabinet Slide, Spacer and Support Spacer
(Model UC-24B)
Cabinet slides are attached to the side walls with
screws. If on the handle side of the compartment, a
small plastic spacer sits between the front of the slide
and the side wall. If on the hinge side, a wide plastic
support spacer is attached between the slide and the
wall.
To remove a cabinet slide, extract the mounting screws
and pull the slide and spacer, or slide and support spac-
er from the wall (See Figure 7-9).
(See Figure 7-7):
7-5
Component Access/Removal

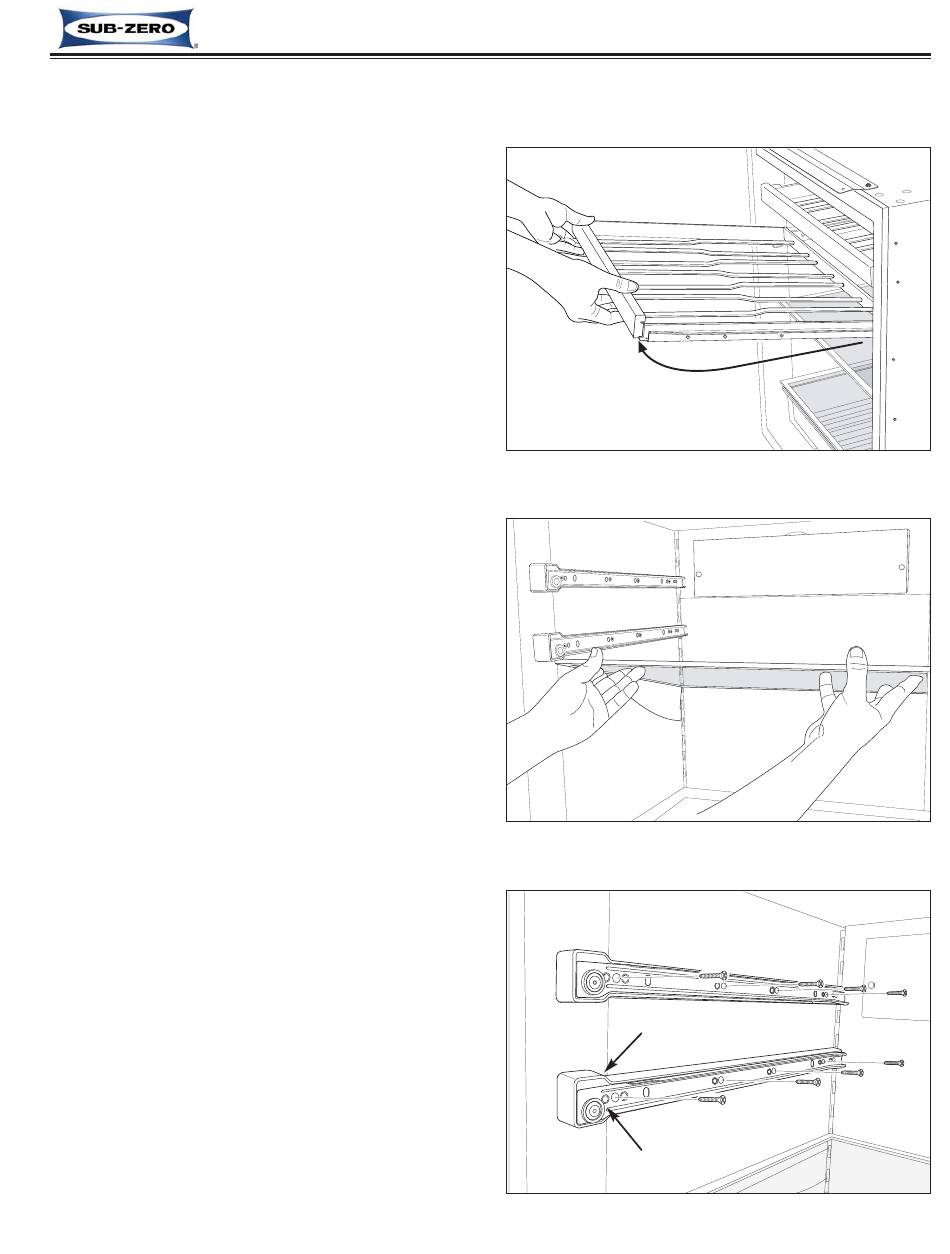

Figure 7-7. Wine Rack Removal
Figure 7-8. Cantilever Shelf Removal
Support Spacer
Slide
Figure 7-9. Cabinet Slide and Support Spacer
#7003933 - Revision B - November, 2007
