Sub-Zero UC-24 Series Service Manual page 26

Component Access/Removal
Stainless Steel Door Handle (Model UC-24RO ONLY)
A screw passing through the handle standoff into the
handle secures the handle to the standoff. The standoff
then slides over a threaded stud that is attached to the
door shell. A socket head set-screw inserted through
the bottom of the standoff secures the standoff to the
stud.
To remove a handle assembly
1. Use a 3/32" Allen-wrench to loosen the set-screw in
each handle standoff.
2. Pull handle assembly off of the threaded studs.
NOTE: To remove the handle from the standoffs,
extract the handle mounting screws.
Door Gasket (Models UC-24R, UC-24RO)
An extruded dart at the back of the door gaskets is
pressed into retaining channels that are molded into
door liner.
To remove the door gasket, pull the gasket from the
retaining channels (See Figure 7-66).
Door Shelf Components (Models UC-24R, UC-24RO)
The door shelf retainers fits into notches in the retainer
clips that are attached to the door dikes with screws.
To remove a door shelf components
1. Flex shelf retainer outward in the middle, disengag-
ing it from retainer clips.
2. Extract retainer clip mounting screws and pull
retainer clip from dike.
#7003933 - Revision B - November, 2007
Under Counter (UC-24) Series
(See Figure 7-65):
(See Figure 7-67):
Handle Mount Screw
Cut-Away
Cut-Away
V iew of
V iew of
SS Handle SS Handle
Components
Components
Handle

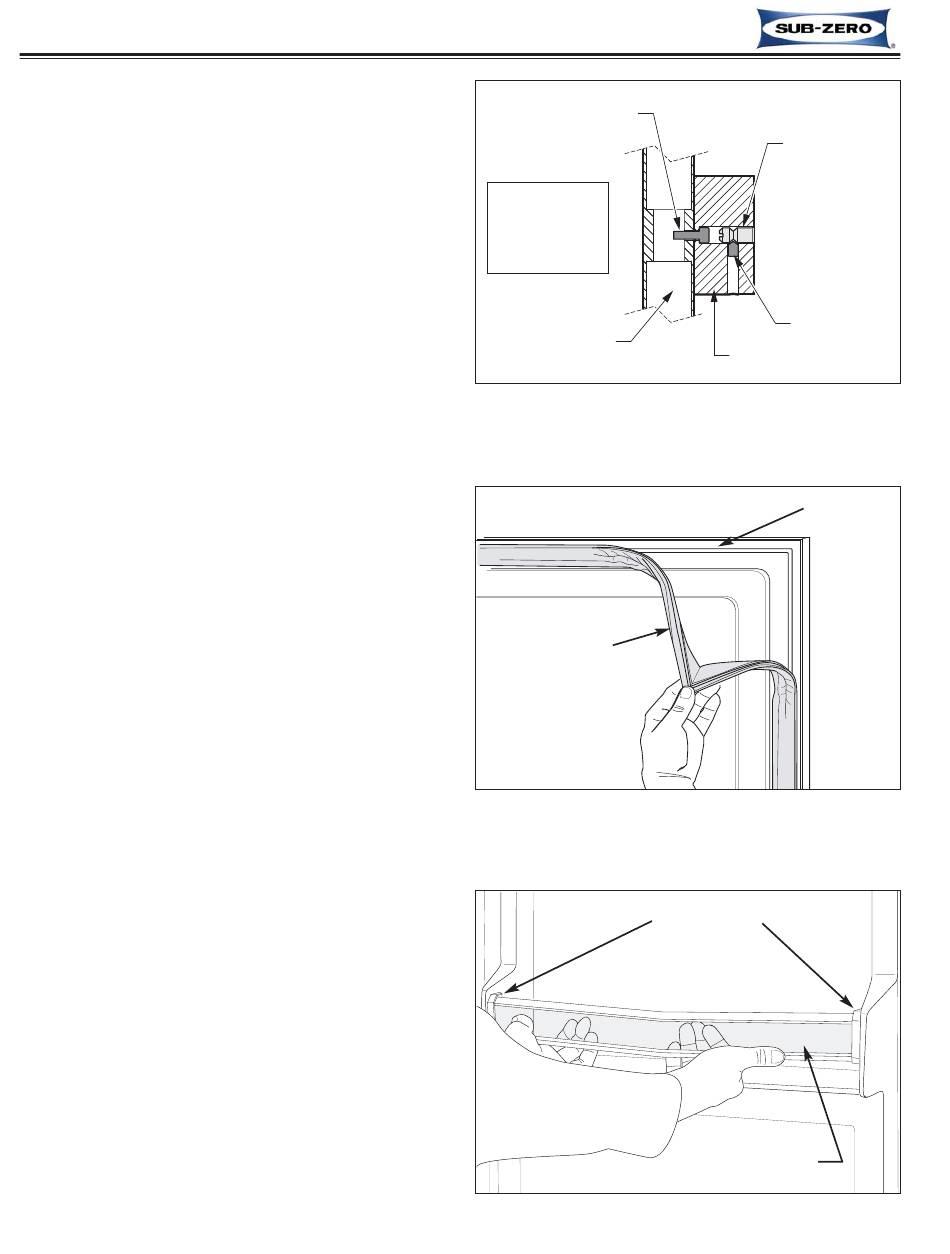

Figure 7-65. Stainless Steel Handle Removal
Door Gasket
Figure 7-66. Gasket Removal
Figure 7-67. Door Shelf Components
7-26
Threaded Stud
Set-Screw
Handle Standoff
Channel
Retainer Clips
Shelf Retainer
