Planning Information
Undercounter Model UC-24B
Beverage Center

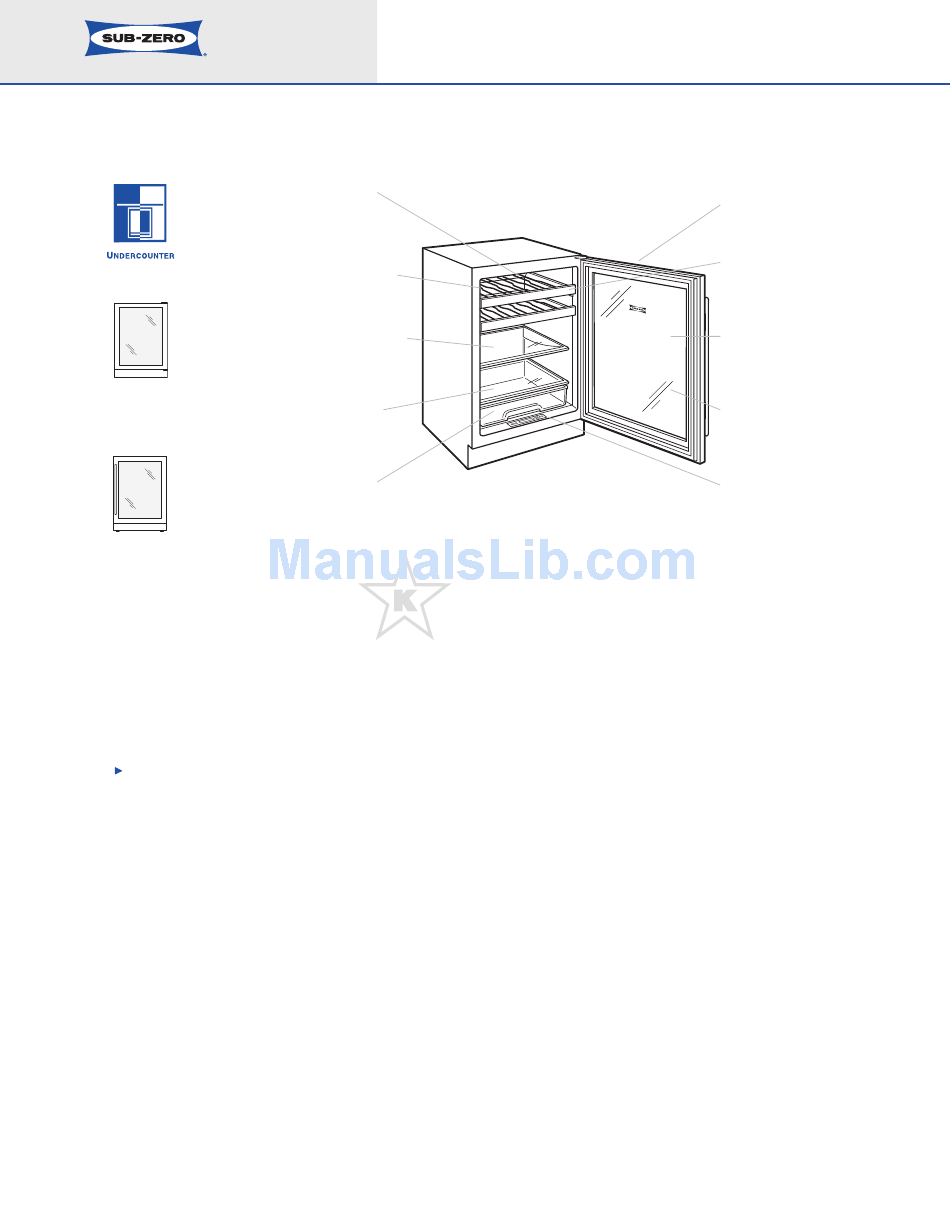

Accent lighting
Location of rating/
serial number plate
Spill-proof cantilever
glass shelf
Model UC-24B/O
Overlay
Spill-proof glass
floor
Clear utility bin
Model UC-24B/S
Classic Stainless
Steel
The Sub-Zero Undercounter all
refrigerator Model UC-24B, with full-view
glass door, is available in your choice of
the overlay or classic stainless steel
design application. A high altitude glass
door unit may be special ordered for
installations at or above 5,000' (1524 m)
in elevation.
Dimensions in parentheses are in
millimeters unless otherwise specified.
2/07
This appliance will be certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
S
ub-Zero Undercounter units simplify life at home by
bringing refrigeration anywhere it's needed. Fresh
greens in the kitchen island. Soda and snacks in the
media room. Chilled wine and mineral water in the
master suite. Imagine how this innovative built-in unit
can serve you.
The all refrigerator Model UC-24B, with full-view glass
door, can be ordered in the overlay or classic stainless
steel design.
The Model UC-24B offers more features than ever.
The easy-access electronic controls with LCD display
are visible through the glass door. Two wine storage
shelves hold 16 (750 ml) bottles and a clear utility bin
stores smaller items.
Overlay or classic
stainless steel design
Wine storage
shelves
Matches appearance
of Wine Storage
Model 424
Double-pane glass
door
Easy-access
electronic controls
1
