Synthes Codman Neuro DirectLink Manual page 9

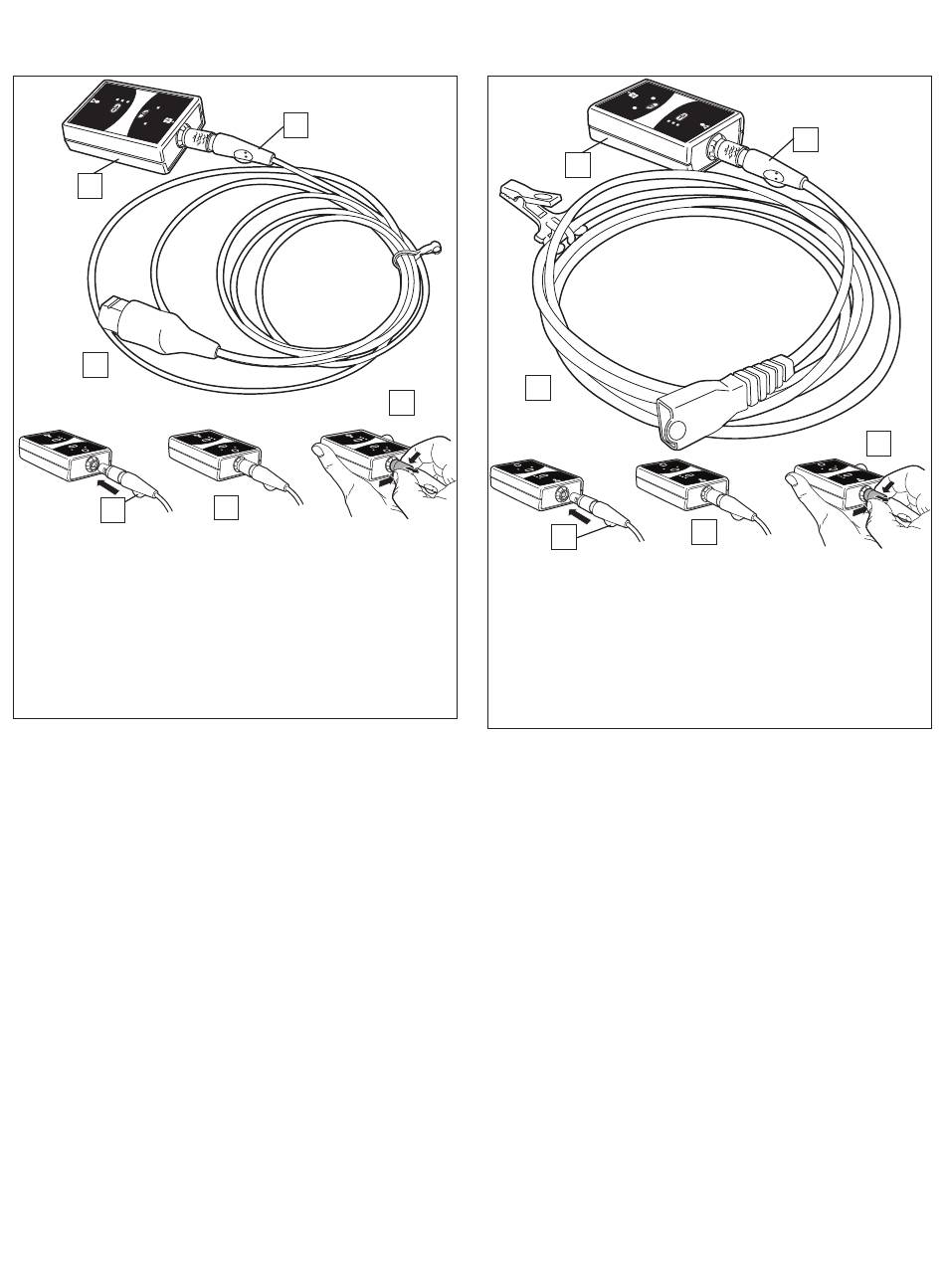

Figure 2
A
C
C1
A. DirectLink Module
B. Patient Monitor Interface
Cable
C. To attach the cable, hold the
connector so that the "fin"
points downward before
pushing into module.
C1. Fin
B
E
D
D. Cable correctly attached to
the module
E. To detach the cable,
squeeze the strain relief and
then retract it. Next, pull the
cable away from the module.
Figure 3
A
C
C1
A. DirectLink Module
B. ICP Extension Cable
C. To attach the cable, hold
the connector so that the
"fin" points downward
before pushing into
module.
C1. Fin
9
B
E
D
D. Cable correctly attached to
the module
E. To detach the cable,
squeeze the strain relief
and then retract it. Next,
pull the cable away from
the module.
