Installation guidelines for the POWERLINE RT PLUS 6-10 kVA unit

ELECTRICAL SYSTEM

Prepare the electrical system according to the diagram shown in Fig. 1.

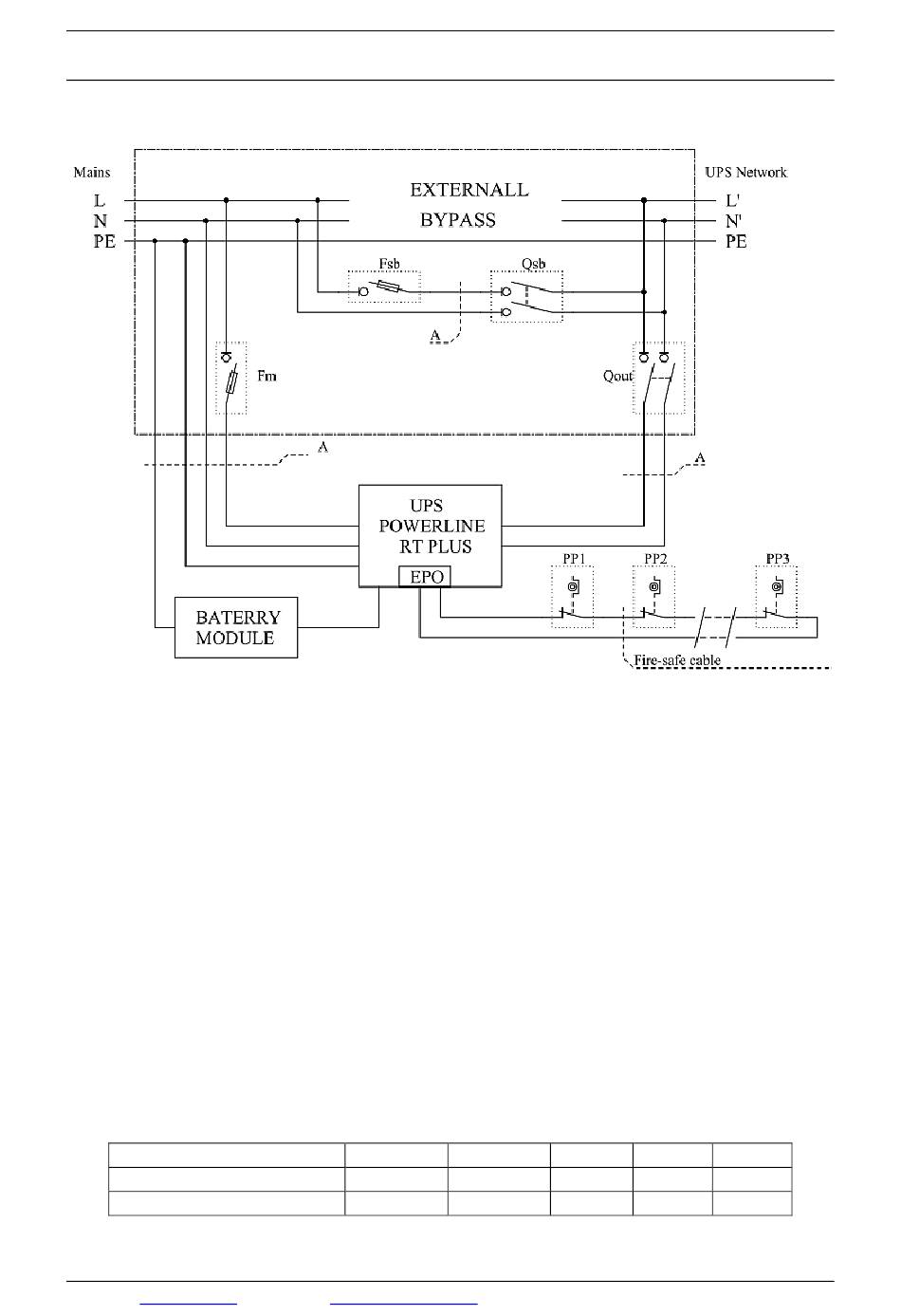

Figure 1. Installation diagram of the POWERLINE RT PLUS 6-10 kVA UPS
Installation diagram symbols:
Fm, Fsb – Switch fuses,
Qout, Qsb – Switch disconnectors,
PP1, PP2, PP3 – Emergency power-off (EPO) push-buttons,
A– Connection wires.
The list of safeguards and wire sizes used in specific locations for specific UPS
models is shown in Table 2.
Table 2. Safeguards and wire sizes.
MODEL
POWERLINE RT PLUS 6 kVA
POWERLINE RT PLUS 10 kVA
7
www.ever.eu
Fm
Fsb
32 A gG
32 A gG
50 A gG
50 A gG
Pomoc Techniczna,
tel.: +48 61 6500 400
Qout
Qsb
32 A
32 A
4 mm
50 A
50 A
10 mm
A
2
2
