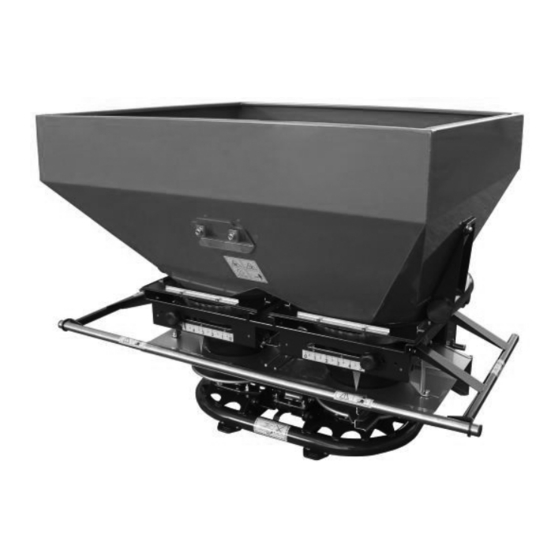

  • Page 1 MANUALE D’UTILIZZO DELLE MACCHINE ELETTRONICHE CIRO E/EW EN - USE AND MAINTENANCE - OPERATOR'S MANUAL Translation of the original instructions MACHINES CODES: EOM99041 - EOM99042 EOM99043 - EOM99044 MANUAL CODE: EOM0110OM^EN EDIZIONE: 01/2019...
  • Page 2 ISTRUZIONI PER L’OPERATORE INDEX FOREWORD Pag. 2 SERVICE DATA Pag. 2 SAFETY RULES Pag. 3 ELECTRONIC SYSTEM Pag. 6 PROCEDURE TO CALCULATE THE WEIGHT IN THE HOPPER WHEN SPECIFIC WEIGHT IS GIVEN Pag. 8 SPREADING CHART FOR ELECTRONIC MACHINES Pag. 10 SPREADING OPERATION FOF ELECTRONIC MACHINES Pag.
  • Page 3: Electronic System

    ISTRUZIONI PER L’OPERATORE 3. ELECTRONIC SYSTEM The electrical cables must be connected as shown below. In order to ensure protection against water and correct operation, be sure to connect the connectors correctly. The system power connector (J4) must be connected to the appropriate socket on the tractor.
  • Page 4 ISTRUZIONI PER L’OPERATORE GP antenna Below it is illustrated the procedure for connecting and configuring the GPS antenna (optional accessory). This component is used to detect the tractor's forward speed and transmit it to the electronic system. It is advisable to position the GPS antenna on the top of the tractor cabin, thanks to the magnetic base, in order to obtain an optimal signal.
  • Page 5 ISTRUZIONI PER L’OPERATORE The electronically controlled machine can also be combined with a compatible ISOBUS monitor for the management of prescription maps and automatic section control. In order to get information regarding the cables to be used, the possibility of connection and for the connection of the two devices, contact the manufacturer or local retailer.
  • Page 6 ISTRUZIONI PER L’OPERATORE Procedure to Calculate the Weight in the Hopper When Specific Weight is Giv- en (only for electronic machines without weighing system) It is necessary to fill it with the maximum possible precision up to the “1000” reference (that indicates the known volume of 1 litre) with the same fertilizer that will be used.
  • Page 7 ISTRUZIONI PER L’OPERATORE Compute the correction factor: (starting theoretical weight - ending theoretical weight) = theoretical spread weight Calculation of effective kg spread by means of the graduated scale in the hopper: (starting real volume - ending real volume) * Specific weight = real spread weight Make the following calculation: Theoretical spread weight = correction factor Real spread weight...
  • Page 8 ISTRUZIONI PER L’OPERATORE Repeat the previous procedure if it is necessary during the job. For the computation it is easier to use integer values for worked hectare. In case of reuse in the future of that fertilizer table, the correction applied remains stored in memory for that table.
  • Page 9 ISTRUZIONI PER L’OPERATORE Since it is not possible to insert the entire name of the products inside the monitor, the abbreviated name and the complete name are given below. FERTILIZER NAME NAME ON THE MONITOR Calcium Carbonate Calc Carb Potassium chloride 60% Cloru Pot Entec 13-10-20 Entec 13...
  • Page 10 ISTRUZIONI PER L’OPERATORE 6. Spreading Operation Take notice: Pay close attention to the fertilizer producer’s instructions, safety and technical sheets. Improper use of fertilizers can cause serious damage to people, animals, crops, soil and can cause water pollution. • After choosing the spreading width (passage), tractor speed, type of fertilizer, quantity to spread, the electronic system opens correctly the shutters.
  • Page 11 ISTRUZIONI PER L’OPERATORE 7. TROUBLE SHOOTING CHART (only for electronic machines) PROBLEM CAUSE The spreader does not open at Likely anomaly of linear actuator. With empty hopper move linear the selected opening position actuator (see pag. 36 of Display User manual section Diagnostics).
  • Page 12 GASPARDO-MASCHIO TURCHIA Tel. +39 0434 695410 Ph. +1 563 659 6400 Tel. +40 257 307030 MASCHIO-GASPARDO CINA Fax +39 0434 695425 Fax +1 563 659 6405 Fax +40 257 307040 MASCHIO-GASPARDO INDIA info@gaspardo.it info@maschio.us info@maschio.ro Research & Development MASCHIO GASPARDO S.p.A.
