Summary of Contents for Zimmer Z Lipo

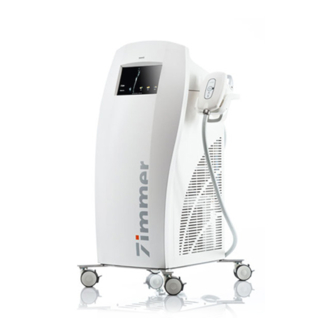

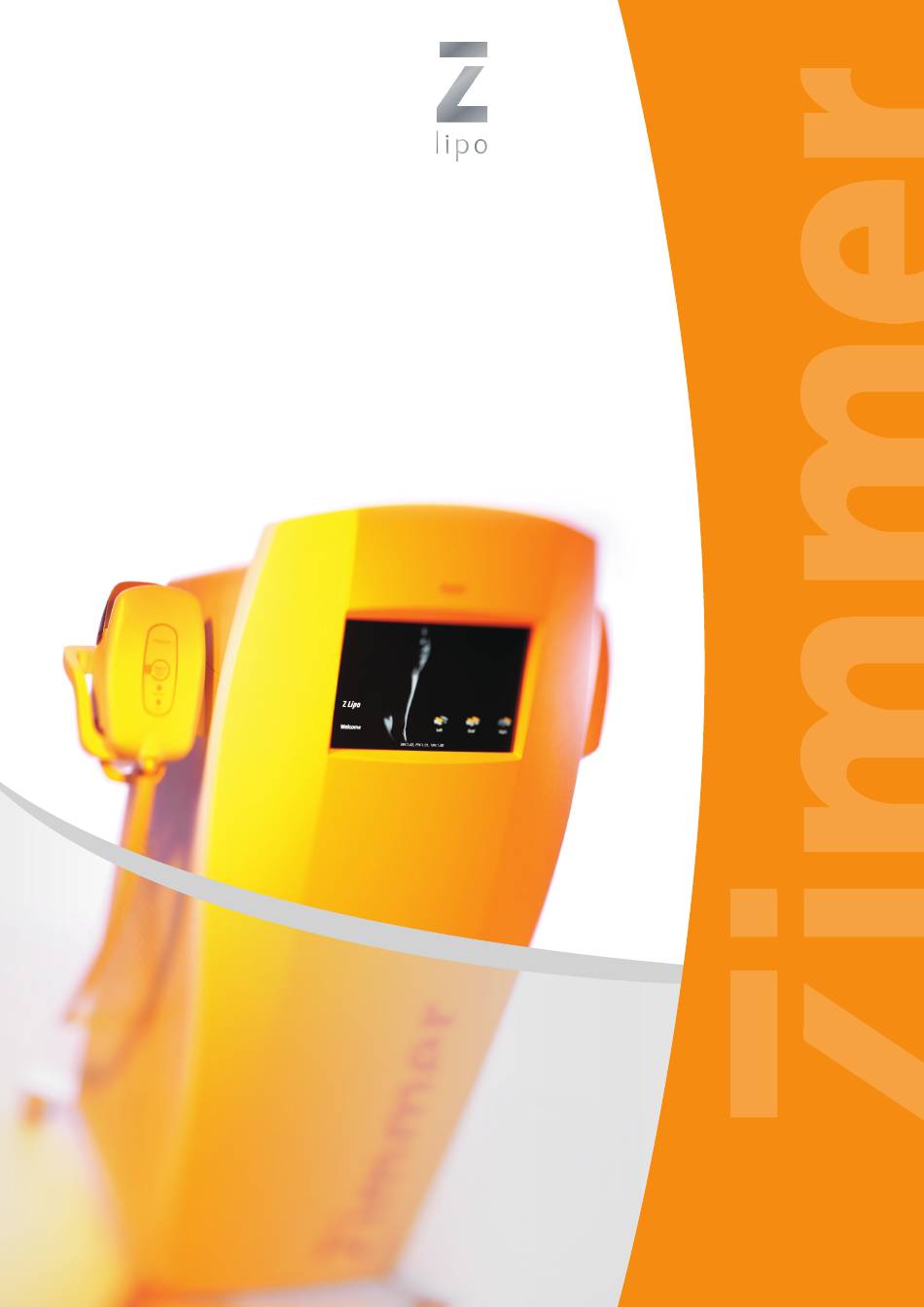

  • Page 1 Instructions for Use ZLipo...
  • Page 3 Figure Front panel Fig. 1 Display Applicators...
  • Page 4 Figure Rear panel Fig. 2 Applicator connections Door release Fuses Power switch and socket for power cable...
  • Page 5 Figure Applicators Fig. 3 Applicator head Applicator hose Applicator connector Fig. 4 applicators available in 4 sizes...
  • Page 6 Explanation of symbols In the operating instructions, this symbol indicates danger. In the instructions for use, this symbol indicates Warning "danger" of possible damage to the device. Applied part type BF Follow instructions for use. Products marked with the adjacent symbol must not be disposed of with household waste.

  • Page 7: Table Of Contents

    Contents Figures Front panel Rear panel Applicators Explanation of symbols Page Application areas/Contraindications/Side effects Application information Warnings ZLipo - in brief Device setup 5.1 Preparation of the site 5.2 Setup the device Basic settings Operating instructions Technical information...
  • Page 8 Contents Page Cleaning/disinfection Scope of delivery and accessories Safety and maintenance 11.1 Safety 11.2 Maintenance Function test Error messages/troubleshooting/disposal Certificate of conformity Valid for the ZLipo device. These operating instructions are an integral part of the device. They must be stored with the device and be accessible at all times to anyone authorised to operate the device.

  • Page 9: Application Areas/Contraindications/Side Effects

    Application areas/ Contraindications/Side effects Application ● Fat deposits on the abdomen areas ● Fat deposits on the hips ("love handles") ● Fat deposits on the upper and lower back ● Fat deposits on the thighs and knees ● Fat deposits on the upper arm ("bingo wings") ●...

  • Page 10: Application Information

    To prevent the risk of electric shock; the device's main plug must be disconnected Warning from the mains supply before performing any maintenance or cleaning activities. Only use accessories from Zimmer MedizinSysteme GmbH. Warning Operation of the device may interfere with the strong electromagnetic fields of other Warning devices.
  • Page 11 Application information Treatment with ZLipo Inspect the device before use. If there is any damage, do not use the device. Ensure that the handpieces are clean inside and outside. Particular attention must be paid to the peltier elements and the vacuum hole. Clean and disinfect the handpieces before each treatment.

  • Page 12: Warnings

    Warnings ZLipo is a cold fat reduction device for aesthetic treatments. The device emits high cooling energy that can damage the skin with excessive use. All cooling units may cause skin injuries with non-proper use. Be aware of the potential danger at all times and follow the safety instructions as described in this manual.

  • Page 13: Zlipo In Brief

    ZLipo in brief What is ZLipo? An ultra-modern, innovative cryolipolysis device for reducing fat cells. Since triglycerides are solid in fat at low temperatures, ZLipo uses advanced cryotechnology to selectively treat fat bulges and thereby initiate the elimination of fat cells without damaging the surrounding tissue. What does ZLipo do? A non-invasive applicator is attached to the desired area, extracting the energy from the underlying fatty tissue and protecting the skin, nerves, muscles and other...

  • Page 14: Device Setup

    Device setup 5.1 Preparation of the site Note: Do not expose the unit to direct sunlight. Operate the device at room temperatures between 10-24°C and humidity of 30-75%. Do not place the unit near radiators or air conditioners. Note: Make sure that the power switch is set to "0" on the device. Site preparation When the device is being started up, the operator should observe the spatial and electrical requirements and the transport and storage conditions.

  • Page 15: Setup The Device

    Device setup 5.2 Setup the device Pluging in the power Connect the power cable to the corresponding socket (6) on the device and connect cable the cable to the mains. Note: The device may only be connected to earthed sockets. Note: All cables must be protected against jamming or other mechanical damage.
  • Page 16 Device setup 5.2 Setup the device During the first installation, the entire system needs to be filled with distilled water. Start the unit for 30 seconds (without selecting a treatment) and then fill again up to the red mark. This procedure must be repeated for each handpiece when connected for the first Warning time.

  • Page 17: Basic Settings

    Basic settings Start-up screen After turning it on, the ZLipo performs a self-test. During the test, the current status Self test of the pre-cooling can be read. Choice of applicator If pre-cooling is complete, the left, right or both (dual) applicators can be selected. Note: Treatment can, depending on the treatment area, be performed with just one applicator (left or right) or with two applicators simultaneously.
  • Page 18 Basic settings Programme screen (in Auto-mode) (1) Selected applicator The selected applicator (left, right or both) is displayed in orange. The applicator can be changed by pressing the corresponding button. (2) Treatment time Displays the remaining treatment time. (3) Temperature Displays the temperature of the applicator.
  • Page 19 Basic settings Adjusting the phases By selecting one of the three phases, a selection window opens in which the phases (in Auto-mode) can be defined. The structure and first phase setting will be explained below. The other two phases are constructed analogously. (1) Pulsing The vacuum can be selected unpulsed or with 3 different pulses.
  • Page 20 Basic settings Programme screen (in manual mode) (1) Selected applicator The selected applicator (left, right or both) is displayed in orange. The applicator can be changed by pressing the corresponding button. (2) Treatment time Displays the remaining treatment time (3) Temperature Displays the applicator temperature (4) Vacuum intensity Displays vacuum intensity.
  • Page 21 Basic settings Adjusting the phases (in manual mode) (1) Temperature The applicator temperature can be selected between -10°C and 5°C. By pressing the arrow keys the temperature can be increased or decreased. (2) Treatment time The treatment time is adjusted by pressing the arrow keys. Note: The treatment time is limited to a maximum of 60 minutes.

  • Page 22: Operating Instructions

    Operating instructions Note: The following recommendations serve only as a guide and must be adapted to the individual needs of the patient! Note: Only personnel who have been trained should be granted access to the treatment room. Note: Always use the cooling fleece during treatment to protect the area being treated and to increase effectiveness.

  • Page 23: Technical Information

    Technical information Basic unit Power supply 110 V or 220 - 240V, 50 or 60 Hz (see label), max. 1200 VA Fuse 2xT10AH (220 – 240 V) resp. 16A circuit breaker in Mains switch (110V, 220 – 240 V) Protection class Vacuum max.

  • Page 24: Cleaning/Disinfection

    Cleaning Disinfection Note: Always keep the device and the handpieces clean in order to obtain the best possible results. Before any maintenance or cleaning, the device must be switched off with the main switch and the power cable must be unplugged. Cleaning the unit during operation can be dangerous for the user and/or device.
  • Page 25 Cleaning Disinfection Housing/Cables In the case of visible contamination, the housing and all cables can be cleaned using commercially available alcohol-free cleaning agents designed for plastic. Wipe the surface with a soft cloth soaked in the cleansing agent (but not dripping) according to the manufacturer’s instructions until the dirt is removed.

  • Page 26: Scope Of Delivery And Accessories

    Scope of delivery and accessories Scope of delivery Art.- No. 5190 ZLipo 58000410 Medium-sized applicators 58000500 20 Cooling fleeces Power cable 10102366 Instructions Accessories Art.- No. 58000400 Small applicator 58000410 Medium-sized applicator 58000420 Large applicator 58000559 Mini applicator 58000510 Pack of 25 cooling fleeces 58000560 Pack of 50 cooling fleeces “mini”...

  • Page 27: Safety And Maintenance

    Foreign accessories may not be connected to the device. Do not use a damaged cable. As manufacturer, Zimmer MedizinSysteme GmbH shall only be held responsible for the safety and reliability of the device if • the device is operated using a proper power outlet with earthing and the electrical installation complies with DIN VDE 0100 part 710, •...

  • Page 28: Maintenance

    Safety and maintenance 11.2 Maintenance Air filter The two air filters should be checked monthly and cleaned when dirty. Open the door at the back of the unit by moving the black slider to the right. To release the air filter, slide the black slider down and move the air filter to the left towards the open lock.

  • Page 29: Function Test

    Function test If in doubt as to the proper functioning of the device, a function test should be carried out. Note: Before performing the function test, verify that the applicators are correctly connected to the device. Check the power cord is properly connected to the device and the mains connection is established.

  • Page 30: Error Messages/Troubleshooting/Disposal

    Error messages Troubleshooting Disposal Error message Lack of water first warning If this symbols appears on the left side of the screen bar, there is a shortage of water in the unit. Please fill with distilled or deionised water as described in chapter 5. second warning If, after the first warning (see above), no water is supplied, this symbol appears after 24 hours of operation.
  • Page 31 Error messages Troubleshooting Disposal Error message Handpiece temperature The handpiece temperature is not properly regulated. Please change the handpiece. If treatment is being performed using two handpieces, treatment can be continued using the intact handpiece. Error code (left/right): 0: normal 1: error Error message Water pump...
  • Page 32 Error messages Troubleshooting Disposal Headquarters Zimmer MedizinSysteme GmbH Junkersstraße 9 89231 Neu-Ulm, Germany Tel. +49 731 / 9761-0 Fax +49 731 / 9761-118 info@zimmer.de www.zimmer.de Disposal The device may only be returned to the factory in its original packaging. It must only be disposed of via the factory in Neu-Ulm.

  • Page 33: Certificate Of Conformity

    Certificate of conformity EC-Declaration of Conformity for the cooling device for fat reduction ZLipo We declare under our sole responsibility, that the device ZLipo, REF 5190 confirms to the following requirements: Directive 2014/35/EU (Low Voltage Directive, LVD), Official Journal of the European Community, •...
  • Page 36 Instructions for Use Zimmer MedizinSysteme GmbH Junkersstraße 9 89231 Neu-Ulm, Germany Tel. +49 7 31. 97 61-291 Fax +49 7 31. 97 61-299 export@zimmer.de www.zimmer-aesthetics.com...
