  • Page 1 User Manual emFieldPro...
  • Page 3 The emFieldPro is a non-invasive therapeutic device. The device produces a magnetic field that interacts with the tissues of the human body. By muscle stimulation, the emFieldPro helps to strengthen tone and firm the abdomen, buttocks and thighs. User Manual Rev.3...

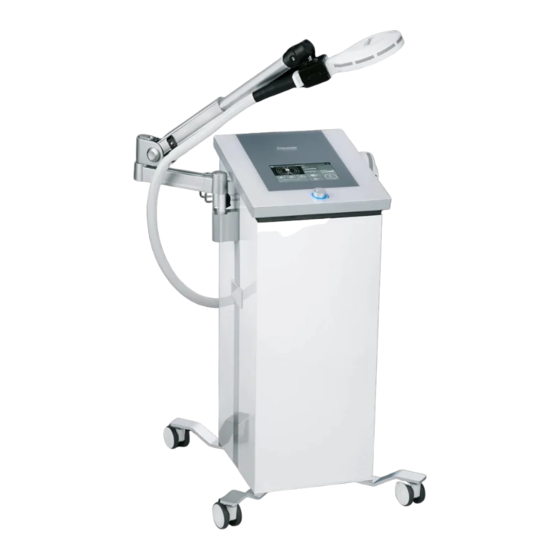

  • Page 4 Illustrations Front of the device Fig. 1 Front of the device 1 Applicator (large) 2 Applicator holder 3 Applicator arm 4 Applicator (small) 5 Display 6 Central control knob 7 Control unit 8 Swiveling wheels User Manual Rev.3...
  • Page 5 Illustrations Rear of the Device Fig. 2 Rear of the device 9 Outlet for applicator tube 10 Ventilation grid 11 Power connector 12 Power switch 13 Serial no / Identification plate User Manual Rev.3...
  • Page 6 Illustrations Screens and Displays Fig. 3 Screens and displays 14 Time remaining 15 Total operation time 16 Configuration icon 17 Intensity in % 18 Start/Stop 19 Channel selector (CH1 or CH2) 20 Mode selector (Programs / Favourites) 21 Program information screen User Manual Rev.3...
  • Page 7 Illustrations Accessories Mains cable Hex key User Manual Rev.3...

  • Page 8: Explanation Of Symbols

    Explanation of Symbols In the instructions for use this symbol indicates “Generic Caution” with regard to indicate a hazardous situation. In the instructions for use this symbol indicates "Caution" with regard to possible Caution damage of the device. This symbol indicates in the instructions for use for dangers to patient, user or third. Applied part BF Consult Instructions for Use Please refer to the notes...
  • Page 9 Explanation of Symbols Packaging unit Serial number Catalog Number Manufacturer Date of manufacture Disposal of electrical and electronic equipment as well as used batteries and accumulators. This product must not be disposed of with household waste. User Manual Rev.3...

  • Page 10: Table Of Contents

    Contents Basic features of the device Illustrations Front of the Device Rear of the Device Screens / Displays Explanation of Symbols Page Indications / Contraindications Possible Side Effects and Adverse Events Application Information Warnings Device Set Up 5 - 6 Settings 7 - 8 Operation Instructions...
  • Page 11 Manufacturer’s EMC Declaration 24 - 27 Valid for emFieldPro devices This instructions for use is an integral part of the device. It must be stored with the device and kept accessible at all times for anyone authorized to operate this device.

  • Page 12: Indications / Contraindications

     Be ensured that magnetic stimulation doesn’t penetrate the heart region.  The emFieldPro should be used with caution in persons with Grave’s disease, active bleeding disorders or seizure disorders.  Women who are close to menstruation may find that it comes sooner or cramping is increased / intensified with emFieldPro treatments, therefore we recommend not undergoing treatment during this time of the month.

  • Page 13: Possible Side Effects And Adverse Events

    Possible Side Effects and Adverse Events The adverse effects may include, but are not limited to:  Muscular pain  Temporary muscle spasm  Temporary joint or tendon pain  Local erythema or skin redness Page 2 User Manual Rev.3...

  • Page 14: Application Information

    The emFieldPro is not suitable for use in areas with an oxygen rich, explosive, flammable or combustive environment. Inspect the device before to use. If there is any damage, it must not be used.

  • Page 15: Warnings

    Warnings Users of the emFieldPro must be trained in how to use the device properly and have the appropriate skills. During the therapy, do not place any ferromagnetic or metallic materials, data carriers or (credit or debit cards, USB flash drivers etc.), electronic devices (mobile phones, tablets, watches, PCs etc.) and other device applicators or accessories in...

  • Page 16: Device Set Up

    ‘locked’ position. Note Make sure that the emFieldPro is placed on a stable and flat surface Connect mains cable 2. Connect the mains cable (22) to the socket as shown below on the device (11) and connect it to the mains.
  • Page 17 Device Set Up 5. After using the emFieldPro for a long time, the applicator arm may be stuck down or up. In this case, the position of the applicator arm can be changed by adjusting the gas spring pressure. To lower the arm supporter, turn the hexagonal wrench bolt in the () direction as shown in the figure below, and turn it in the () direction to lift...

  • Page 18: Settings

    1. Once the device has been switched on and the self-test performed, the start- up screen opens. Standard screen 2. After the self-test has been performed, the emFieldPro turns automatically in the standard screen. Selecting configuration 3. Pressing the Configuration button (See ‘A’ on image above) the software switches to the configuration menu.
  • Page 19 Settings Configuration menu (B) Brightness Adjust the brightness of the display by using the left and right arrows. (C) Volume Adjust the volume of the audible signal by using the left and right arrows. (D) Language Selection of the language by using the left and right arrows (E) Version Shows information about the current software version (F) Close...

  • Page 20: Operation Instructions

    Operation Instructions Device description: The emFieldPro consist of a main body and 2 applicators connected to it. The rated power for this equipment is 100-120 V AC 220-240V AC Repair, expansion, and installation of equipment shall not be performed by anyone other than the specialized personnel authorized by the manufacturer.
  • Page 21 Operation Instructions Applicator placement You can adjust the position and angle of the applicator according to the patient and the stimulation area. The applicator arm can be moved up and down and left and right. The angle of the applicator can be adjusted using the applicator holder. The height of the applicator arm is adjusted by the weight of the applicator using gas spring pressure.
  • Page 22 Operation Instructions Start screen / General Treatment Screen Selected program is shown Program information screen Time remaining Total operation time Configuration button Intensity in % Start / Stop Channel selector (CH1 or CH2) Mode Selector (Programs / Favourites) Selected Program (G) Information Screen If Program is selected: this screen shows an animation.
  • Page 23 Operation Instructions and applied energy. (M) Channel Selector Select either CH1 (Large applicator) or CH2 (Small applicator). The color of the button indicates that the channel has been darkened as active. (N) Mode Selector The Programs mode is preset with parameter values while the Favourites are using configurable programs.
  • Page 24 Operation Instructions Program Screen When the user presses the program button the user can select one of the 5 programs by moving the rotary knob. The selected program is shown in the display. Selected program is shown 1. Select the program 2.
  • Page 25 Operation Instructions Favourites Screen When entering the favourite screen the screen below appears. In this screen the user can adjust the parameters (defined below) and create a user-defined favorite program. Frequency one will be the starting frequency and will alternate with frequency two for the total user-defined therapy time.

  • Page 26: Technical Information

    Technical Information Power supply Input power: 100-120 V AC 220-240V AC, 50/60Hz Power consumption: max. 2,2KVA Mains fuse 12,5 AT Protection class Class I Applied class Type BF Dimensions 542 (L) x 501 (W) x 993 (H) mm Weight Approx. 60 kg Operation Magnetic field strength: CH1: 0.5 –...

  • Page 27: Cleaning

    Cleaning Disinfection The device always has to be turned off before any cleaning and disinfecting activity. Make sure that during cleaning and disinfection no liquids penetrate the device. Do not use sprays. If during cleaning or disinfecting liquid penetrates the device, please put the unit out of service, protect it from being used again and contact your service representative.

  • Page 28: Scope Of Delivery And Accessories

    Scope of Delivery and Accessories Scope of delivery Art. no. 5032 1 emFieldPro including 2 applicators 1 applicator arm 1 Instructions for use 1 Mains cable 1 Hex Key Accessories 1 Mains cable 1 Instructions for use Page 17 User Manual Rev.3...

  • Page 29: Device Combinations

    Device Combinations The emFieldPro is intended as a standalone device. No other electrical device should be operated on the patient while being treated with the emFieldPro. The device may not be connected to other devices! Page 18 User Manual Rev.3...

  • Page 30: Safety And Maintenance

    Safety and Maintenance The emFieldPro is manufactured according to the safety regulations of IEC 60601-1, Rev 3.1. As manufacturer, Zimmer Medical Systems can only be considered responsible for the safety and reliability if: - the device is operated using a proper power outlet that is properly grounded and...

  • Page 31: Functional Test

    Functional Test Routine inspection of The covering of power line of equipment, applicator connecting line, etc. shall not be equipment peeled off and internal lines shall not be exposed, and shall not be damaged by impact from outside. There shall be no trace of oil leakage from applicator. Wash the outside of equipment so that there is no foreign material.

  • Page 32: Error Messages / Troubleshooting

    Messages Over Temperature The emFieldPro is an equipment that generates a magnetic field by applying a high current to an applicator. As heat is generated from the applicator using the high current used to create the magnetic field, cooling is performed by circulating the cooling oil inside the emFieldPro applicator.
  • Page 33 Error Messages / Troubleshooting Note The emFieldPro always checks the connection state of the cable connected to the applicator. Self-troubleshooting References in the Instructions Symptom What to do for Use Check if the power connector of the equipment is properly •...
  • Page 34 Fax (949) 727-2154 E-Mail info@zimmerusa.com © All rights reserved. No part of this manual may be reproduced, saved or transferred by any means, including electronic, mechanical and photographic without the prior written approval from Zimmer MedizinSysteme GmbH. Page 23 User Manual Rev.3...

  • Page 35: Manufacturer's Emc Declaration

    The device emFieldPro does not contain any components which age over the course of the device life time and could lead to a deterioration of the electromagnetic compatibility. Thus, no maintenance is required during the life of the device to ensure basic safety.
  • Page 36 Table 1 Guidance and Manufacturing Declaration- Electromagnetic Emissions The device emFieldPro is intended for use in the electromagnetic environment specified below. The customer or user of the device emFieldPro should ensure that it is used in such environment. Emission Measurement...
  • Page 37 Manufacturer´s EMC declaration Table 2 Guidance and Manufacturing Declaration- Electromagnetic Immunity The device emFieldPro is intended for use in the electromagnetic environment specified below. The customer or user of the device emFieldPro should ensure that it is used in such environment. Immunity...
  • Page 38 Manufacturer´s EMC declaration Guidance and Manufacturing Declaration- Electromagnetic Immunity The device emFieldPro is intended for use in the electromagnetic environment specified below. The customer or user of the device emFieldPro should ensure that it is used in such environment. Immunity...
  • Page 39 Manufacturer´s EMC declaration Electromagnetic immunity to HF radio communication equipment Test Maximum Immunity Test Band Distance Frequency Service Modulation Energy Level (MHz) (MHz) (V/m) Modulation 217Hz 800-960 GSM 800/900, Pulse TETRA 800, iDEN 820, CDMA Modulation 850, LTE Band 5 18Hz 1720 1700-...
  • Page 40 User Manual Zimmer MedizinSysteme GmbH Junkersstraße 9 89231 Neu-Ulm, Germany Tel. +49 7 31. 97 61-291 Fax +49 7 31. 97 61-299 export@zimmer.de www.zimmer.de 10102942 040538915076 GA emFieldPro Bezeichnung Artikel Beschreibung Artike...
