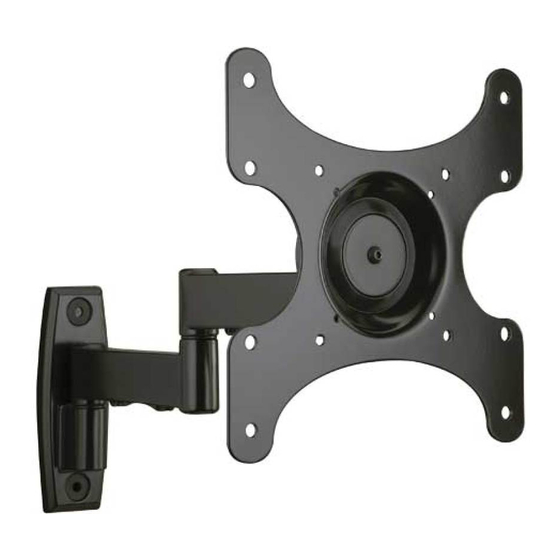

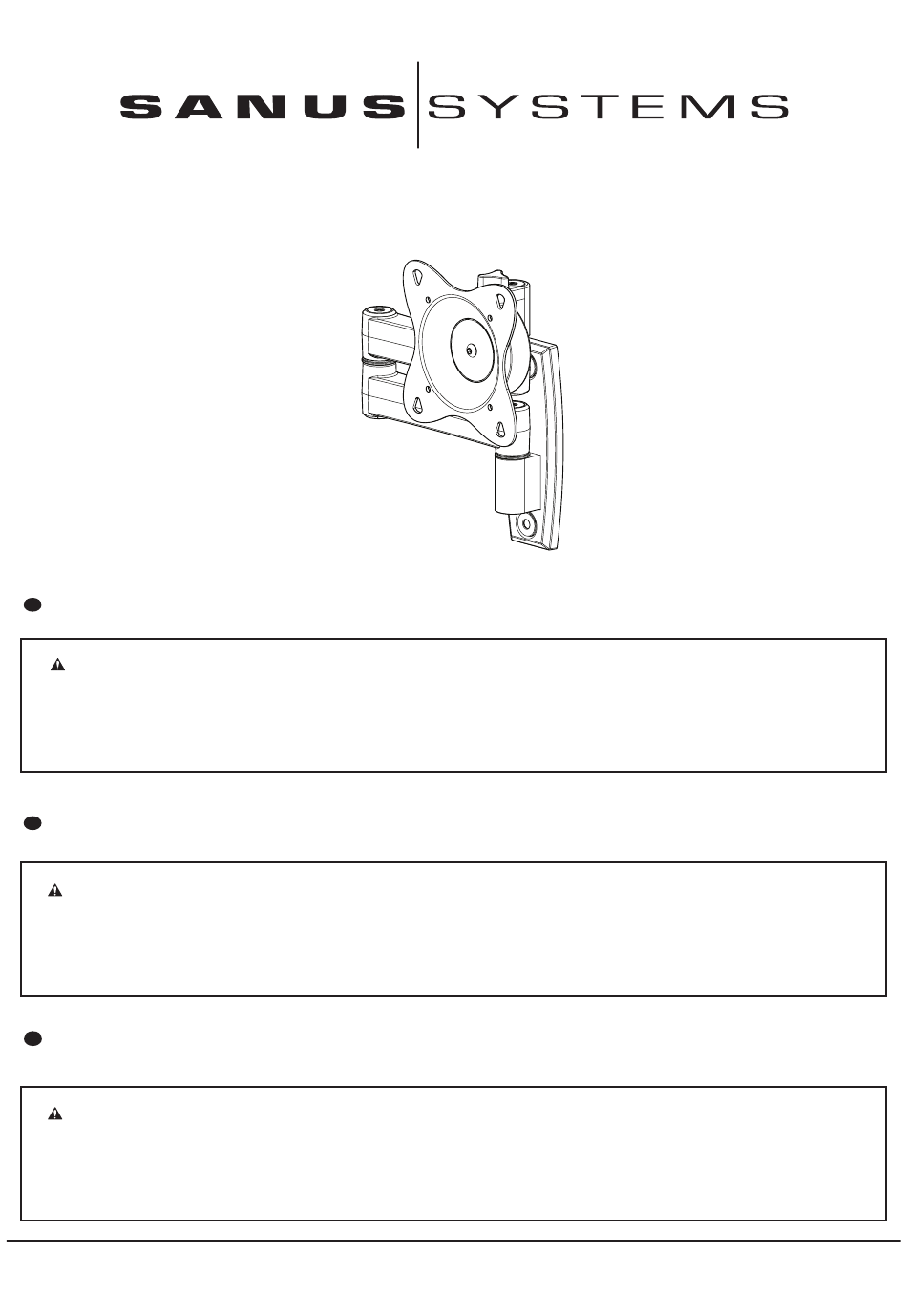

Thank you for choosing a Sanus Systems VisionMount™ MF215 wall mount. The MF215 is designed to mount LCD flat panels weighing up
EN
to 27 kg (60 lb) to a vertical wall. It is a full motion mount that allows the TV to roll ±180°, tilt ±15°, and swivel ±15° .
CAUTION: Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper installation may cause
property damage and/or personal injury. If you do not understand these directions or have doubts about the safety of the installation,
contact Sanus Systems Customer Service or call a qualified contractor. Sanus Systems is not liable for damage or injury caused by
incorrect mounting, assembly, or use.
The size and weight of your television must not exceed 94 cm (37 in) diagonally or 27 kg (60 lb). The wall must be capable of supporting
five times the weight of the television plus the wall mount.
Gracias por optar por un soporte de pared Sanus Systems VisionMount™ MF215. Éste está diseñado para montar pantallas planas de LCD de hasta
ES
27 kg (60 libras) de peso en una pared vertical. Es un soporte de movilidad total que permite al televisor rotar 180º, inclinarse ±15º y girar ±15º.
ADVERTENCIA: No utilice este producto para ningún fin que no sea explícitamente especificado por Sanus Systems. Una instalación
inadecuada puede provocar daños materiales o lesiones personales. Si no entiende las instrucciones de montaje o tiene alguna duda
sobre la seguridad de la instalación, contacte con Sanus Systems o llame a un operario cualificado. Sanus Systems no es responsable de
daños o lesiones causados por el montaje, ensamblaje o uso incorrectos.
Su televisor no debe superar las 37 pulgadas (94 cm) de diagonal ni los 27 kilos (60 libras) de peso. La pared debe poder soportar cinco
veces el peso del televisor más el soporte.
Merci d'avoir choisi le dispositif de fixation murale VisionMount™ MF215 de Sanus Systems. Le MF215 est conçu pour suspendre des écrans
FR
plats LCD pesant jusqu'à 27 kg (60 lb) sur un mur vertical. Il s'agit d'un support multi-positions qui permet de tourner le téléviseur de 180°,
de l'incliner de ±15° et de le faire pivoter de ±15°.
ATTENTION: N'utilisez pas ce produit à une fin non spécifiée expressément par Sanus Systems. Une installation incorrecte peut
entraîner des préjudices corporels ou des dommages matériels. Si vous ne comprenez pas ces instructions ou si vous avez des doutes
quant à la sécurité de l'installation, veuillez contacter le service clientèle de Sanus Systems ou un installateur qualifié. Sanus Systems n'est
pas responsable des dommages ou des préjudices causés par un montage, un assemblage ou une utilisation incorrects.
La taille et le poids du téléviseur ne doivent pas dépasser 94 cm (37 pouces) de diagonale et 27 kg (60 lb). Le mur doit être capable de
supporter cinq fois le poids combiné du téléviseur et du support mural.
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA (6901-300085<00>)
MF215
Customer Service: [1-800-359-5520]. www.sanus.com

Advertisement

loading

Related Manuals for Sanus Systems MF215

Summary of Contents for Sanus Systems MF215

  • Page 1 Gracias por optar por un soporte de pared Sanus Systems VisionMount™ MF215. Éste está diseñado para montar pantallas planas de LCD de hasta 27 kg (60 libras) de peso en una pared vertical. Es un soporte de movilidad total que permite al televisor rotar 180º, inclinarse ±15º y girar ±15º.

  • Page 2: Supplied Parts And Hardware

    Compruebe que estén incluidas todas las piezas y que estén en buenas condiciones. No use nunca piezas defectuosas. Si hay algún material defectuoso o falta algo, consulte con su almacén de ferretería o llame a Sanus Systems. Antes de devolver algún producto al punto de venta, llame a Sanus Systems.
  • Page 3 [04] x 2 [05] x 4 [01] x 1 [02] x 1 [03] x 1 [06] x 8 1/4-20 x 3.125 in. [07] x 1 [09] x 1 [10] x 1 [08] x 1 0.5 in. 0.5 in. [11] x 1 [12] x 2 [14] x 2 [13] x 2...
  • Page 4 3/16 in 63.5mm (2.5 in) [13] [06] [14] [02] 1 – 1: WOOD STUD MOUNTING CAUTION: Do not over-tighten the Lag Bolts [14]. Tighten the Lag Bolts only until they are pulled firmly against the Wall Plate [02]. If there is a layer of drywall or other material, this material may not exceed 16 mm (5/8 in) in thickness.
  • Page 5 1 - 2 7/16 in 63.5mm (2.5 in) [02] [28] [14] [13] [06] 1 – 2: BRICK, SOLID CONCRETE, AND CONCRETE BLOCK MOUNTING CAUTION: Always locate Concrete Anchors [28] in the brick, block, or concrete. Never drill into the mortar between blocks. Make sure the Concrete Anchor is seated flush with the concrete surface even if there is a layer of drywall or other material.
  • Page 6 [29] [03] [01] 75 mm 100 mm 100 mm 200 mm 75 mm 100 mm 100 mm 200 mm If the hole pattern on the back of your TV is larger than the hole pattern on the Head [01] replace the 100 mm Plate with the 200 mm Plate [03]. Si el patrón de orificios del dorso de su televisor es mayor que el patrón de orificios de la cabeza [01], sustituya la placa de 100 mm por una de 200 mm [03].
  • Page 7 3 - 1 [24] [21] [15] M4 x 12mm [24] [22] [16] M5 x 12mm [25] [23] [17] M6 x 12mm 3–1: Mounting TV with a flat back Determine the diameter of the Screw your TV requires by hand threading them into the threaded insert on the back of the TV. Stop immediately if you encounter any resistance.
  • Page 8 [29] [06] [10] [12] [11] [01] [06] [07] [06] [08] [02] [09] [06] [06] [02] [09] For clarity, the TV is not shown in when mounting TV and Head Assembly to Wall Plate. Para mayor claridad, el televisor no se muestra mientras se monta el televisor y el conjunto de la cabeza a la placa mural. Pour des raisons de clarté, le téléviseur n’...
  • Page 9 [04] [05] Route the cables through the Arm, leaving enough slack to prevent stretching the cable when the Arm is moved. Dirija los cables a través del brazo, dejándolos lo suficientemente flojos como para impedir que se estiren cuando el brazo se mueva. Dirigez les câbles à...

  • Page 10: Alternate Method

    [29] [06] [10] [12] [11] [01] [06] [07] [06] [02] [08] [09] [06] [06] [02] [09] Alternate Method With some installations it may be easier to mount the TV to the Head Assembly [01] after mounting the Head Assembly onto the Wall Plate [02]. Método alternativo En algunas instalaciones podría ser más fácil montar el televisor en el conjunto de la cabeza [01] después de montar éste en la placa mural [02].
  • Page 11 8 - 1 M4 x 12mm [15] M5 x 12mm [16] M6 x 12mm [17] M4 x 12mm [15] M5 x 12mm [16] M6 x 12mm [17] 8–1: Key Hole Mounting for TV with a flat back (For clarity the Wall Plate is not shown). 8–1: Montaje de ojo de cerradura para televisores de dorso plano (Para mayor claridad, la placa mural no se muestra).
  • Page 12 8 - 2 M4 x 30mm M4 x 30mm M4/M5 [18] [18] M4/M5 [26] [26] M5 x 30mm M5 x 30mm [19] [19] M6 x 35mm M6 x 35mm M6/M8 [20] [20] M6 / M8 [27] M6 / M8 [27] 8–2: Key Hole Mounting for TV with curved back or obstruction (For clarity the Wall Plate is not shown).
