Mindray A Series Disassembly
Mindray A Series Disassembly

Mindray A Series Disassembly

Breathing system for cleaning, disinfection and autoclaving
Hide thumbs Also See for A Series:

Advertisement

Quick Links

1
Disassembly
Remove the bellows dome by turning it
counterclockwise and lifting it away from
the breathing system.
4
Remove the bellows adapter ring from
inside the bellows. Note the orientation
of the bellows adapter ring as it is being
removed to ensure that it is properly
inserted during reassembly. (If the ring
contains grooves, the ring should be
oriented so that the grooves are facing
downward in the final reassembly.)
7
Remove flow sensors by turning the
locking nuts counterclockwise. Pull out
the inspiration and expiration connectors
together with their locking nuts. And then
pull out the flow sensors horizontally.
Page 1 of 3

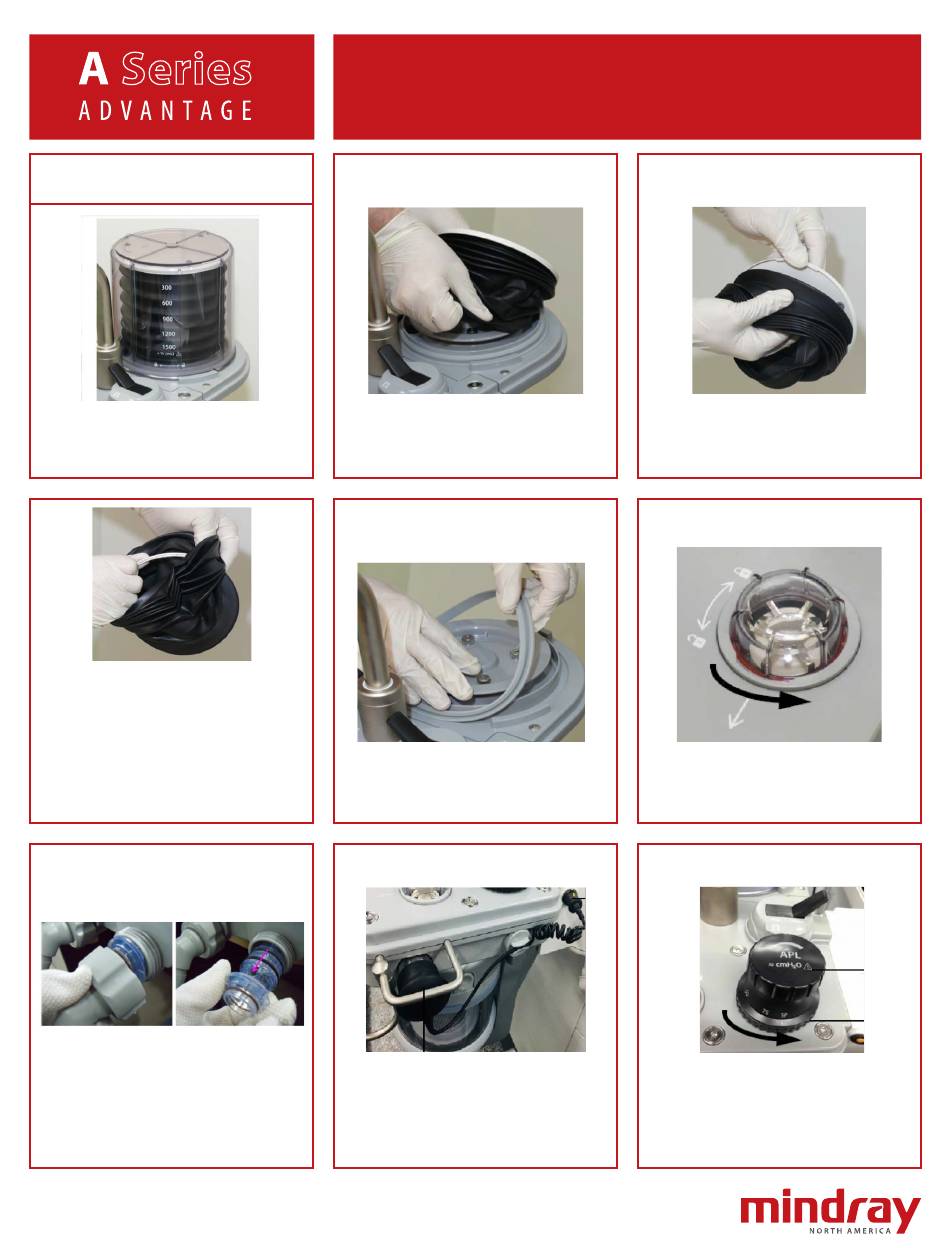

Disassembly of A-Series Breathing System
for Cleaning, Disinfection and Autoclaving
2
Detach the bellows from the base plate.
5
Remove the bellows dome O-ring.
8
Disconnect the oxygen sensor cable from
the main unit. Then hold the oxygen
sensor and pull straight out firmly from
the breathing system block.
3
Detach the top plate from the bellows.
6
Remove the valve dome by turning it
counterclockwise. Remove the valve
from the breathing system.
9
Loosen the base collar of the APL valve
by turning the collar (not the valve knob)
counterclockwise until it is no longer
threaded. Then, firmly pull the APL valve
upward to remove.

Advertisement

loading
Need help?

Need help?

Do you have a question about the A Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Mindray A Series

  • Page 1 Disassembly of A-Series Breathing System for Cleaning, Disinfection and Autoclaving Disassembly Remove the bellows dome by turning it Detach the bellows from the base plate. Detach the top plate from the bellows. counterclockwise and lifting it away from the breathing system. Remove the bellows adapter ring from inside the bellows.
  • Page 2 Disassembly of A-Series Breathing System for Cleaning, Disinfection and Autoclaving 10/11 At the base of the bag arm, locate the retaining ring. Turn the ring counterclockwise until it is no longer Rotate the locking mechanism handle Press and hold the buckle on the bypass threaded.
  • Page 3 Mindray North America 800 MacArthur Blvd., Mahwah, NJ 07430 www.mindray.com Tel: 800.288.2121 Tel: 201.995.8000 Fax: 800.926.4275 ©2020 Mindray DS USA, Inc. Mindray® is a registered trademark of Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved. 03/20 P/N: 0002-08-1655 Rev A...
