S
HOWER
IMPORTANT
DreamLine
reserves the right to alter, modify or redesign products at any time without prior notice.
®
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model's web page on DreamLine.com
http://dreamline.com/content/technical-documentation-and-manuals

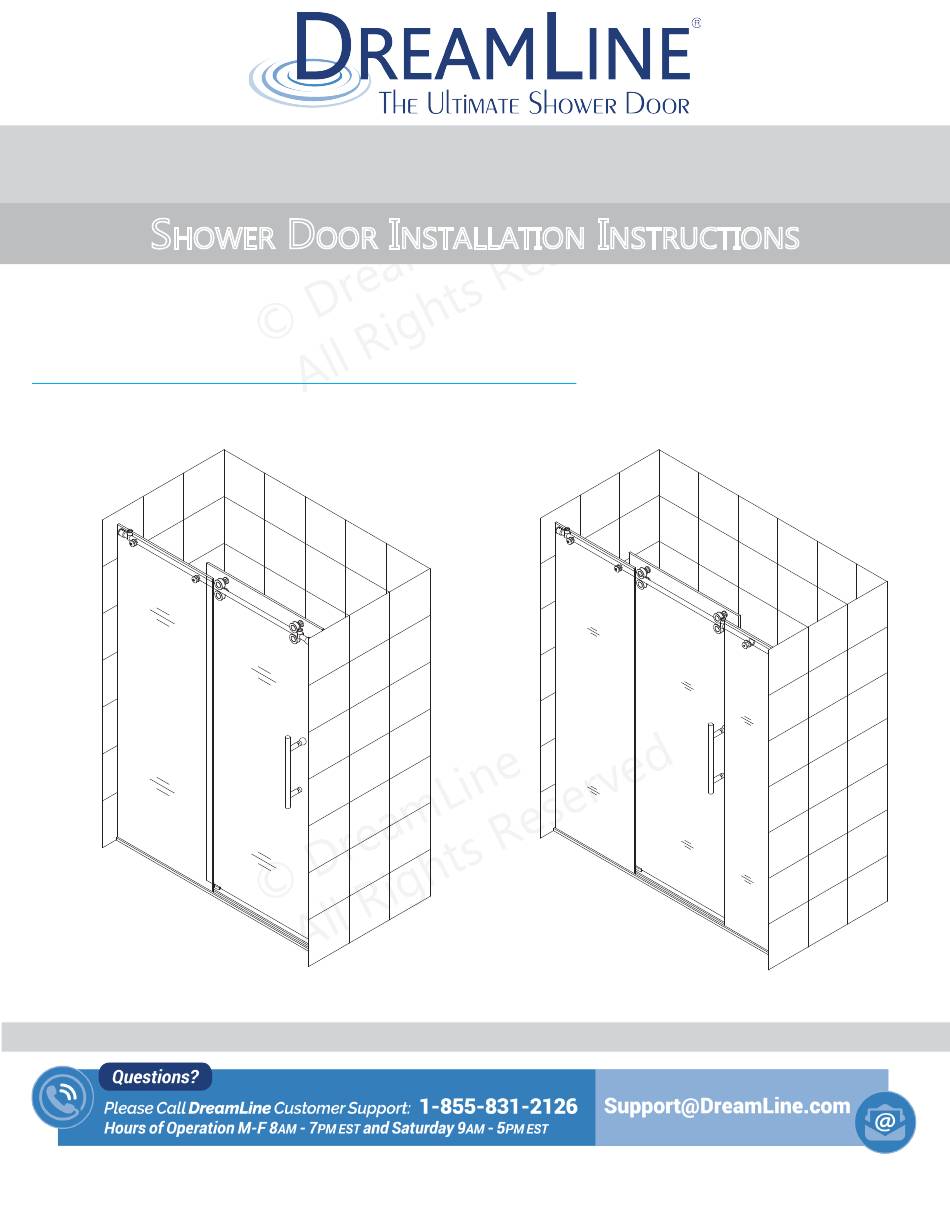

60" model#: SHDR-60607912-##
Right-hand door installation shown
For more information about DreamLine
ENIGMA shower door manual Ver 4 Rev 6 06/2018
ENIGMA
D
I
OOR
NSTALLATION
Please review this entire manual prior to installation
Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com
®
I
NSTRUCTIONS
72"model#: SHDR-60727912 -##
##=finish
07- Brushed Stainless Steel
08- Polished Stainless Steel
©2018 DreamLine. All Rights Reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dreamline ENIGMA SHDR-60607912 Series
Summary of Contents for Dreamline ENIGMA SHDR-60607912 Series
- Page 1 08- Polished Stainless Steel Please review this entire manual prior to installation For more information about DreamLine Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com ® ENIGMA shower door manual Ver 4 Rev 6 06/2018 ©2018 DreamLine. All Rights Reserved...
- Page 2 This model is treated with DreamLine’s exclusive ClearMax Glass technology. This is a specially formulated coating that prevents the buildup of soap and water spots. Install the surface with the ClearMax label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.
-
Page 3: Table Of Contents
Table of Contents Page # Section title Model Information Reinforcement For Enigma Series Preparation Tools Detailed Diagram of Shower Door Parts List Installation Steps 8-20 Vinyl Seals Enigma Roller Adjustment Procedure Product Maintenance Left-hand door installation Right-hand door installation NOTE: This model is reversible for left or right-hand installation. This manual will show the right-hand door installation as an example throughout. -
Page 4: Model Information
MANUAL FOR DETAILS REGARDING PROPER INSTALLATION. Roller Wheel Safety Set Screws must be re-tightened after installation. THE LATEST VERSION OF THE INSTALLATION Apply thread lock. MANUAL IS AVAILABLE TO VIEW OR PRINT ON DREAMLINE.COM ENIGMA shower door manual Ver 4 Rev 6 06/2018... -
Page 5: Reinforcement For Enigma Series
Reinforcement for Enigma Series Heavy Glass frameless sliding shower door Install studs OR install 2”x 6” wood blocking between the studs where the Guide Rail Brackets will attach to the wall ” 2 ” S t u ” 2 ” measured from threshold* (see list below) -
Page 6: Preparation
2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine is not ®... -
Page 7: Tools
Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in ®... -
Page 8: Detailed Diagram Of Shower Door
Detailed Diagram of shower door components A (60”) 72”) ARTS ARTS The glass surface with the ClearMax™ label must be installed to face inside of the shower Parts List Part List A (for 60” model) Part# Description Part# Description 2 pcs Door Stopper Allen Wrench 3mm/4mm/5mm 1 set... -
Page 9: Installation Steps
Installation steps Check the threshold for level and the walls for plumb. Measure the distance between the two finished walls at the bottom, middle and top. Measure the top width at a height of (75-1/2”). Record the dimensions in the spaces provided. This top measurement will be the (W) dimension used to cut the guide rail to the correct size for the finished opening in the next step. - Page 10 Place the Bottom Channel (#15) The Bottom Channel (#15) has been precut parallel to the outside edge of the for the model width of: 60”or 72”. threshold and mark the position. (Fig 4) Cut the Bottom Channel (#15) to: (Make sure to allow enough threshold Bottom (W) measurement - 1/16”.
- Page 11 Attach the Upper Guide Rail (#03) to the Stationary Panel panel end Glass (#02) with the Glass Brackets (#07) and tighten the bolts into the holes in the Upper Guide Rail (#03). Make sure both adjustment disks are installed in the same direction with the high spot towards the door end.
- Page 12 For the 72”model: Attach the Small Stationary Glass Bracket (#23) to the Upper Guide Rail (#03) between the Door Stopper (#01) and the Guide Rail Brackets (#08) as shown in Fig 7b. Right-hand door installation shown as an example disk Small Stationary Glass Bracket for 72”...
- Page 13 Once the guide rail is level, outline the positions of the Guide Rail Brackets (#08) on the wall. Carefully set the Stationary Panel Glass (#02) and Upper Guide Rail (#03) aside. Remove the Guide Rail Brackets (#08) from the Upper Guide Rail (#03) (See Fig 9a), then place the bracket base of the Guide Rail Brackets (#08) to the outlined positions on the wall and mark the holes for drilling.
- Page 14 NOTE: Before you install the Stationary Panel Glass (#02), place the Door protective padding Glass (#05) inside of the shower area, handed in the proper direction for installation, and carefully lean it against the wall. Use padding to protect the glass and shower surfaces. Once the Stationary Panel Glass (#02) is installed, it may not be possible to take the door glass into the shower.
- Page 15 NOTE: Use the Guide Rail Bracket (#08) set screws to adjust the Upper Guide Rail (#03) to level. To lower the rail: Loosen the top set screw and tighten the bottom set screw. To raise the rail: Loosen the bottom set screw and tighten the top set screw.
- Page 16 12a. 12b. For the 72“ model, measure the distance For the 60” model, measure the distance between the Stationary Panel Glass (#02) and between the Stationary Panel Glass (#02) and the Small Stationary Glass (#24). (Fig 12b) the wall. (Fig 12a) Fig 12b Fig 12a Cut the Bottom Channel Cover (#14) to the size of W (- ) 1/16”.
- Page 17 . Place the Guide Block (#12) onto the threshold, Measure 2-3/16” parallel to the Stationary Panel Glass (#02) and even from front edge with the vertical edge of the glass. (Fig 14.1) of glass to center of guide block Position the Guide Block (#12) so that the center is 2-3/16”...
- Page 18 Lift the door and position the Rollers (#04) onto the Upper Guide Rail (#03) while carefully aligning the bottom edge of the Door Glass (#05) into the Guide Block (#12). If necessary, use the adjustment disks on the Rollers (#04) to ensure that the bottom edge of the Door Glass (#05) does not make contact with the bottom of the Guide Block (#12) and so that the door makes an even seal with the wall.
-
Page 19: Vinyl Seals
Press the Bulb Vinyl Seal (#13) onto the vertical edge of the Door Glass (#05). Press the Anti-Water Strip (#17) onto the vertical edges of the Stationary Glass (#02) and the Door Glass (#05). (Fig 18-A) For the 72” model: Press the Anti-Water Strip (#25) onto the vertical edge of the Small Stationary Glass (#24). - Page 20 door side of opening for 60” model Position the Door Stoppers (#01) and screw them tightly to the Upper Guide Rail (#03). (Fig 21a and Fig 21b) *For the 72” model: Install the door side stopper in a wall position to prevent the handle from making contact with the Small Inline Panel Glass when the door is in the closed position.
- Page 21 Apply a good quality mildew-resistant silicone along the connection of the Stationary Panel Glass (#02) and Small Stationary Glass (#24) (for 72” model) and the wall. Also apply an additional bead of silicone along the Bottom Channel (#15). (Fig 22) Hours Hours Fig 22...
-
Page 22: Enigma Roller Adjustment Procedure
Roller adjustment procedure for: Enigma, Enigma-X, Enigma-XO To create a good seal with the wall and to achieve minimal clearance beneath the door glass without making contact with the bottom guide block or threshold. Have at least two 3/16” shims or wedge shims (to maintain space beneath the door glass) and an assistant available to help with this procedure. -
Page 23: Product Maintenance
NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. ® ENIGMA MAINTENANCE CHECKLIST ◻... - Page 24 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosures please visit DreamLine.com ® ENIGMA shower door manual Ver 4 Rev 6 06/2018 ©2018 DreamLine. All Rights Reserved...
