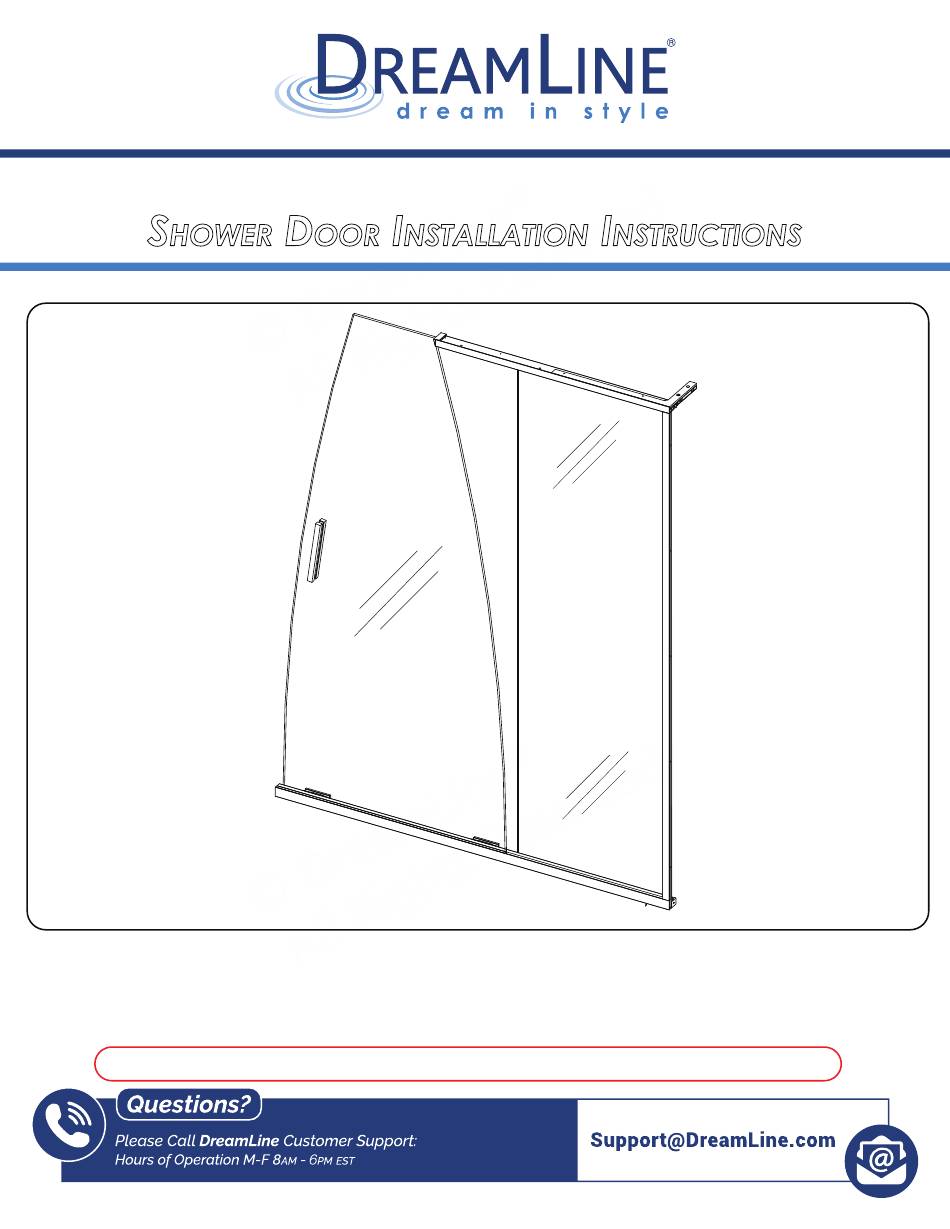

Dreamline CREST SHDR-1760760 Series Installation Instructions Manual

Shower door

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

HOWER

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

left-hand door installation shown

IMPORTANT!

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice for the

purpose of product improvement and customer experience. Please refer to the model's web page on

DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional

product details.

Do Not Return Product to the Store. Contact DreamLine® with any questions

CREST Shower Door Manual Ver 1 Rev 2 022020

CREST

OOR

NSTALLATION

1-866-731-2244

NSTRUCTIONS

MODEL #s

SHDR-1760760-##

SHDR-176076G-##

## = finish

01 - Chrome

04 - Brushed Nickel

06 - Oil Rubbed Bronze

09 - Satin Black

G - Gray Glass

Table of Contents

Need help?

Do you have a question about the CREST SHDR-1760760 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamline CREST SHDR-1760760 Series

Page 1 ® purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details. Do Not Return Product to the Store. Contact DreamLine® with any questions...
Page 2 For best results, squeegee the glass after each use and dry with a soft cloth. Record the following purchase information for your records or in the event you need to contact DreamLine ® Purchase Order...
Page 3: Table Of Contents
Table of Contents Section Title Page # ClearMax™ Coating Information — Warnings and General Preparaton Model Specific Preparation Tools Detailed Diagram of Shower Door Components Parts List Installation Steps 8-32 Reversible 18" L-Bar™ and Top SafeStop™ Bumper Installation 22-24 Bottom SafeStop™ Bumpers Installation Bottom Roller Assembly and Door Installation 27-29 Handle and Vinyl Installation...
Page 4: Warnings And General Preparaton
This product should be installed by someone familiar with the construction requirements contact our Customer Support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any for this type of project and the care necessary for the safe installation and operation of the product.
Page 5: Model Specific Preparation
Model Specific Preparation 1-3/4” minimum REQUIRED: threshold 1/2” Out-of-Plumb Adjustment on the 1-3/4” Panel side only. ±0.0 ±0.0 minimum Verify threshold and threshold walls with a level Threshold must be ±0.0 ±0.0 level Threshold must be level up to 1/2” adjustment for overall width or Out-of-Plumb conditions within the U-Channel (#09) on the panel side only.
Page 6: Tools
Detailed Diagram on page 5 and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine ®...
Page 8: Parts List
Parts List CREST Shower Door Manual Ver 1 Rev 2 022020...
Page 9 Parts List M4×6mm Countersunk Hex Head Screw Left end cap Right end cap CREST Shower Door Manual Ver 1 Rev 2 022020...
Page 10: Installation Steps
The left-hand door installation will be shown as an example throughout this Tools Needed manual. To reverse the orientation of the L-Bar™ (#02) and Top Guide Rail Assembly (#01) for a right-hand door installation, refer to page 33. ©2020 DreamLine® All Rights Reserved...
Page 11 *at model height ________” Middle ________” Bottom ________” Fig 2 Tools Needed This model will provide up to 1/2” of adjustment for out-of-plumb conditions NOTE within the Vertical U-Channel (#09) on the panel side only. ©2020 DreamLine® All Rights Reserved...
Page 12 The Bottom Profile (#06) can be cut from either end depending on the installation. Do Not cut off more than 2” from the Bottom Profile as this would remove allowance for the Panel and Door Glass installation. ©2020 DreamLine® All Rights Reserved...
Page 13 Fig 4 Mark the position of the Bottom Profile (#06) on the threshold. Tools Needed Use a tape measure to keep the rail parallel with the outside edge of the threshold. ©2020 DreamLine® All Rights Reserved...
Page 14 ST4.2 x 40mm Countersunk Screw (#07) ◾For installation into a Tile Threshold: drill a Ø3/16”(4.76mm) hole up to the stud, Tools Needed drill an Ø1/8” (3mm) pilot hole into the stud and use the ST4.2 x 40mm Countersunk Screw (#07) ©2020 DreamLine® All Rights Reserved...
Page 17 Cut several 2” - 3” pieces of the the PVC Glass Spacer 1mm (#12). DO NOT install one long continuous piece into the Bottom Profile (#06). Fig 8a Parts Needed Fig 8b Tools Needed ©2020 DreamLine® All Rights Reserved...
Page 18 Tools Needed The vertical U-Channel (#09) is sent long to accommodate the finished opening NOTE conditions. Mark the U-Channel (#09) flush with the top guide rail and then cut to size in Step #11. ©2020 DreamLine® All Rights Reserved...
Page 19 Remove the 2” - 3” pieces of the PVC Glass Spacer 1mm (#12) from the Bottom Profile that were inserted in Step 08. These must be reinstalled before final installation of the panel glass. ©2020 DreamLine® All Rights Reserved...
Page 21 ◾If no stud is present behind the wall: cloth before drilling to prevent debris drill a Ø5/16”(7mm) hole and insert the Wall Anchors (#08) from getting into the channel. and use the ST4.2 x 40mm Countersunk Screws (#07). ©2020 DreamLine® All Rights Reserved...
Page 22 Fig 13a Parts Needed When placing the Door Glass (#11) into the shower area, confirm the handle holes are on the correct Tools Needed side. Always use padding to protect the glass and shower surfaces. ©2020 DreamLine® All Rights Reserved...
Page 24: Reversible 18" L-Bar™ And Top Safestop™ Bumper Installation
M5×8 Flat Set Screw 2 pc right-hand 18” L-Bar™ installation shown Fig 15b 02.7 Reversible L- Bar™ Body 1 pc To reverse the orientation of the 18” L-Bar™ (#02) and Top Profile (#01), please refer to page 33. ©2020 DreamLine® All Rights Reserved...
Page 26 Top SafeStop™ Bumper PVC Insert(#14). Parts Needed Tools Needed Secure the Top Guide Rail assembly to the outside surface of the Panel Glass (#10) with several pieces of painter’s tape until the silicone fully cures. ©2020 DreamLine® All Rights Reserved...
Page 27: Bottom Safestop™ Bumpers Installation
Door Glass from making contact with the walls. Remove 3M™ Tape Parts Needed inside Fig 18 Thoroughly clean the areas with an alcohol swab prior to install. Screw installation is optional for the bottom SafeStop™ Bumpers. ©2020 DreamLine® All Rights Reserved...
Page 28 To avoid glass-to-metal contact, insert a small piece (1/4” +/-) of the remaining PVC Glass Spacer 1mm (#12) between the end of the Bottom Channel Insert (#18) and the Panel Glass as shown in Fig 19b. ©2020 DreamLine® All Rights Reserved...
Page 29: Bottom Roller Assembly And Door Installation
Bottom Roller Assembly and Door Installation Fig 20a Fig 20b Parts Needed Fig 20c Tools Needed It is not necessary to fully disassemble the Bottom Roller Assemblies (#20). 5 mm ©2020 DreamLine® All Rights Reserved...
Page 31 Door Glass (#11) notch: - Insert the provided 1mm or 2mm Shims (#24) Parts Needed into the gap. - Use the same amount of shims in both rollers. - Do Not exceed 3mm of shims per Roller. ©2020 DreamLine® All Rights Reserved...
Page 32 *Both the Left- (#21) and Right- (#21) Top Profile End Caps are shipped with the product. NOTE Use the Right Top Profile End Cap for the left-hand door installation as shown. Left end cap Right end cap ©2020 DreamLine® All Rights Reserved...
Page 33: Handle And Vinyl Installation
Handle and Vinyl Installation inside door glass panel glass Parts Needed Fig 24 NOTE Install the Handle (#20) so that the curvature matches the edge of the Door Glass (#11). Tools Needed 3 mm ©2020 DreamLine® All Rights Reserved...
Page 34 The surfaces need to be clean and free of debris before applying silicone. NOTE Hours Fig 25 Tools Needed Allow 24 hours for the silicone to cure before using the shower, then remove the painter’s tape that is securing the Top Guide Rail. ©2020 DreamLine® All Rights Reserved...
Page 36: Product Maintenance
To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, NOTE and/or damage. Contact DreamLine with any questions or concerns. ® CREST Maintenance Checklist ◻...
Page 37: Troubleshooting
Suggested Solution Page(s) •Check all shipping/packaging material for missing parts/components. Missing Parts •If not found, contact DreamLine Customer Support [1-866-731-2244] to order ―— factory part replacement. Bottom Profile (#06) was cut too short or was cut •Contact DreamLine Customer Support [1-866-731-2244] to order factory part ―—...
Page 38: Factory Parts Information
07550152 PVC Spacer 1mm for Bottom Roller 2 pcs 07550153 PVC Spacer 2mm for Bottom Roller 2 pcs Contact Support@DreamLine.com for Part replacement, installation assistance or addtional information. Complete Warranty information is available on DreamLine.com. ©2020 DreamLine® All Rights Reserved...
Page 39 07550153 PVC Spacer 2mm for Bottom Roller 2 pcs BOLD digit indicates finish color: 9 = Satin Black Contact Support@DreamLine.com for Part replacement, installation assistance or addtional information. Complete Warranty information is available on DreamLine.com. ©2020 DreamLine® All Rights Reserved...
