S
HOWER
IMPORTANT
DreamLine
reserves the right to alter, modify or redesign products at any time without prior notice.
®
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model's web page on DreamLine.com
Model #s
SHDR-62487610-##
SHDR-62607610-##

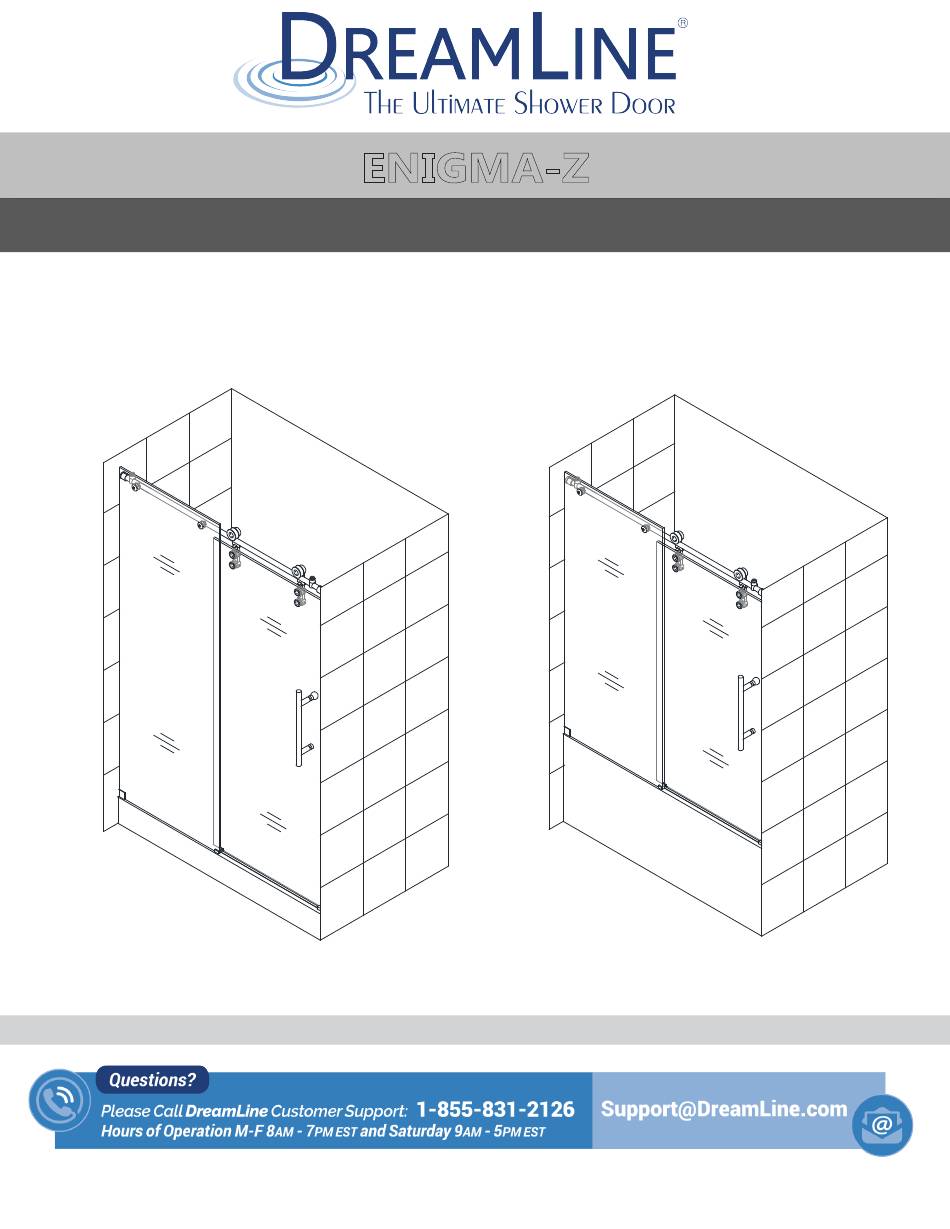

Right hand door installation shown
For more information about DreamLine
ENIGMA-Z manual Ver 1 Rev 4 10/2016
ENIGMA-Z
D
T
D
OOR &
UB
Shower Doors & Tub Doors please visit DreamLine.com
®
I
OOR
NSTALLATION
Model #s
SHDR-62606210-##
I
NSTRUCTIONS
##=finish
07- Brushed Stainless Steel
08- Polished Stainless Steel
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dreamline ENIGMA-Z SHDR-62487610 Series
Summary of Contents for Dreamline ENIGMA-Z SHDR-62487610 Series
- Page 1 Model #s SHDR-62487610-## SHDR-62606210-## SHDR-62607610-## ##=finish 07- Brushed Stainless Steel 08- Polished Stainless Steel Right hand door installation shown For more information about DreamLine Shower Doors & Tub Doors please visit DreamLine.com ® ENIGMA-Z manual Ver 1 Rev 4 10/2016...
- Page 2 NOTE: This manual will describe the installation of the single threshold model of the Enigma-Z. For the ENIGMA-Z Enclosure installation, please use the manual that is packaged with the return panel glass. MODEL #s SHEN-6234480-## SHEN-6234600-## When installing one of the enclosure models, use the manual that is packed with the return panel glass.
- Page 3 This model is treated with DreamLine’s exclusive ClearMax Glass technology. This is a specially formulated coating that prevents the build up of soap and water spots. Install the surface with the ClearMax label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.
- Page 4 MANUAL FOR DETAILS REGARDING PROPER INSTALLATION. Roller Wheel Assembly Set Screws THE LATEST VERSION OF THE INSTALLATION must be tightened MANUAL IS AVAILABLE TO VIEW OR PRINT ON DREAMLINE.COM ENIGMA-Z manual Ver 1 Rev 4 10/2016...
- Page 5 ® of purchase to help identify the original order. 2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine is not ® responsible for code compliance standards for your project and will not accept any returns.
- Page 6 Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in ®...
-
Page 7: Parts List
Detailed Diagram of Shower Door Components The glass surface with the ClearMax™ label must be installed to face inside of the shower inside Parts List Description Description Part # Part # Door Stopper 2 pcs Hex wrench 3mm, 4 mm, 5mm 2 pcs Stationary Glass 1 pc... -
Page 8: Installation Steps
Installation steps Measure the distance between the two finished walls at the top, middle and bottom. This distance is marked as “W”. Also check the threshold for level and the walls for plumb. Use the “W” dimension at the model height to cut the Upper Guide rail (#03) to size for your opening. - Page 9 Attach the Upper guide rail (#03) to the Stationary glass (#02) with the Glass brackets (#07) and tighten the bolts into the pre-drilled holes in the Upper guide Rail (#03). Make sure both adjustment disks are installed in the same direction with the high spot towards the door end (see *NOTE below).
- Page 10 The Guide block (#12) should be centered on the threshold, not the stationary panel glass. In preparation for dry fitting the Stationary glass panel (#02), Upper Guide rail (#03), Anti-splash threshold (#15) and Guide block(#12), use the Guide block (#12) as a reference to mark the wall and base on the stationary panel side where the stationary panel glass will be installed.
- Page 11 Outline the position of the Wall bracket (#19) and Guide Rail brackets (#08) on the wall. See Fig. 7 for details. Fig. 7 Mark the position of the Guide block (#12) on the threshold (Make sure the Guide block (#12) is square to the threshold).
- Page 12 Set the Stationary glass (#02) and Upper Guide Rail (#03) aside, along with the Guide block (#12) and Anti-splash threshold (#15). Remove the Guide Rail Brackets (#08) from the Upper Guide Rail (#03) (as shown below) and the Wall bracket (#19) from the Stationary glass (#02).
- Page 13 protective padding NOTE: Before you install the Stationary glass (#02), bring the Door Glass (#05) into the shower and lean it against the wall. Make sure the door is facing in the direction that it will be installed. After the Stationary glass (#02) is installed, it may not be possible to easily get the door glass into the shower.
- Page 14 12 . Place the Stationary glass (#02) with the Upper Guide Rail (#03) onto the threshold with the notch fitting into the Guide block (#12). Position the Stationary glass (#02) against the wall. (Please note that the Stationary Glass (#02) installs on the outside and the Upper guide rail (#03) goes on the inside of the shower).
- Page 15 . Fasten the Guide block (#12) to the threshold or tub deck with the Ø 1/8" Countersunk screw ST4.2×25 (#17). See Fig. 15 for details Fig. 15 TIP: Adjust the installed Upper Guide rail (#03) to level as necessary using the Guide rail brackets (#08) first and then the Glass brackets (#07)(see Fig 4 in step#3).
- Page 16 Use the Roller Installation tool to install the two Roller assemblies (#04) to the Glass door (#05) (Fig 18.1). Suspend the door by hanging the Roller assemblies (#04) onto the Upper guide rail (#03) and sliding the bottom edge of the Glass door (#05) into the groove of the Guide block (#12).
- Page 17 . Press the Anti-water strip (#14) on the vertical edges of the Stationary glass (#02) and the Glass door (#05). Also press the Door Bumper seal strip (#13) on the vertical edge of the Glass door Door (#05). Mount the Handle (#06) to the Door Glass (#05). Panel Adjust both Door stoppers (#01) to ensure that they are positioned upright and the Glass door (#05) is in its maximum opening and...
- Page 18 Apply waterproof silicone at both ends of the Anti-splash guard (#15), around the Guide block (#12) and around the Anti-splash guard cap (#16). See Fig. 22 for details Waterproof silicone Apply a good quality mildew-resistant silicone sealant along the connection of the Stationary glass with the wall and the threshold or tub deck.
-
Page 19: Product Maintenance
NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. ENIGMA-Z manual Ver 1 Rev 4 10/2016... - Page 20 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosure please visit DreamLine.com ®...
