Quick Guide for the V-Tap Analog

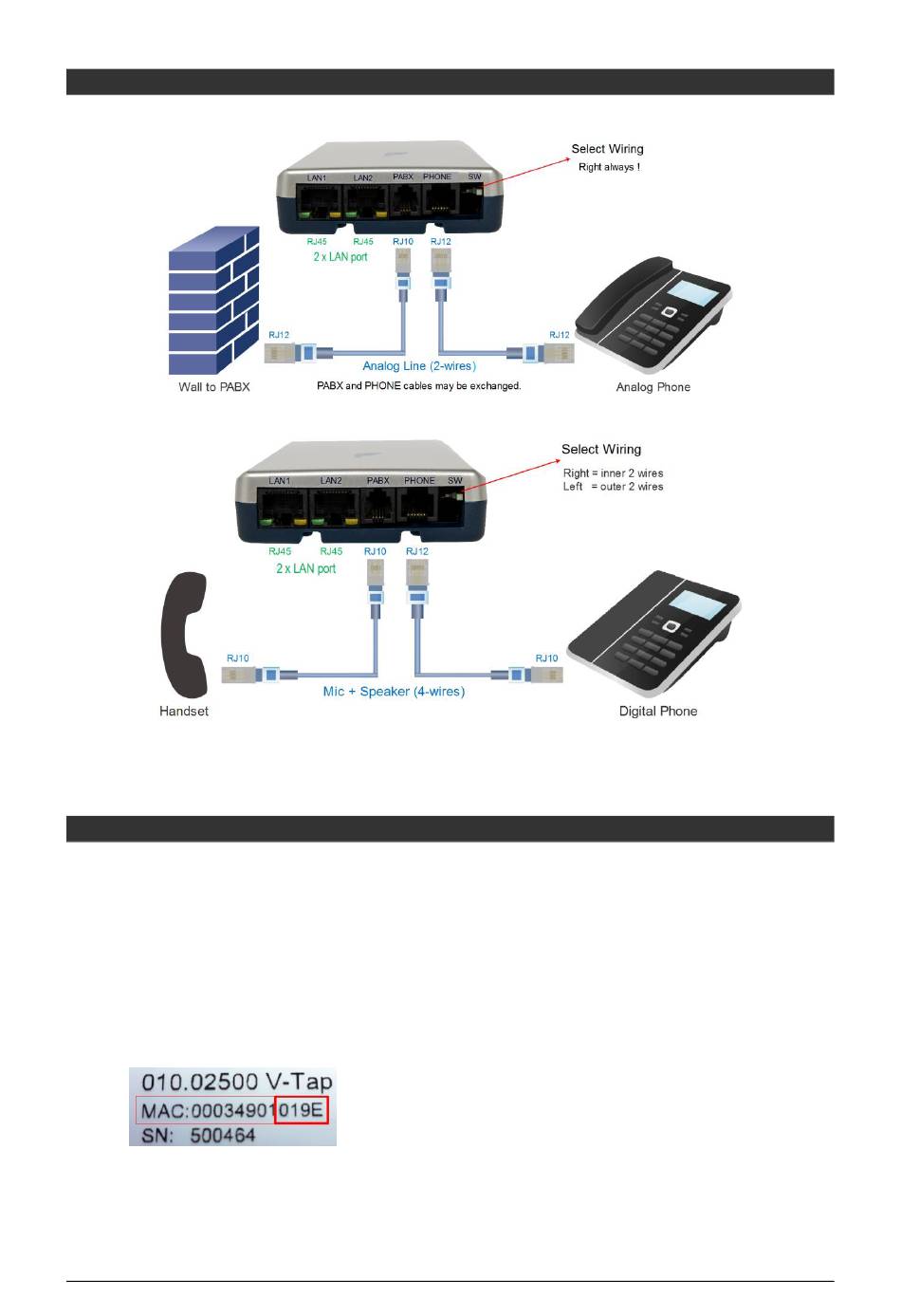

1. On an analog line, in between the wall and the phone:
2. In between the handset and the phone:
NOTE1: USB must be connected for power supply and must deliver 500 mA.
NOTE2: An SD card must be inserted to store the recordings on (FAT32 formatted).
NOTE3: Optionally connect the network for web access and/or Tunnel function.
• When Wi-Fi is available and enabled on the V-Tap, search on your mobile phone or laptop for
the name "V-Tap...", connect to it using the 12 digits MAC address as the Wi-Fi password,
found on the bottom of the unit. Then open a browser and enter the IP: 192.168.55.66
• When using a LAN cable, there are two ways to access the web interface:
1) Start a browser and enter in the address line
XXXX are the last 4 digits of the MAC address, found on the bottom of the unit.
Note: It may take some time before the local name is known to the network.
2) Or enter an IP address on the first line of the text file "IP.TXT", put this file onto an SD
card and insert the card into the V-Tap. Then enter this IP address in the browser.
Login with the user name admin and password admin.
v1.14
HARDWARE INSTALLATION – 2 WAY'S TO CONNECT

SETUP THROUGH THE WEB INTERFACE

For this V-Tap, enter
© 2017-2019 Vidicode
http://vtapXXXX.local
http://vtap019e.local
