VANGUARD 4x2H / 8x4H / 16x8H
4CH / 8CH / 16CH H.265 4K Hybrid DVR
Quick Installation Guide
VANGUARD 16x8H
VANGUARD 8x4H
VANGUARD 4x2H
Copyright © EverFocus Electronics Corp.
Release Date: March 2019
All the images including product pictures or screen shots in this document are for example only. The images may
vary depending on the product and software version. Information contained in this document is subject to
change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632
www.everfocus.com.tw marketing@everfocus.com.tw
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EverFocus VANGUARD 4x2H
Summary of Contents for EverFocus VANGUARD 4x2H

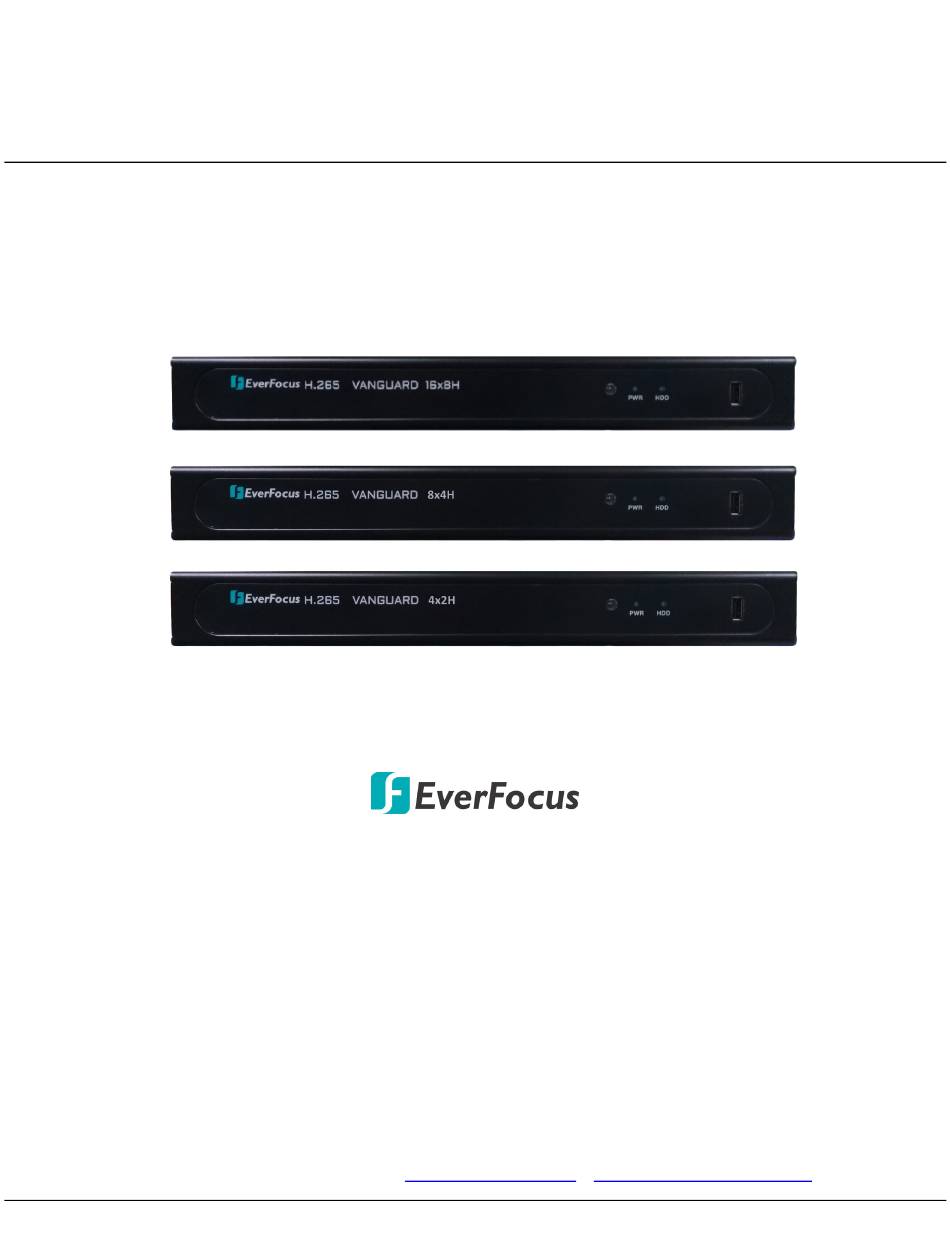

- Page 1 VANGUARD 4x2H / 8x4H / 16x8H 4CH / 8CH / 16CH H.265 4K Hybrid DVR Quick Installation Guide VANGUARD 16x8H VANGUARD 8x4H VANGUARD 4x2H Copyright © EverFocus Electronics Corp. Release Date: March 2019 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version.
-
Page 2: Front Panel
1. Overview 1.1 Front Panel VANGUARD 16x8H / VANGUARD 8x4H / VANGUARD 4x2H Name Description IR Receiver Receiver for signals from the IR remote control. Power: When power is on, the LED will continue lighting in green. LED Indicator HDD: When power is on, the LED will continue lighting in red. When HDD is reading/writing data, the LED will flashes red. -
Page 3: Packing List
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. - Page 4 1.4 Dimensions 2. Basic Installation 2.1 Hard Disk Installation You can install two 3.5” HDDs inside the DVR for recording videos. The maximum capacity of each HDD is 8TB. 1. Make sure the DVR is power-off. 2. Unscrew the eight housing screws (4 on the rear panel, 2 on the left and right side each). To remove the housing cover from the DVR, push the cover backward and then lift it.
-
Page 5: Hard Disk Compatibility List
5. Screw the housing cover back to the DVR. 2.2 Hard Disk Compatibility List Please go to the product page (Download) on EverFocus’ Website www.everfocus.com.tw to see the latest Storage Compatibility List. It’s recommended to use the hard disk models listed on the Storage Compatibility List to ensure your hard disks are compatible. -
Page 6: Terminal Block
8. Use the supplied Power Cord and Adaptor to connect the DVR to the power outlet. 3.1 Terminal Block VANGUARD 16x8H Alarm Input: 16 Alarm Output: 1 RS-485: 1 VANGUARD 8x4H VANGUARD 4x2H Alarm Input: 8 Alarm Input: 4 Alarm Output: 1 Alarm Output: 1 RS-485: 1 RS-485: 1 4. - Page 7 The P2P function allows users to add DVRs to EverFocus’ eFVMS App through QR code. 1. Install EverFocus eFVMS App. For Android users, go to Google Play Store. For iOS users, go to Apple Store. After the installation process is complete, start eFVMS App.
- Page 8 3. Scan the DVR’s QR code on the System Info page of the DVR OSD menu. Input the DVR ID, password and Media Port 8000. Tap the Save button. …… 4. The DVR is now added and connected to the App. You can start accessing the DVR. P/N: 4605VAN0402002B...
