VANGUARD 16x8H Plus
16CH, H.265, 4K Hybrid DVR
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: March 2019
All the images including product pictures or screen shots in this document are for example only. The images may
vary depending on the product and software version. Information contained in this document is subject to
change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 26622338 FAX: +886 2 26623632
www.everfocus.com.tw marketing@everfocus.com.tw
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EverFocus VANGUARD 16x8H Plus
Summary of Contents for EverFocus VANGUARD 16x8H Plus

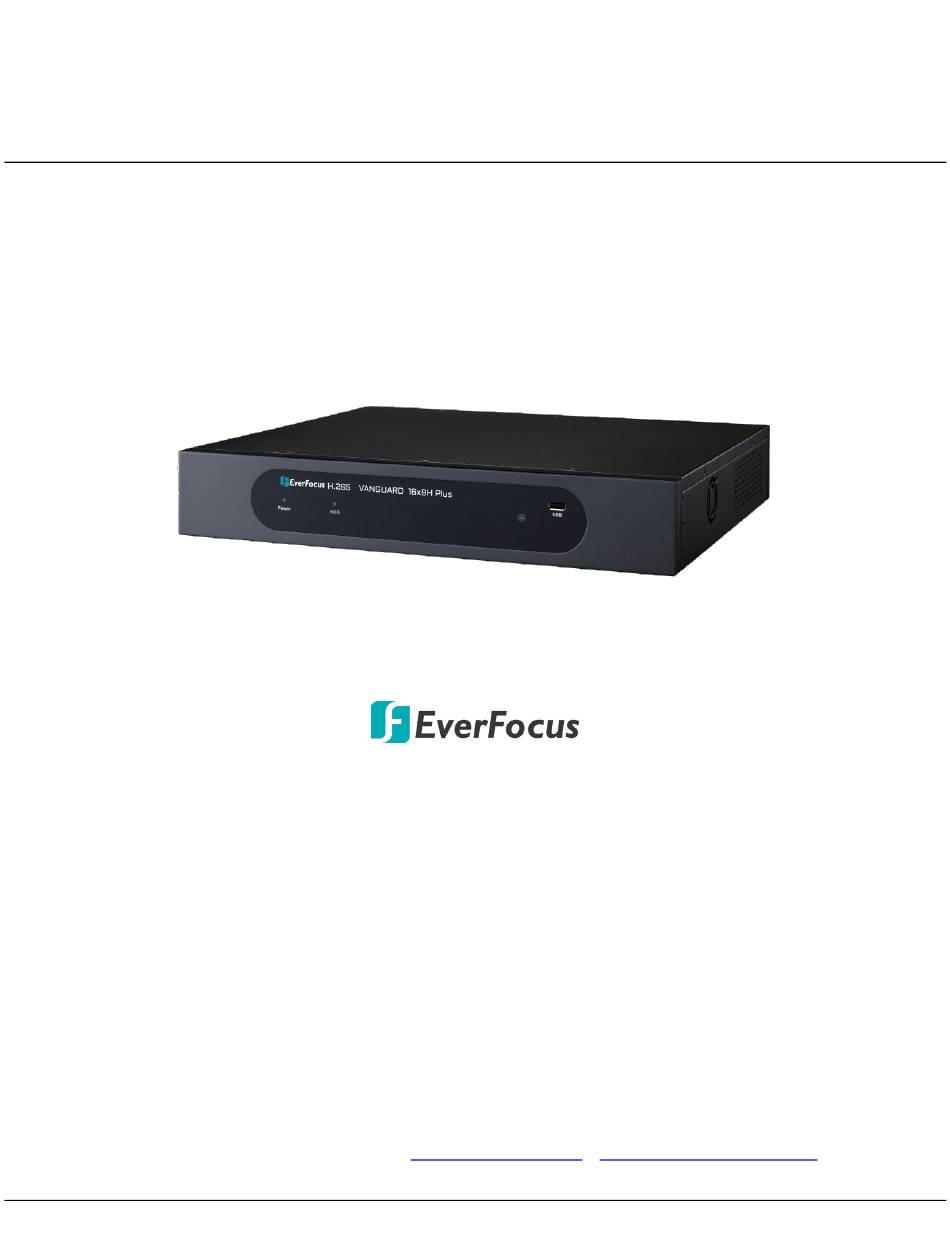

- Page 1 VANGUARD 16x8H Plus 16CH, H.265, 4K Hybrid DVR Quick Installation Guide Copyright © EverFocus Electronics Corp. Release Date: March 2019 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version. Information contained in this document is subject to change without notice.
-
Page 2: Front Panel
1. Overview 1.1 Front Panel No. Name Description Power: When power is on, the LED will continue lighting in green. LED Indicator HDD: When power is on, the LED will continue lighting in red. When HDD is reading/writing data, the LED will flashes red. IR Receiver Receiver for signals from the IR remote control. -
Page 3: Packing List
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 4: Hard Disk Compatibility List
3. Place the HDDs inside the DVR, screw the HDDs from the bottom side of the DVR using the supplied Screws. After installing the HDDs, screw the housing cover back to the DVR. 2.2 Hard Disk Compatibility List Please go to the product page (Download) on EverFocus’ Website www.everfocus.com.tw to see the latest Storage Compatibility List. -
Page 5: Rack Mount
2.3 Rack Mount To install rack ears on the DVR: 1. Unscrew the four M3 (φ6.8) screws on both side of the DVR. 2. Use the supplied two rack ears and the above screws for rack mount installation on both side. 3. -
Page 6: Terminal Block
3.1 Terminal Block VANGUARD 16x8 Plus provides 16 alarm inputs, 1 alarm output and 1 RS-485. 4. Turning On / Off the Power Before powering on the DVR, please make sure the internal HDD have been installed properly. Once you have completed the basic cable connections, you are ready to turn on the DVR. Simply plug in the power source and then press the Power Switch on the rear panel of the DVR. - Page 7 The P2P function allows users to add DVRs to the eFVMS App through QR code. 1. Install EverFocus eFVMS App. For Android users, go to Google Play Store. For iOS users, go to Apple Store. After the installation process is complete, start eFVMS App.
- Page 8 …… 4. The DVR is now added and connected to the App. You can start accessing the DVR. P/N: 4605VAN1602004B...
