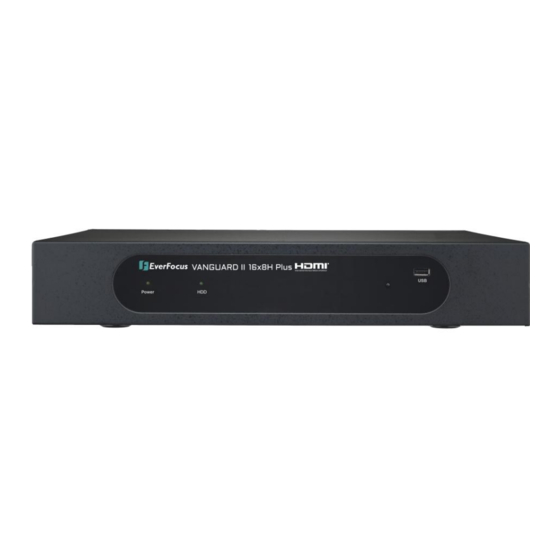

VANGUARD II 16x8H Plus
16CH / H.265 / Hybrid DVR
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: May 2022
All the images including product pictures or screen shots in this document are for example only. The images may
vary depending on the product and software version. Information contained in this document is subject to
change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 2662 2338 FAX: +886 2 2662 3632
www.everfocus.com.tw marketing@everfocus.com.tw
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EverFocus VANGUARD II 16x8H Plus
Summary of Contents for EverFocus VANGUARD II 16x8H Plus
- Page 1 VANGUARD II 16x8H Plus 16CH / H.265 / Hybrid DVR Quick Installation Guide Copyright © EverFocus Electronics Corp. Release Date: May 2022 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version.
-
Page 2: Safety Precautions
Safety Precautions Refer all work related to the installation of this product to qualified service personnel or system installers. Do not block the ventilation openings or slots on the cover. Do not drop metallic parts through slots. This could permanently damage the appliance. Turn the power off immediately and contact qualified service personnel for service. - Page 3 Water and Moisture Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any area which is classified as a wet location.
- Page 4 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
-
Page 5: Front Panel
1. Overview 1.1 Front Panel Name Description Power: When power is on, the LED will continue lighting in green. LED Indicator HDD: When power is on, the LED will continue lighting in red. When HDD is reading/writing data, the LED will flashes red. IR Receiver Receiver for signals from the IR remote control. -
Page 6: Packing List
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 7: Basic Installation
2. Basic Installation 2.1 Rack Ear Installation 1. Remove the M3 (φ 6.8) screws on the sides of the DVR. 2. Screw the supplied Rack Ears onto the sides of the DVR with the screws. 2.2 Hard Disk Installation You can install four 3.5” HDDs inside the DVR for recording videos. The maximum capacity of each HDD is 8TB. -
Page 8: Hard Disk Compatibility List
4. Screw the housing cover back to the DVR. 2.3 Hard Disk Compatibility List Please go to EverFocus’ Website www.everfocus.com.tw, and go to Support > Product Marketing to search for and download the Storage Compatibility Table. It’s recommended to use the hard disk models listed on the table to ensure your hard disks will be compatible. -
Page 9: Terminal Block
3.1 Terminal Block Alarm Input: 16 Alarm Output: 1 RS-485: 1 4. Turning On / Off the Power Before powering on the DVR, please make sure the internal HDD have been installed properly. Once you have completed the basic cable connections, you are ready to turn on the DVR. Simply plug in the power source and then press the Power Switch on the rear panel of the DVR. - Page 10 The P2P function allows users to add DVRs to EverFocus’ eFVMS App through QR code. 1. Install EverFocus eFVMS App. For Android users, go to Google Play Store. For iOS users, go to Apple Store. After the installation process is complete, start eFVMS App.
-
Page 11: Ir Remote Control
4. The DVR is now added and connected to the App. You can start accessing the DVR. VANGUARD II 8x4H VANGUARD II 8x4H – CH1 [P2P] VANGUARD II 8x4H 6. IR Remote Control Key1-8: Channel Select; Numeric Keys Key9, 0: Numeric Keys Multiple Display Mode Enter into Main Menu / Exit Enter into Submenu...
