- Page 1 TRIPOD 119G3782EN TURNSTILES INSTALLATION MANUAL TWISTER LIGHT PSBPS07N-PSBPS08-PSBPS09-PSBPS10 English...
- Page 2 • This product should only be used for the purpose for which it was explicitly to see whether any anomalies or signs of wear and tear appear on the moving designed. Any other use is considered dangerous. CAME Cancelli Automatici parts, on the component parts, on the securing points, on the cables and any S.p.A.

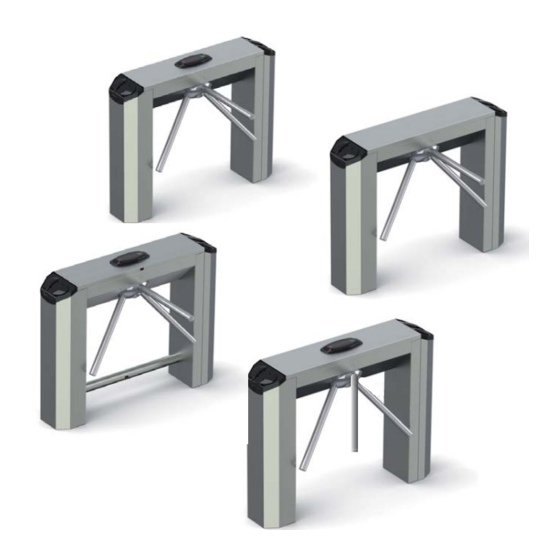

- Page 3 OF THE ILLUSTRATIONS SHOWN. REGULATORY REFERENCES This product has been designed and built by CAME CANCELLI AUTOMATICI S.p.A. in compliance with applicable safety standards stated in the declaration of conformity. DESCRIPTION 001PSBPS07N AISI 304 steel bidirectional electromechanical turnstile with scotch-brite fi nish, complete with control panel and hydraulic damper.
-
Page 4: Description Of The Components
Description of the components PSBPS08 PSBPS08 PSBPS07N PSBPS07N Legs 10. Cover lock Legs Cover lock Tripod 11. Screws and washers for fixing Tripod 10. Screws and washers for fixing the Sheet housing the legs to the body Sheet housing legs to the body Casing 12. -
Page 5: Example Of A System
Dimensions (MM) 1200 Example of a system Tripod turnstile Arrow indicators Junction box Barrier Examples of use ⚠ A turnstile regulated exit should not be considered an emergency exit! Always provide an exit for emergency situations and for the physically impaired. Standard installation Wall flanking installation Multiple installation... -
Page 6: General Instructions For Installation
GENERAL INSTRUCTIONS FOR INSTALLATION ⚠ Installation must be carried out by qualified and experienced personnel in compliance with applicable regulations. Preliminary checks ⚠ The following is necessary before installing the turnstile: • If necessary, provide the corrugated tubing required for the passage of electrical cables; •... - Page 7 Fit the tripod into the pin and fix with screws M8x20 and cover Attach the arms to the head of the tripod with screws M10x60 and flat head washers. PSBPS07N PSBPS07N PSBPS08 PSBPS08 PSBPS09 PSBPS09 Securing the turnstile The floor on which the turnstile is fixed must be The turnstile ancoring spot depends on the size Drill the marked holes and insert the dowels into perfectly level.
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS ⚠ Before intervening on the control board, disconnect the line voltage. FUSE TABLE TOR100A TOR100B Control board supply (V - 50/60 Hz): 120 - 230 AC. Control device power supply: 24 V AC 1.6 (230 V) Line fuses (A) ⚠... - Page 9 Devices already connected (all models) Transit sensor White Brown Green Transformer White Red (230 V AC) White Black (120 V AC) Blue Blue Electric lock PSBPS09 PSBPS09 PSBPS09 PSBPS09 PSBPS09 PSBPS09 Photocells Protection against climbing over sensors Buzzer Photocell Sensor Photocell Sensor Devices to be connected...
-
Page 10: Control Devices
Control devices Terminal block for 24 V AC powering of accessories with maximum current and power draw of 250 mA and 35 W respectively. STOP button (N.C. contact). Allows for turnstile locking. Clockwise operation button (N.O. contact). Allows clockwise unlocking of tripod. The tripod will lock automatically after a fi... -
Page 11: Maintenance
Put the cover on and close the lock with the key. ADJUSTING THE HYDRAULIC DAMPER Proper adjustment of the hydraulic damper is a necessary condition for the correct turnstile operation with reduction of mechanical stress on the system. ⚠ Both the working temperature and duty cycle must be taken into account to properly adjust the hydraulic damper. ⚠... -
Page 12: Troubleshooting
☞ CAME CANCELLI AUTOMATICI S.p.A. implements an EN ISO 14001-certified and compliant Environmental Management System at its plants, to ensure environmental protection. Please continue our efforts to protect the environment, something that CAME considers to be one of the foundations in developing its business and market strategies, simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING Packaging components (cardboard, plastic, etc.) can be disposed of together with normal household waste without any difficulty, by simply separating the different types of...
