OLG Modulus Installation Manual page 6

Modulus 4 Post Pedestal Table
INSTALLATION GUIDE
13

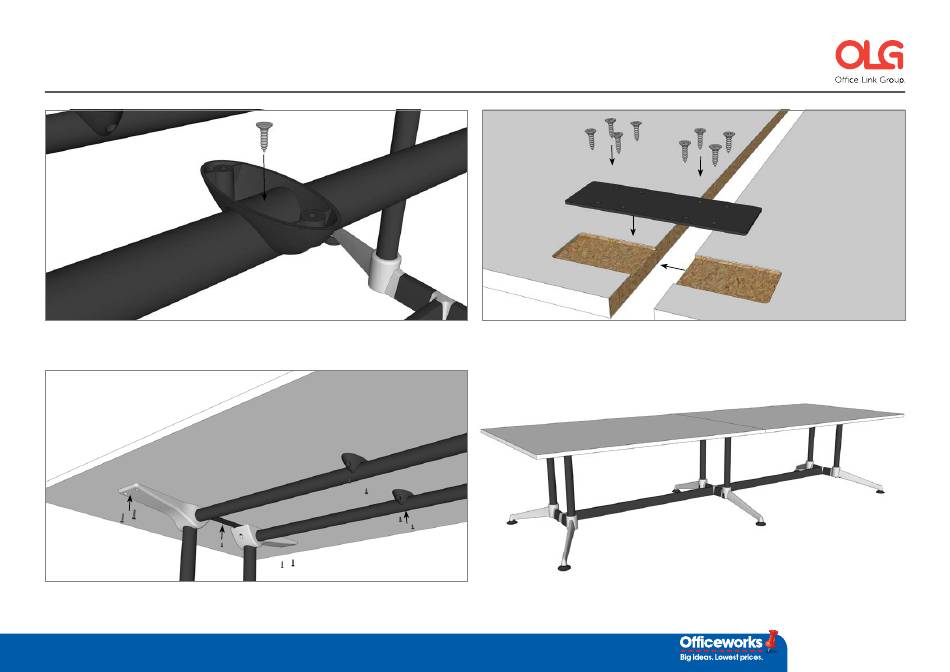

Optional: For extra strength, the plastic support brackets can be screwed onto the
top rails.
15
Fully tighten all M5x30mm screws through each upper wrist into the work surface.
Fully tighten all M5x20mm screws through each steel strap and plastic support into
the work surface.
14
For multi piece work surfaces, use the table top bracket plates, and M5x20mm
screws to join together as one solid piece. This should be done with the work
surface sitting on the frame in its final position.
