OLG Modulus Installation Manual page 2

Modulus 4 Post Pedestal Table
INSTALLATION GUIDE
25
4

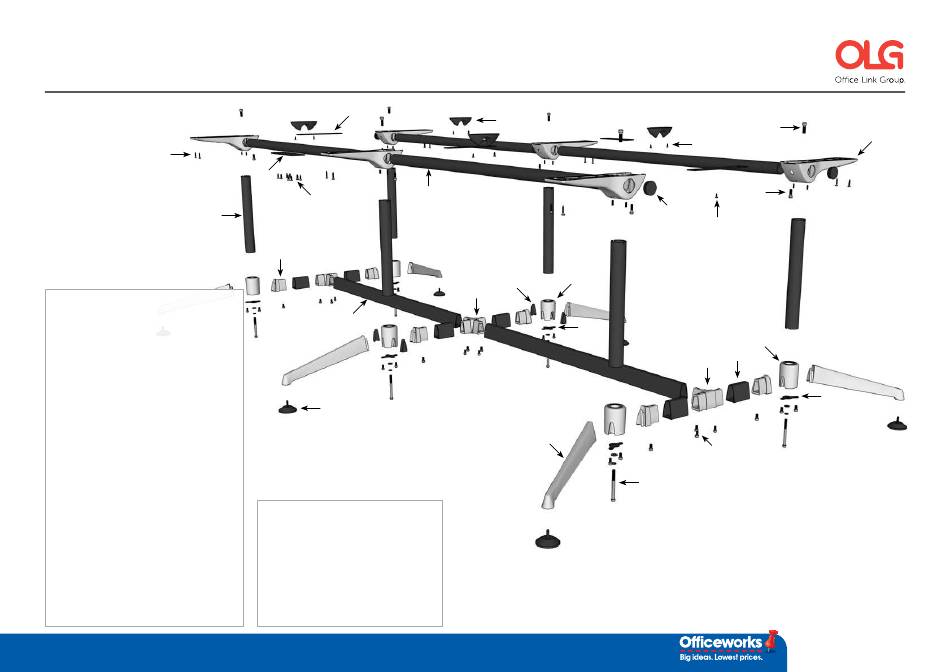

COMPONENTS
1 Die Cast Upper Wrist x6
2 Top Rail x4
3 Bottom Rail x2
4 Feet Tube x6
5
Large Foot x6
6
150° Collar x4
7 Cross Collar x2
8 Bottom T Connector x2
9 Cross Connector x1
10 T Tube x6
11 Collar Plug x4
12 T Tube & Collar Connector x6
13 Minus Gasket x2
14 150° Gasket x4
15 Foot Glide x6
16 Top Rail Caps x$
17 Steel Strap x3
18 Plastic Support x4
19 Table Top Bracket Plate x2
20 Table Top x2
17
19
2
26
12
3
15
SCREWS
21 M8x16mm x28
22 M10x110mm x6
23 M10x30mm x6
24 M8x25mm x6
25 M5x30mm Self Tapping x12
26 M5x20mm x47
18
7
11
9
13
5
22
23
26
24
16
26
6
10
8
14
21
