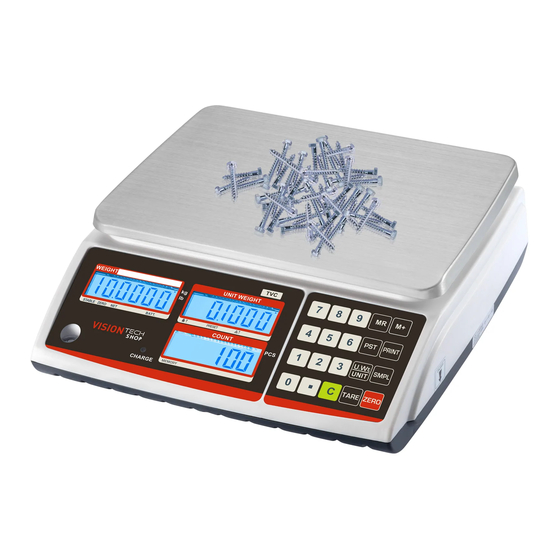

Summary of Contents for Vision Tech Shop TVC Series

  • Page 1 Counting Scales V1.2...
  • Page 2: Table Of Contents

    TVC Counting Scales Operation Manual Contents 1. INTRODUCTION ....................... - 1 - 2. KEY DESCRIPTION ......................- 1 - 3. DISPLAY SYMBOLS ......................- 1 - 4. GENERAL INSTRUCTION ....................- 2 - 5. BASIC OPERATION ......................- 2 - 5.
  • Page 3 TVC Counting Scales Operation Manual...
  • Page 4: Introduction

    TVC Counting Scales Operation Manual 1. INTRODUCTION ü TVC series of scales provides an accurate, fast and versatile series of counting scales. ü Weighing units conversion(kg/lb). ü All units include automatic zero tracking, audible alarm for pre-set weights/quantity, tare and an accumulation facility that allows the count to be stored and recalled as an accumulated total.
  • Page 5: General Instruction

    TVC Counting Scales Operation Manual Current weighing unit kg/lb indicators will show when the scale has determined that there is an insufficient number of samples to accurately determine the count: If a preset count has been stored, this indicator will have an arrow above it. Preset When the unit weight is not large enough to determine an accurate count.
  • Page 6: Tare

    TVC Counting Scales Operation Manual 5. 3 Tare Put container on the platter, once the weight reading is stable, press the TARE key, the TARE indicator will be on and the container’s weight will be deducted. When it is time to clear the TARE, take off the container, and press TARE key again.
  • Page 7: Parts Counting

    TVC Counting Scales Operation Manual value as it was entered. The sample is then added to the scale and the weight will be displayed as well as the quantity based upon the unit weight. 6.2 Parts Counting After the unit weight has been determined or entered it is possible to use the scale for parts counting.
  • Page 8: Accumulated Operation

    TVC Counting Scales Operation Manual Check mode ng : When the weight/quantity is out of the limits, the beeper will be sounded. Note: Check weighing available only when weight more than 20d For check limits, just one limit value can be set for operations The check mode will be deactivating, if both values are set to zero.
  • Page 9: Specification

    TVC Counting Scales Operation Manual 10.SPECIFICATION MODEL TVC-6 TVC-12 TVC-30 TVC-60 Capacity 6lb/3kg 12lb/6kg 30lb/15kg 60lb/30kg Readability 0.0002lb/0.1g 0.0005lb/0.2g 0.001lb/0.5g 0.002lb/1g Resolution 30000 Weighing Units kg / lb Display 0.59inch /15mm digits LCD Display with white LED back Light Platter size 8 x 10.5inch / 204 x 265mm Housing ABS Plastic and Stainless Steel pan...
  • Page 10: Selecting The Printer

    Press M+ key to send data to DLP label printer 14.RS232 OUT PUT The TVC Series of scales can be ordered with a standard RS-232 output. It can be connected to DEP receipt printer & DLP label printer 14.1Print Format...
  • Page 11: Diagram: Serial Interface

    TVC Counting Scales Operation Manual 14.2 Diagram: Serial interface 1 2 3 4 5 6 7 8 9 Pin 2 Input Receiving data Pin 3 Output Transmission data Pin 5 ― Signal ground 9pin D Connecter: Scale Computer Pin 2 Pin 3 Pin 3 Pin 2...

This manual is also suitable for:

Tvc-6Tvc-12Tvc-30Tvc-60
