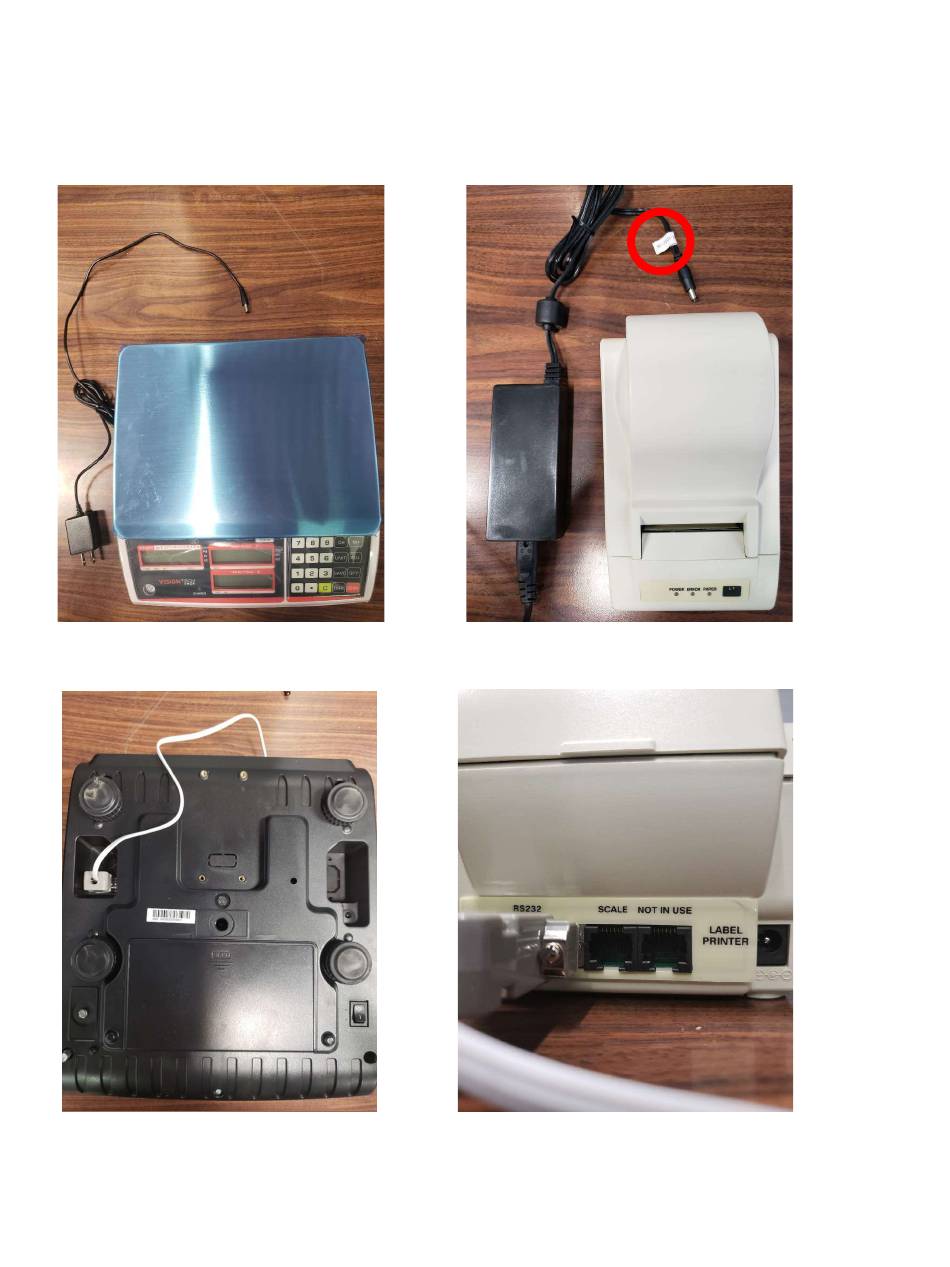

1. Connect the TVP series scale and DLP-50 label printer with their corresponding power
adapters. The power adapter for the DLP-50 or DEP-50 has a white label attached to the cord.
Do not swap the power adapters.
2. Connect both devices with the RS-232 cable.
TVP Series Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vision Tech Shop TVP Series

  • Page 1 TVP Series Quick Start Guide 1. Connect the TVP series scale and DLP-50 label printer with their corresponding power adapters. The power adapter for the DLP-50 or DEP-50 has a white label attached to the cord. Do not swap the power adapters.
  • Page 2 3. Before printing, place an object on scale and print. The object must weigh more than the minimum capacity printed on the side of the TVP-B 4. Enter the unit price of object. Afterwards, press to print.
  • Page 3 Scale Parameter Settings Accessing the Menu 1. Turn on the scale. Press and hold key during the self-test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu. 2. The default PIN number is “0000” 3.
  • Page 4 Protocol Type 1: Toledo toledo Protocol Type 2: NCI-ECR nciecr Protocol Type 3: NCI-General ncigen Protocol Type 4: TEC Protocol Type 5: Easy Weigh easy Set baud rate Baud to(1200/2400/4800/9600/19200/38 (default: 9600) 400/115200) 8 data bits, no verify, 1 stop bit (default) 7 data bits, Even verify, 1 stop bit 7 data bits, Odd verify, 1 stop bit...

This manual is also suitable for:

Tvp-60b
