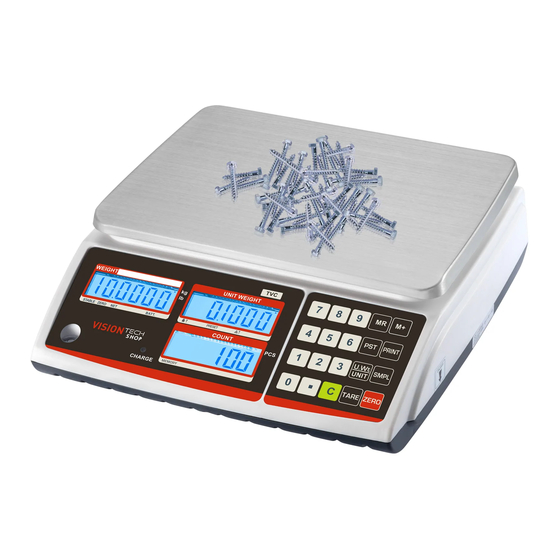

Counting scale
Hide thumbs Also See for TVC Series:
Table of Contents

Advertisement

Quick Links

TVC
Counting Scale
V1.09b-V1.11
REV:Y8, Nov 2019
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vision Tech Shop TVC Series

Summary of Contents for Vision Tech Shop TVC Series

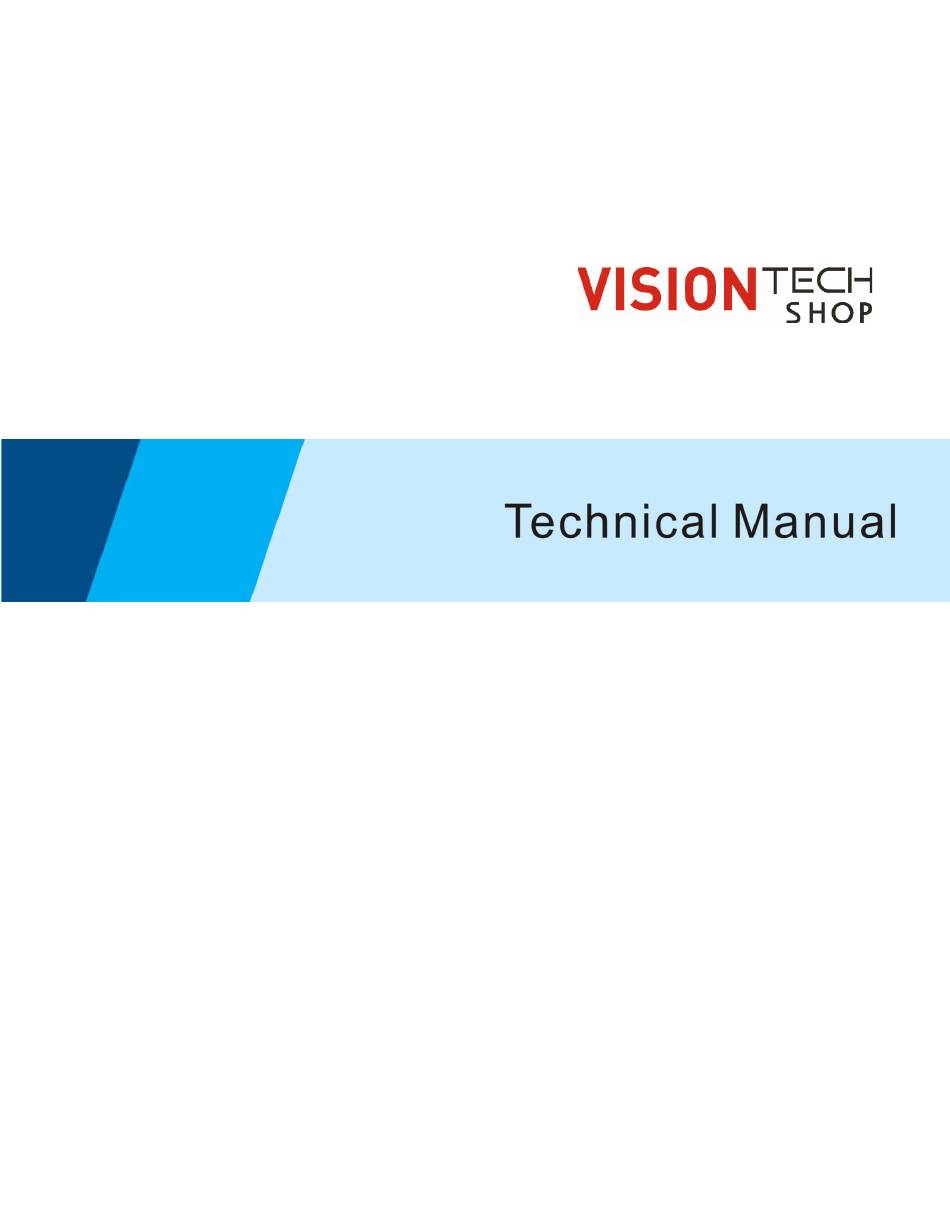

  • Page 1 Counting Scale V1.09b-V1.11 REV:Y8, Nov 2019 - 1 -...

  • Page 2: Table Of Contents

    TVC Counting Scale Technical Manual (v1.09b-v1.11) CONTENTS 1. PRECAUTIONS ....................... - 3 - 2. SPECIFICATIONS ....................- 4 - 3. INSTALLATION ......................- 5 - 4. DESCRIPTION ......................- 8 - 5. OPERATION......................- 10 - 1. Power ON/OFF....................- 10 - 2.

  • Page 3: Precautions

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 1. PRECAUTIONS  Read this manual before operating or servicing this equipment.  Follow these instructions carefully.  Disconnect this equipment from the power source before cleaning of performing maintenance.  Keep the manual for your future reference. ...

  • Page 4: Specifications

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 2. SPECIFICATIONS DIMENSION(inch/mm) SPECIFICATIONS MODEL TVC -6 TVC -12 TVC -30 TVC -60 Capacity 3kg/6lb 6kg/12lb 15kg/30lb 30kg/60lb Readability 0.1g/0.0002lb 0.2g/0.0005lb 0.5g/0.001lb 1g/0.002lb Resolution 30000 Weighing Units kg /lb Housing ABC Plastic and Stainless Steel platform Interface RS232 Output as standard Operation...

  • Page 5: Installation

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 3. INSTALLATION Unpacking Carefully take the balance out of its package, make sure it’s not damaged and all accessories are included. Accessories: 1. Balance 2. Adaptor 3. Stainless steel pan 4. Product manual Keep the packaging material for your future use. Parts Description Display Key board...
  • Page 6 TVC Counting Scale Technical Manual (v1.09b-v1.11) Installation  Place the scale on a table.  Carefully place the pan to the four holes on the top cover.  Adjust the water mark bubble level.  Connect the adaptor pin to the adaptor jack. Adaptor jack is located below the right side of the scale.
  • Page 7 TVC Counting Scale Technical Manual (v1.09b-v1.11) Connect Adaptor and Charging  To charge the battery, insert the adaptor pin to jack. Adaptor simply plugs into the main power. The scale does not need to be turned on.  The battery should be charged for 12 hours for full capacity. ...

  • Page 8: Description

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 4. DESCRIPTION Keyboard Keys Press this key to Enter individual unit weights and the present tare Clear incorrect entries and error conditions Returns the display to zero. Storing the current weight as tare value. Subtracting the tare value from the total weight and displays the result as net weight.
  • Page 9 TVC Counting Scale Technical Manual (v1.09b-v1.11) Manually enter the weight of sample, also changes the unit if they are enabled. Enter the numbers of items, used for the unit weight. Press and hold the key to select weighing units To set the limits of the number of items counted and weight.

  • Page 10: Operation

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 5. OPERATION Initial Start-Up Warm-up time of 15 minutes stabilizes the measured values after switching on Power ON/OFF Power switch is located below the right side of the scale. Press the key forward until to turn on. The display is switched on and the self test is started.

  • Page 11: Entering A Known Unit Weight

    TVC Counting Scale Technical Manual (v1.09b-v1.11) . Make sure that the amount shown is the amount on the scale before pressing the button.  The weighing may be amended on the basis of greater numbers of samples improves the accuracy of counting large quantities. 5.2.

  • Page 12: Automatic Part Weight Updates

    TVC Counting Scale Technical Manual (v1.09b-v1.11) and the average weight shown is calculated from the viewer "Unit Weight". 2.812 33.7217  Adding pieces on the scale, 3.316 33.7917 increase the weight and count. 5.4. Automatic Part Weight Updates After entering into parts counting, the display shows number of parts corresponding to previous reference weight.
  • Page 13 TVC Counting Scale Technical Manual (v1.09b-v1.11) Press the numeric keys to set the Hi Limits and confirm by pressing key. Hi limit will be set and display will be shown. PCS LO Press the numeric keys to set the Lo Limits and confirm by pressing key, then display will go to net Hi for to set weighing limits Weighing Limits...

  • Page 14: Accumulation

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 6. Accumulation 6.1 Prepare for accumulation.  Before accumulation, ensure the platform is empty.  If necessary, press to make display zero.  Display should be stable. 6.2 Accumulate operation 2.812  Place the goods on the platform. display will be show 2.812 ...

  • Page 15: Back Light

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 7. Back light The scale has the option of back light. It can help to see white background and brighter. Bl set mode Press and hold key, display will be show auto By pressing key can change back light to auto/on/off Bl set auTO To set auto option.

  • Page 16: Parameters

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 6. PARAMETERS 6.1 PARAMETERSETTING Enter into the Menu  Turn on the scale. Press and hold key during the self test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu.
  • Page 17 TVC Counting Scale Technical Manual (v1.09b-v1.11) 3000 6000 F3 CAP 3KG/6lb Set Scale Capacity 6KG/12lb 15KG/30lb 30KG/60lb F4 SPEED Slow To select A/D speed Medium Fast F5 ISN This display will show XXXXX for indicating the internal counts. F6 Gra To set your local gravity value.

  • Page 18: Calibration

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 7. CALIBRATION 7.1 Linear Calibration 1.Turn on the scale. 2. Press and hold key during the self-test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu.The default PIN number is “9999” 3.Press numeric key 9 four times, display will be shown Pn - - - - 4.Press key to confirm, It will enter into the parameter settings and show...
  • Page 19 16.Press When the calibration is finished, the display will enter into “F1 lCAL”. 17.Press key to go back to the normal weighing mode. Pounds Weights for linear Calibration. TVC SERIES Model # TVC -6 TVC -12 TVC -30 TVC -60...

  • Page 20: Normal Calibration

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 7.2 Normal Calibration 1.Turn on the scale. 2. Press and hold key during the self-test. Display will show “Pn” briefly PIN is activated. Press the PIN number to get into the parameter menu. The default PIN number is “9999” 3.Press numeric key 9 four times, display will be shown Pn - - - - 4.Press key to confirm, It will enter into the parameter settings and show...
  • Page 21 “PASS”, to indicate calibration has finished and display will come to F0 Cal 12.Remove calibration weight from the platform. 13.Press key for to go back to the weighing mode. Pounds test weights TVC SERIES Model # TVC -6 TVC -12 TVC -30...

  • Page 22: Rs-232 Protocol

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 8. RS-232 PROTOCOL The TVC Series of scales can be ordered with a standard RS-232 output. Specifications: RS-232 output of weighing data ASCII code 1200-115200 Baud 8 data bits No Parity Connector: 9 pin socket １...
  • Page 23 TVC Counting Scale Technical Manual (v1.09b-v1.11) -HEADER1- -HEADER2- -WEIGHT DATA- -WEIGHT UNIT- -TERMINATOR- HEADER1: ST=STABLE， UT=UNSTABLE HEADER2: NT=NET， GS=GROSS Print formats - 23 -...

  • Page 24: Error Codes

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 9. ERROR CODES Error Message Description Solution ----- Maximum load exceeded Unload or reduce weight Err 1 Incorrect date Enter the date by using format “yy;mm:dd” Err 2 Incorrect time Enter the time by using format “hh:mm:ss”...
  • Page 25 TVC Counting Scale Technical Manual (v1.09b-v1.11) Err 15 Gravity error Check the gravity settings. Gravity range must be 0.9xx ~ 1.0xx Err 16 Paper error Check the printer paper Err 17 Tare out of range Minus weight or overload. Remove the load and restart scale again.

  • Page 26: Drawing

    TVC Counting Scale Technical Manual (v1.09b-v1.11) 10. DRAWING - 26 -...
  • Page 27 TVC Counting Scale Technical Manual (v1.09b-v1.11) PARTS LIST - 27 -...
  • Page 28 TVC Counting Scale Technical Manual (v1.09b-v1.11) - 28 -...

This manual is also suitable for:

Tvc-6Tvc-12Tvc-30Tvc-60
