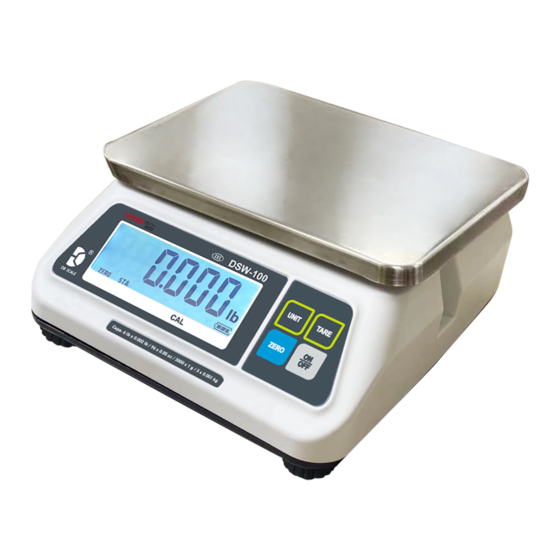

  • Page 1 Owner's Manual Ver 1.0 2022.12...

  • Page 4: Table Of Contents

    Content 1. CONVENTIONAL ......................1 1.1 Product Specification ....................1 1.2 Indicator Display ......................2 1.3 Basic Function Keys ....................3 1.4 Dimension ........................4 1.5 Interface (Option) .....................6 1.6 Display ........................6 2. BASIC OPERATION ......................7 2.1 Booting ........................7 2.2 Power On/Off Operation ..................7 2.3 Zero Operation ......................

  • Page 7: Conventional

    1. CONVENTIONAL 1.1 Product Specification SPECIFICATION Model DSW-100 Maximum capacity 6 lb 15 lb 30 lb 60 lb Minimum graduation 0.002 lb 0.005 lb 0.01 lb 0.02 lb Maximum tare weight -5.998 lb -14.995 lb -29.99 lb -59.98 lb 3000 g...

  • Page 8: Indicator Display

    1.2 Indicator Display The unit of weight ·Weight zero is “g” (gram) “/ kg ” (kg) “ / lb ” indicator, light (pound) “ / oz ” when the weight is "0". (ounce). · When the weight · Remaining battery value is stable, indicator the indicator...

  • Page 9: Basic Function Keys

    1.3 Basic Function Keys Keyboard type Specific display This key is used to convert the unit of weight Weight lb → oz → g → kg → lb. This key is used to set the tare or delete the tare Tare mode key *Tare = A container.

  • Page 10: Dimension

    1.4 Dimension Front view Back view (option) Side view...
  • Page 11 Top view...

  • Page 12: Interface (Option)

    1.5 Interface (Option) USB Port RS-232C Port 1.6 Display Screen...

  • Page 13: Basic Operation

    2. BASIC OPERATION 2.1 Booting Note: 1. During the field check, press the [ZERO] key to exit and enter the weighing mode. 2. When the battery capacity indicator shows only one bar, it means that the internal battery voltage is too low, please replace the battery. (Please use 4 alkaline batteries of R20P SIZE-D 1.5V ).

  • Page 14: Zero Operation

    2.3 Zero Operation Make sure that the scale is in a stable state and put a heavy object, the weight must be less than the set allowable zero setting range, such as 0.500lb. Click [ZERO] and remove the heavy object, which shows -0.500lb. Click [ZERO] again to reset to zero Note: If the weighing item exceeds the zero range, it will sound beep beep.

  • Page 15: Tare Operation

    2.4 Tare Operation Make sure that the scale is in a stable state and put on a heavy object. The weight must be less than the allowable tare range, such as 2.500lb Press [Tare] key to reset the displayed weight to zero. Remove the object and the display will show the tare weight Remove the heavy object, and the display will show -2.500lb Click [TARE] again to resume zero setting...

  • Page 16: Weight Unit Change

    2.5 Weight Unit Change Make sure the scale is stable Put a heavy object on the weighing pan, such as 0.545lb To enable this toggle function, SPEC03 bit.2 must be set to 1. Click the [UNIT]key, it displays 0.247kg. Press [UNIT] key again to exit kg mode. After removing the heavy object, click [ZERO] to resume zero setting...

  • Page 17: Backlight Brightness Setting

    2.6 Backlight Brightness Setting Make sure the scale is stable Press and hold the [UNIT] key for 5 seconds, knowing that "bL.S 3" appears on the screen, and the displayed "3" is the backlight brightness level Click [UNIT] to increase the brightness, the minimum brightness is 0 (without backlight), and the maximum brightness is 9 Click [ZERO] to save and exit Note: When working with batteries, decrease the backlight brightness as much as...

  • Page 18: Backlight Off Setting

    2.7 Backlight Off Setting Make sure the scale is stable Long press [ZERO] and click [UNIT] three times to enter user Settings Click [ZERO] to change the default Settings The figure shows the value of the backlight off The [UNIT] key is 0, the [TARE] key is 1, and the order is changed from right to left.
  • Page 19 Modify as required and click [ZERO] to save. Make sure that BIT 3 is "0" in SPEC 01, which means that changing the backlight Settings is allowed. By default, the status is allowed, that is, 0. The values are tabulated below. Backlight function BIT 3...

  • Page 20: Power Off Time

    2.8 Power Off Time Make sure the scale is stable Press [ZERO] and press [UNIT] three times to enter user settings Click [UNIT] to modify Spec 00. The [UNIT] key is 0, the [TARE] key is 1, and the order is changed from right to left. The options for BIT3 and BIT2 are as follows: 00 for 10 seconds, 01 for 20 seconds (default), 10 for 30 seconds, and 11 for not automatically turning off the backlight.

  • Page 21: Error Message

    3. ERROR MESSAGE ERRORS REASONS SOLUTIONS Remove or re-calibrate the Weight overload weight to clear the error message display. Zero or clear the tare to Gross or net weight is negative clear the error message display. Release the zero button to 888888 When the [ZERO] button is pressed clear the error message...
