Vision Tech Shop TVD Series Operation Manual

Multifunction scale
Hide thumbs Also See for TVD Series:
Table of Contents

Advertisement

Quick Links

Download this manual
TVD
Multifunction Scale
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vision Tech Shop TVD Series

Summary of Contents for Vision Tech Shop TVD Series

  • Page 1 Multifunction Scale V1.0...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION ..................... - 1 - 2. KEYS DESCRIPTION ..................... - 1 - 3. DISPLAY SYMBOLS ....................- 2 - 4. POWER CONNECTION ..................- 2 - 4.1 Rechargeable battery operation ..............- 2 - 4.2 Charging the battery ..................- 2 - 5.

  • Page 3: Introduction

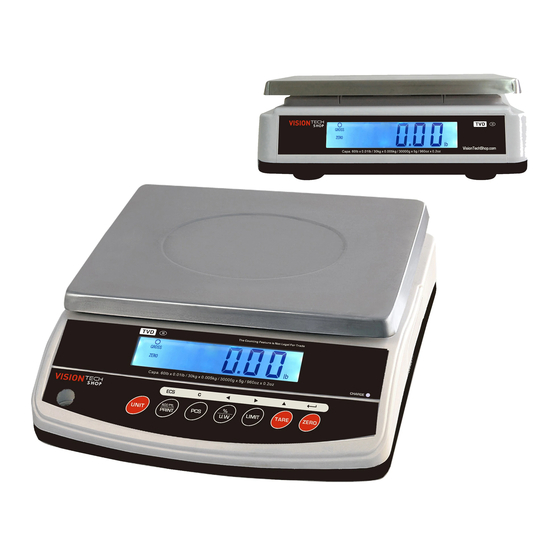

    TVD Series Multifunction Scale Operation Manual 1. INTRODUCTION  The TVD series weighing scales are suitable for general weighing, check weighing, simple parts counting, percent weighing ,accumulation and units conversion.  Capacities from 3kg to 30kg (6lb to 60lb).  Rechargeable battery provide up to 70 hours of continues use (with out backlight).

  • Page 4: Display Symbols

    TVD Series Multifunction Scale Operation Manual memory Units key  Used to select weighing units (kg/g/lb/oz) 3. DISPLAY SYMBOLS Symbols Description Battery indicator. When it’s illuminated, battery should be recharge Indicate when the load above (HI), load below (LO) and with in the limits (OK) in check weighing mode.

  • Page 5: Basic Operation

    TVD Series Multifunction Scale Operation Manual 5. BASIC OPERATION 5.1 Power On/Off Power switch is located below the right side of the scale. Turn the scale ON; press the switch forward and hold. The scale will show the capacity and enter a self-test mode and follow to enter the weighing mode.

  • Page 6: Parts Counting

    TVD Series Multifunction Scale Operation Manual Operation: 350g weight place on the scale and follow by press the key is pressed the display will show 100.00%. Remove the weight, and ensure display is zero Place 300g weight on the platform, display will be show 85.71 % as per the percentage...

  • Page 7: Limits Setting For Target Quantity

    TVD Series Multifunction Scale Operation Manual Display will be show the indicator to set Hi-Limit and the first digit will be active. 000.000 kg keys to shift location and press key to change the limit value, and press key to confirm.

  • Page 8: Limits Setting For Target Percentage

    TVD Series Multifunction Scale Operation Manual 5.7.3 Limits setting for target percentage Place the items on the pan. Press key ,it will display 100% Remove the items,scale will be come to percentage mode. Press key to set the check counting function.

  • Page 9: To Disable Check Weighing Mode

    TVD Series Multifunction Scale Operation Manual 5.7.5 To disable check weighing mode Press the key to display current limits. Press the key to enter zero into both limits when the current limits are shown, Press the key to store the zero values.

  • Page 10: Memory Clear

    TVD Series Multifunction Scale Operation Manual 5.8.3 Memory Clear To clear the memory, press key to view and press key during the accumulation displayed. Display will be show normal display , all accumulation memory cleared from the memory 5.8.4 Automatic Accumulation To enable the automatic accumulation, please see parameter AU>ON...

  • Page 11: Power Auto Off

    TVD Series Multifunction Scale Operation Manual 5.11 Power Auto Off After scale operations, when scale is not in use, it can set to turn off automatically Press keys during that start up. Press key until display show Of Press key to select the sub menu options.

  • Page 12: Specification

    TVD Series Multifunction Scale Operation Manual 6. SPECIFICATION MODEL TVD-6 TVD-12 TVD-30 TVD-60 6 lb 12 lb 30 lb 60 lb 96 oz 192 oz 480 oz 960 oz Capacity 3000 g 6000 g 15000 g 30000 g 3 kg...

  • Page 13: Dimmensions(Inch/Mm)

    TVD Series Multifunction Scale Operation Manual 7. DIMMENSIONS(inch/mm) 8. ERROR MESSAGE Error Message Description Solution Underload Minus weight, check the platform and restart ------ or calibrate. Zero setting range exceeded due to Zero setting error switching on. Err 4 Make sure platform empty.

  • Page 14: Selecting The Printer

    Press key to send data to DEP-5- receipt printer 10. RS232 OUT PUT The TVD Series of scales can be ordered with a standard RS-232 output. It can be connected to DEP-50 receipt printer & DLP-50 label printer 10.1Print Format...

  • Page 15: Diagram: Serial Interface

    TVD Series Multifunction Scale Operation Manual 10.2 Diagram: Serial interface １ ２ ３ ４ ５ ６ ７ ８ ９ Pin ２ Input Receiving data Pin ３ Output Transmission data Pin ５ ― Signal ground 9pin D Connecter: Scale Computer Pin 2...

This manual is also suitable for:

Tvd-6Tvd-12Tvd-30Tvd-60
