We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
Space Saver Shed Model: 23081SK

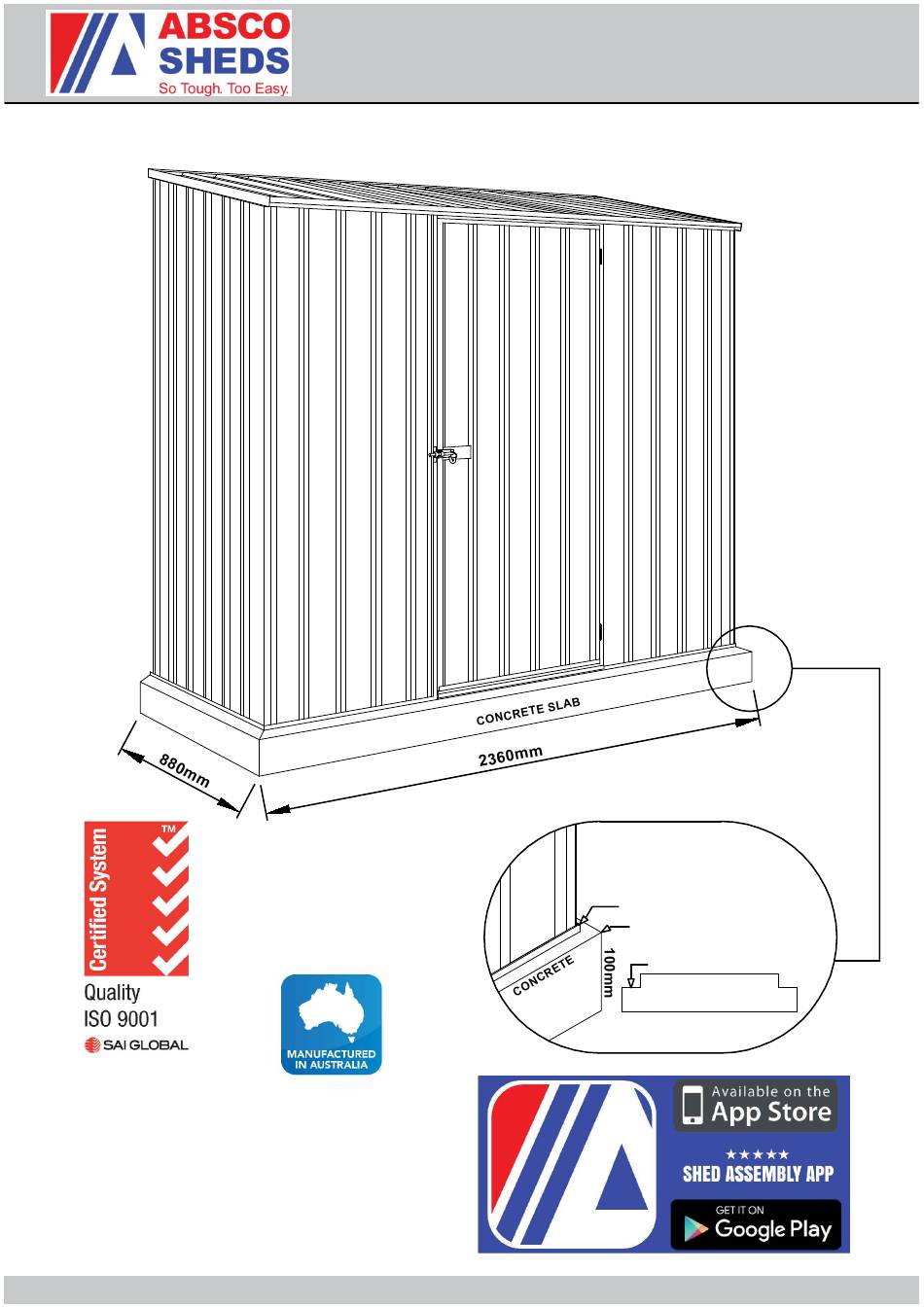

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
BOTTOM CHANNEL
REBATED EDGE
SHED MODEL: 23081SK
FRONT BASE
LENGTH: 2.26m
SIDE BASE
LENGTH: 0.78m
FRONT WALL
HEIGHT: 1.80m
REAR WALL
HEIGHT: 1.95m
75mm WIDE REBATE
CONCRETE SLAB
16-11-2017
PAGE 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Space Saver 23081SK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS Space Saver 23081SK

Summary of Contents for ABSCO SHEDS Space Saver 23081SK

  • Page 1 Absco Industries Space Saver Shed Model: 23081SK FRONT BASE LENGTH: 2.26m SIDE BASE LENGTH: 0.78m FRONT WALL HEIGHT: 1.80m REAR WALL HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A REBATED EDGE 25mm DEEP AROUND THE PERIMETER BOTTOM CHANNEL REBATED EDGE THIS WILL HELP WATER EGRESS FROM THE BASE OF THE SHED...
  • Page 2 Absco Industries Space Saver Shed Model: 23081SK GENERAL INSTRUCTIONS · Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. · Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.

  • Page 3: Component Description

    Absco Industries Space Saver Shed Model: 23081SK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET CHANNEL 1915 X 773mm L = 773mm STEEL SHEET 1915 X 773mm CHANNEL L = 788mm STEEL SHEET 1915mm X 773mm CHANNEL WITH HINGES...
  • Page 4 Absco Industries Space Saver Shed Model: 23081SK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 54AL 54AR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 54CL 54CR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 54BL 54BR...
  • Page 5 Absco Industries Space Saver Shed Model: 23081SK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION LIP TRIM L= 865mm JAMB L= 1120mm CONTENTS OF FITTINGS PACKET DOOR ASSEMBLY STRAP INSTRUCTIONS L: 165mm PSTKSGL SINGLE DOOR CHANNEL JOINER...
  • Page 6 Absco Industries Space Saver Shed Model: 23081SK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ Join the first channel to the CSJ by inserting the center joiner channel so the center of the of the CSJ (on an angle) to the end of the channel...
  • Page 7 Absco Industries Space Saver Shed Model: 23081SK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 12 X CHANNEL SECTIONS USING 6 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81C HOLES IN THEM - YOU WILL NEED TO RE-DRILL HOLES ON ANY CHANNEL WHERE THE CSJ JOINING CHANNEL COVERS...
  • Page 8 Absco Industries Space Saver Shed Model: 23081SK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 08...
  • Page 9 Absco Industries Space Saver Shed Model: 23081SK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 09...
  • Page 10 Absco Industries Space Saver Shed Model: 23081SK ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter channels are secured to the top and bottom of each panel using the snaptite system, as detailed on the...

  • Page 11: Door Panel Assembly

    Absco Industries Space Saver Shed Model: 23081SK DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 11...

  • Page 12: Rear Panel Assembly

    Absco Industries Space Saver Shed Model: 23081SK REAR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 12...

  • Page 13: Side Panel Assembly

    Absco Industries Space Saver Shed Model: 23081SK SIDE PANEL ASSEMBLY (TWO REQUIRED) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 13...
  • Page 14 Absco Industries Space Saver Shed Model: 23081SK ROOF PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 14...

  • Page 15: Front Panel Assembly

    Absco Industries Space Saver Shed Model: 23081SK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23081SK 16-11-2017 PAGE 15...
  • Page 16 Absco Industries Space Saver Shed Model: 23081SK NOTE: NUTS AND BOLTS (SUPPLIED) MAY BE USED INSTEAD OF POP RIVETS (SUPPLIED) BY SIMPLY ENLARGING THE HINGE HOLE SETS IN THE JAMB USING A 4MM DRILL BIT NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 17 Absco Industries Space Saver Shed Model: 23081SK PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. The top channel of each panel is pre-punched for attaching roof sheet. The base channels are not pre-punched.
  • Page 18 Absco Industries Space Saver Shed Model: 23081SK ANCHORING OF SHED FINAL CONSTRUCTION LOCATION OF 8 CONCRETE ANCHORS WALL BOLT & NUT SHEET STEEL ANGLE - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND STEEL ANGLE SLAB - DRILL A 10mm HOLE INTO THE WALL SHEET - DRILL A 10mm HOLE INTO THE CONCRETE DYNABOLT ABSCO INDUSTRIES...
  • Page 19 AUSTRALIA PRODUCT WARRANTY AGAINST DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 30 years from date of purchase, when installed within Australia.
  • Page 20 ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports. ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings etc., may exhibit minor deformations which may allow some water entry.
