W01/02PRI Pre 2017 - Quick Installation Guide - English
Jun 15, 2020 23:02
W01/02PRI Pre 2017 - Quick Installation Guide - English
The steps below help you to connect and configure your PRI gateway. W01PRI and W02PRI are ISDN
VoIP media gateways offer respectively 30 or 60 voice channels.
Updated: March 2017
Permalink:
https://confluence.wildix.com/x/LAg8AQ
Connection to power supply
Connection to Ethernet
Connecting W01/02PRI using DHCP server
Connecting W01/02PRI using a static IP address
Configuration of the gateway
Connection to the line
Reset of the gateway
Mounting racks
Note: W01/02PRI 2017 Installation Guide is published here:
Connection to power supply

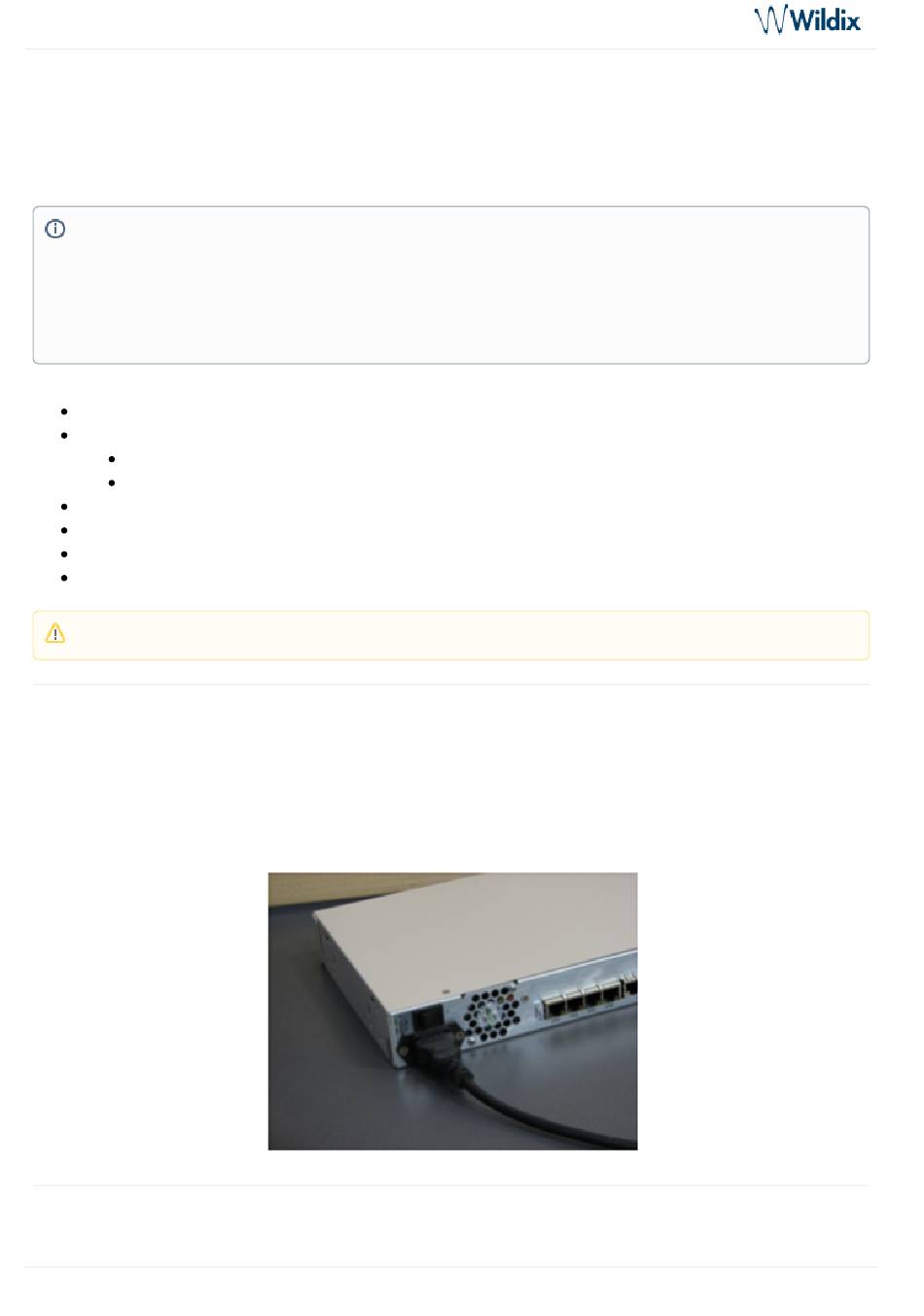

Connect the gateway using the power supply and the cable provided with the PRI gateway, as it is shown on the
picture:
Connection to Ethernet
W01/02PRI Pre 2017 - Quick Installation Guide - English
https://confluence.wildix.com/x/5wGIAQ
.
Page 1 of 5
