- Page 1 Assembly Guide Mounting Options and Accessories for FP-HDMI-TPS-97-GB3...

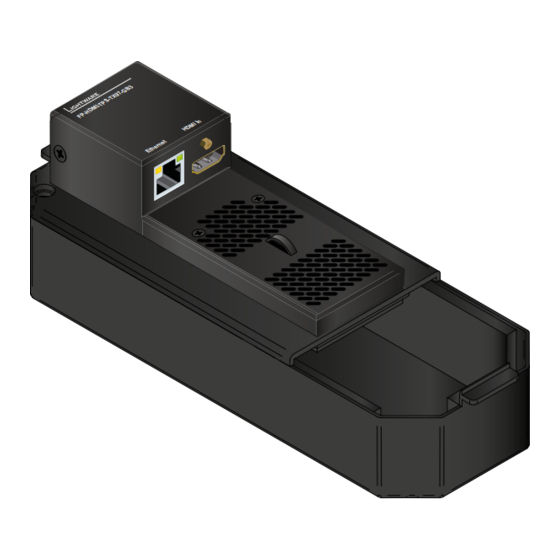

- Page 2 Introduction This document describes the assembling of FP-HDMI-TPS-97-GB3 to an industrial standard box step by step. The design of Lightware devices allows easy mounting, the size of FP-HDMI-TPS-97 is proper to place into the GB3 mounting box. Mounting Accessories Overview ATTENTION! Always use the screws supplied with the accessories.
- Page 3 The Mounting of Lightware Devices Assembly Guide Mounting Steps ATTENTION! Please unplug all cables from the device before performing the steps described below. The product is shipped assembled as shown. Step 1. Turn the device upside down. Step 2. Screw off the fixing screws.
- Page 4 Step 4. Insert the extender into the GB3 P3 frame. GB3 P3 frame Step 5. Put back the rear frame on the extender and position it to get the holes aligned. Step 6. Fasten the rear frame on the extender by the fitting all screws. Page 4 / 6...
- Page 5 The Mounting of Lightware Devices Assembly Guide Step 7. Plug in the CATx twisted pair cables and the 3-pole Phoenix connector to the unit, and the place in the GB3 mounting box. Don't forget to set the switches if it is needed.
- Page 6 11.4 134.5 19.4 71.6 43.3 39.2 46.3 Contact Us In case of any questions, please call your local representative or contact Lightware at: Lightware Sales: Lightware Support: sales@lightware.eu support@lightware.eu +36 1 255 3800 +36 1 255 3810 Lightware Visual Engineering...
