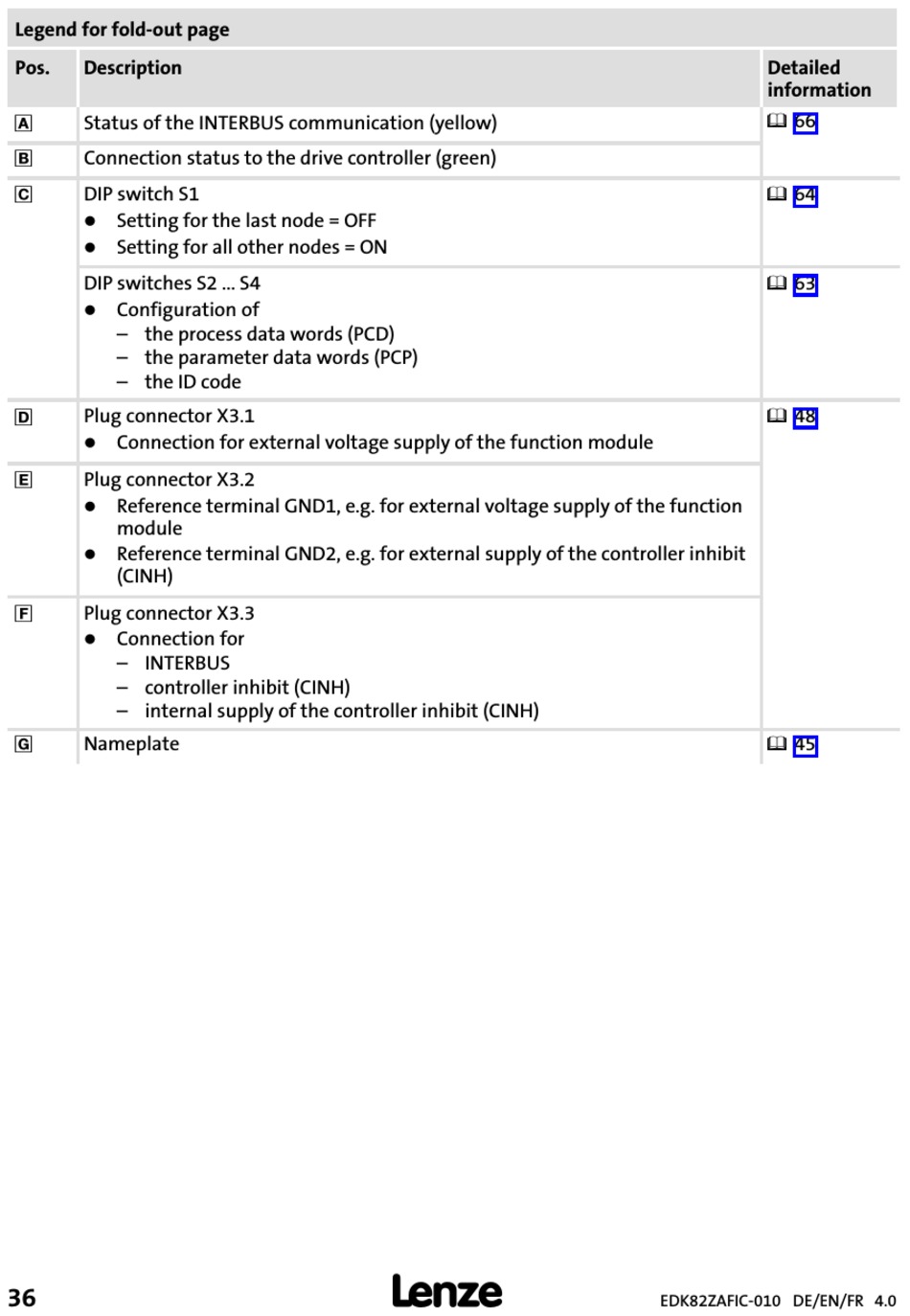

Legend for fold−out page
Pos.
Description
0
Status of the INTERBUS communication (yellow)
1
Connection status to the drive controller (green)
2
DIP switch S1
l
Setting for the last node = OFF
l
Setting for all other nodes = ON
DIP switches S2 ... S4
l
Configuration of
– the process data words (PCD)
– the parameter data words (PCP)
– the ID code
3
Plug connector X3.1
l
Connection for external voltage supply of the function module
4
Plug connector X3.2
l
Reference terminal GND1, e.g. for external voltage supply of the function
module
l
Reference terminal GND2, e.g. for external supply of the controller inhibit
(CINH)
5
Plug connector X3.3
l
Connection for
– INTERBUS
– controller inhibit (CINH)
– internal supply of the controller inhibit (CINH)
6
Nameplate
0Fig. 0Tab. 0
36
l
Detailed
information
^ 66
^ 64
^ 63
^ 48
^ 45
EDK82ZAFIC−010 DE/EN/FR 4.0
Advertisement
Table of Contents
Related Manuals for Lenze E82ZAFIC010
Summary of Contents for Lenze E82ZAFIC010
- Page 1 Legend for fold−out page Pos. Description Detailed information ^ 66 Status of the INTERBUS communication (yellow) Connection status to the drive controller (green) ^ 64 DIP switch S1 Setting for the last node = OFF Setting for all other nodes = ON ^ 63 DIP switches S2 ...
-
Page 2: Table Of Contents
Contents About this documentation ......... . . Conventions used . -
Page 3: About This Documentation
ƒ Information about the mechanical and electrical installation of the function module; ƒ Information about the commissioning of the function module; ƒ Safety instructions which you must observe in any case; ƒ Data about the versions of Lenze standard devices to be used; ƒ Technical data. Validity information... -
Page 4: Conventions Used
About this documentation Conventions used Conventions used This documentation uses the following conventions to distinguish between different types of information: Type of information Identification Examples/notes Numbers Decimal separator Point The decimal point is used throughout this documentation. Example: 1234.56 Symbols Page reference Reference to another page with additional information... -
Page 5: Notes Used
About this documentation Notes used Notes used The following pictographs and signal words are used in this documentation to indicate dangers and important information: Safety instructions Structure of safety instructions: Danger! (characterises the type and severity of danger) Note (describes the danger and gives information about how to prevent dangerous situations) Pictograph and signal word Meaning... - Page 6 About this documentation Notes used Application notes Pictograph and signal word Meaning Important note to ensure troublefree operation Note! Useful tip for simple handling Tip! Reference to another documentation EDK82ZAFIC−010 DE/EN/FR 4.0...
-
Page 7: Safety Instructions
Safety instructions Safety instructions Danger! Inappropriate handling of the function module and the standard device can cause serious injuries to persons and damage to material assets. Observe the safety instructions and residual hazards included in the documentation of the standard device. Stop! Electrostatic discharge Electronic components within the function module can be damaged or... -
Page 8: Product Description
The function module connects the standard device to the INTERBUS communication system. Application as directed The function module ... ƒ is an accessory module for use in conjunction with the following Lenze standard devices: Product series Device name From hardware version... -
Page 9: Scope Of Supply
Product description Scope of supply Scope of supply E82ZAFI014B, AFX006/007/011/012 Pos. Scope of supply Function module E82ZAFIC010 Mounting Instructions 2 plug connectors with spring connection, 3−pole Plug connector with spring connection, 13−pole Mounting Instructions EDK82ZAFIC−010 DE/EN/FR 4.0... -
Page 10: Identification
Product description Identification Identification ‚ƒ ‚ƒ A22 APPLICATION APPLICATION 010 / 3A22 010 / 3A22 Type Id.-No. Prod.-No. Ser.-No. E82AF000P0B201XX E82ZAFX005 ‚ ƒ E82ZAF Product series INTERBUS Version Variant: PT (plug terminal) with spring connection Hardware version Software version EDK82ZAFIC−010 DE/EN/FR 4.0... -
Page 11: Technical Data
Technical data General Data Technical data General Data Area Values Order designation E82TAFIC010 Communication medium RS485 Network topology Ring (go and return line in the same cable) Number of bus nodes Dependent on INTERBUS master (e.g. Phoenix Contact G4 master). For the following data, which depend on whether PCP communication is used or not, always the smaller value applies: with PCP communication: max. -
Page 12: Operating Conditions
1K3 (−25 to +60 °C) Transport IEC/EN 60721−3−2 2K3 (−25 to +70 °C) Operation Corresponding to the data of the Lenze standard device used (see documentation of the standard device). Pollution EN 61800−5−1 Degree of pollution 2 Degree of protection... -
Page 13: Connection Terminals
Technical data Connection terminals Connection terminals Terminal Designation Function / level X3.1/ External voltage supply of the function module U = 24 V DC (21.6 V − 0% ... 26.4 V + 0 %) Current consumption for 24 V DC: I = 90 mA If the supply voltage is looped through to other bus nodes via terminal 59, the current flowing must not exceed 3 A. -
Page 14: Dimensions
Technical data Dimensions Dimensions E82ZAFI014B All dimensions in mm EDK82ZAFIC−010 DE/EN/FR 4.0... -
Page 15: Mechanical Installation
Mechanical installation Mechanical installation Follow the notes given in the Mounting Instructions for the standard device for the mechanical installation of the function module. The Mounting Instructions for the standard device ... ƒ are part of the scope of supply and are enclosed with each device. ƒ... -
Page 16: Electrical Installation
Electrical installation Use of plug connectors Electrical installation Use of plug connectors Stop! Observe the following to prevent any damage to plug connectors and contacts: Only pug in / unplug the plug connectors when the controller is ƒ disconnected from the mains. Wire the plug connectors before plugging them in. -
Page 17: Wiring According To Emc
Electrical installation Wiring according to EMC Wiring according to EMC For wiring according to EMC requirements observe the following points: ƒ Use an equalizing conductor with a cross−section of at least 16 mm (reference: PE) to avoid potential differences between the bus nodes. ƒ... -
Page 18: Wiring To A Host
Electrical installation Wiring to a host Wiring to a host E82ZAFICxxx E82ZAFICxxx E82ZAFICxxx 400 m 400 m E82ZAFI008 Element Description Master computer E.g. PC or PLC with INTERBUS master interface module Bus cable Connects the INTERBUS master interface module to the function modules. - Page 19 Electrical installation Wiring to a host Specification of the transmission cable Specified characteristic Data Number of conductors 3 x 2 (twisted in pairs, with common shielding) Conductor cross−section Min. 0.2 mm Specific resistance Max. 9.6 / 100 m W ± Characteristic impedance 20 % for f = 0.064 MHz W ±...
-
Page 20: Voltage Supply
Electrical installation Voltage supply Voltage supply Internal DC voltage supply The internal voltage ... ƒ supplies the controller inhibit (CINH). ƒ is available at terminal X3.3/20. External voltage supply Note! Always use a separate power supply unit in every control cabinet and safely separate it according to EN 61800−5−1 ("SELV"/"PELV") in case of external voltage supply and larger distances between the control cabinets. - Page 21 Electrical installation Voltage supply Supply of controller inhibit (CINH) Supply via internal voltage source (X3.3/20) Supply via external voltage source GND1 GND1 GND1 GND1 GND2 GND2 X3.2 X3.1 X3.2 X3.1 GND3 GND1 GND3 GND1 +20V +20V X3.3 K + 28 20 A B C D E F G H J X3.3 K + 28 20...
-
Page 22: Terminal Assignment
Electrical installation Terminal assignment Terminal assignment Terminal Designation Function / level X3.1/ External voltage supply of the function module U = 24 V DC (21.6 V − 0% ... 26.4 V + 0 %) Current consumption for 24 V DC: I = 90 mA If the supply voltage is looped through to other bus nodes via terminal 59, the current flowing must not exceed 3 A. -
Page 23: Cable Cross−Sections And Screw−Tightening Torques
Electrical installation Cable cross−sections and screw−tightening torques Cable cross−sections and screw−tightening torques Area Values Electrical connection Plug connector with spring connection Possible connections rigid: 1.5 mm (AWG 16) flexible: without wire end ferrule 1.5 mm (AWG 16) with wire end ferrule, without plastic sleeve 1.5 mm (AWG 16) with wire end ferrule, with plastic sleeve... -
Page 24: Commissioning
Commissioning Before switching on Commissioning Before switching on Stop! Before you switch on the standard device and the plugged−in function module for the first time, check ... the entire wiring for completeness, short circuit and earth fault. ƒ the setting of the DIP switch S1 (^ 64): ƒ... -
Page 25: Commissioning Steps
Commissioning Commissioning steps Commissioning steps Note! Do not change the setting sequence. Step−by−step commissioning of the function module with DRIVECOM device control is described below. Step Procedure Detailed information ^ 62 Configure the control system (master) for communication via the function module. - Page 26 Use C1511 to assign the process data output words (POW) of the Manual master to the process data input words of the standard device. INTERBUS Lenze setting: POW1: DRIVECOM control word (DRIVECOM CTRL) POW2: Setpoint1 (NSET1−N1) POW3: Setpoint2 (NSET1−N2) POW4: Additional setpoint (PCTRL1−NADD)
-
Page 27: Control System Configuration
The configuration of the INTERBUS requires the device description file (EDS file) for the communication module to be imported to the master configuration software. The EDS file can be downloaded from the "Services & Downloads" area at http://www.Lenze.com via a login. EDK82ZAFIC−010 DE/EN/FR 4.0... -
Page 28: Defining The User Data Length
ƒ If one of the DIP switches S2 ... S4 = OFF, the configurations resulting from all switch settings are activated at power up. ƒ If the switch settings are invalid, the Lenze setting is activated: – DIP switches S2 ... S4 = OFF (2 PCD words + 1 PCP word) ƒ... -
Page 29: Setting For Last Bus Node
2 3 4 E82ZAFI009 Note! DIP switch 1 must only be set to OFF for the last physical node. ƒ Lenze setting: all switches OFF ƒ Position Notes Standard device with function module is the last bus node Standard device with function module is not the last bus node. -
Page 30: Connecting The Mains Voltage
− in some cases − even not allowed. The restart behaviour of the controller can be set in C0142: C0142 = 0 (Lenze setting) ƒ – The controller remains inhibited (even if the fault is no longer active). -
Page 31: Diagnostics
Diagnostics LED status displays Diagnostics LED status displays E82ZAFI014B Pos. Colour Condition Description Yellow No communication with the INTERBUS master. The function module is not supplied with voltage. Blinking Communication to the INTERBUS master via the function module is established. Internal error in the function module Green The function module is not supplied with voltage.
