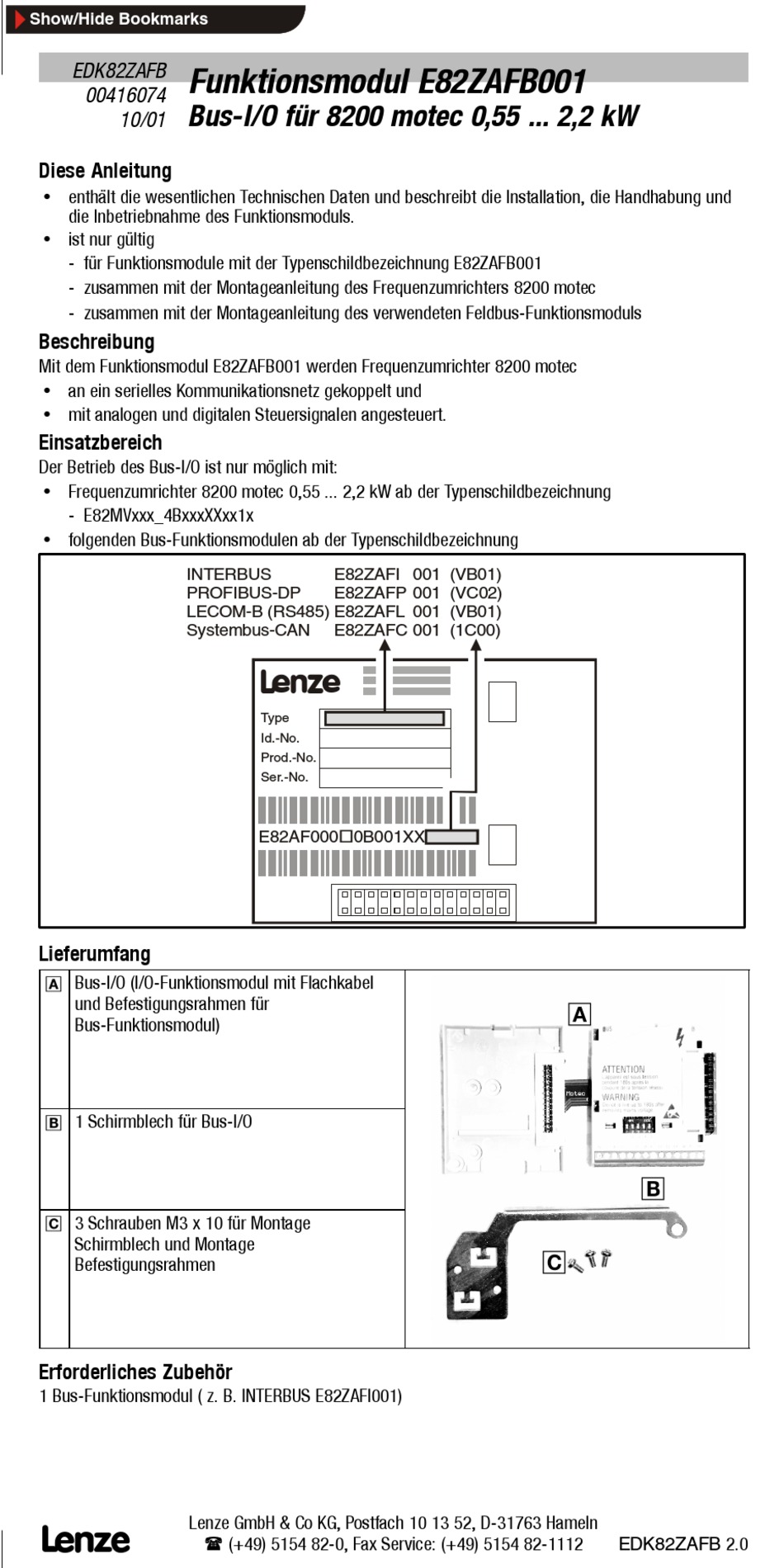

Diese Anleitung
Ÿ enthält die wesentlichen Technischen Daten und beschreibt die Installation, die Handhabung und
die Inbetriebnahme des Funktionsmoduls.
Ÿ ist nur gültig
- für Funktionsmodule mit der Typenschildbezeichnung E82ZAFB001
- zusammen mit der Montageanleitung des Frequenzumrichters 8200 motec
- zusammen mit der Montageanleitung des verwendeten Feldbus-Funktionsmoduls
Beschreibung
Mit dem Funktionsmodul E82ZAFB001 werden Frequenzumrichter 8200 motec
Ÿ an ein serielles Kommunikationsnetz gekoppelt und
Ÿ mit analogen und digitalen Steuersignalen angesteuert.
Einsatzbereich
Der Betrieb des Bus-I/O ist nur möglich mit:
Ÿ Frequenzumrichter 8200 motec 0,55 ... 2,2 kW ab der Typenschildbezeichnung
- E82MVxxx_4BxxxXXxx1x
Ÿ folgenden Bus-Funktionsmodulen ab der Typenschildbezeichnung
Lieferumfang
0
Bus-I/O (I/O-Funktionsmodul mit Flachkabel
und Befestigungsrahmen für
Bus-Funktionsmodul)
1
1 Schirmblech für Bus-I/O
2
3 Schrauben M3 x 10 für Montage
Schirmblech und Montage
Befestigungsrahmen
Erforderliches Zubehör
1 Bus-Funktionsmodul ( z. B. INTERBUS E82ZAFI001)
l
Funktionsmodul E82ZAFB001
Bus-I/O für 8200 motec 0,55 ... 2,2 kW
INTERBUS
E82ZAFI 001 (VB01)
PROFIBUS-DP
E82ZAFP 001 (VC02)
LECOM-B (RS485) E82ZAFL 001 (VB01)
Systembus-CAN
E82ZAFC 001 (1C00)
L
Type
Id.-No.
Prod.-No.
Ser.-No.
E82AF000 0B001XX
Lenze GmbH & Co KG, Postfach 10 13 52, D-31763 Hameln
( (+49) 5154 82-0, Fax Service: (+49) 5154 82-1112
¨
0
1
2
EDK82ZAFB 2.0
