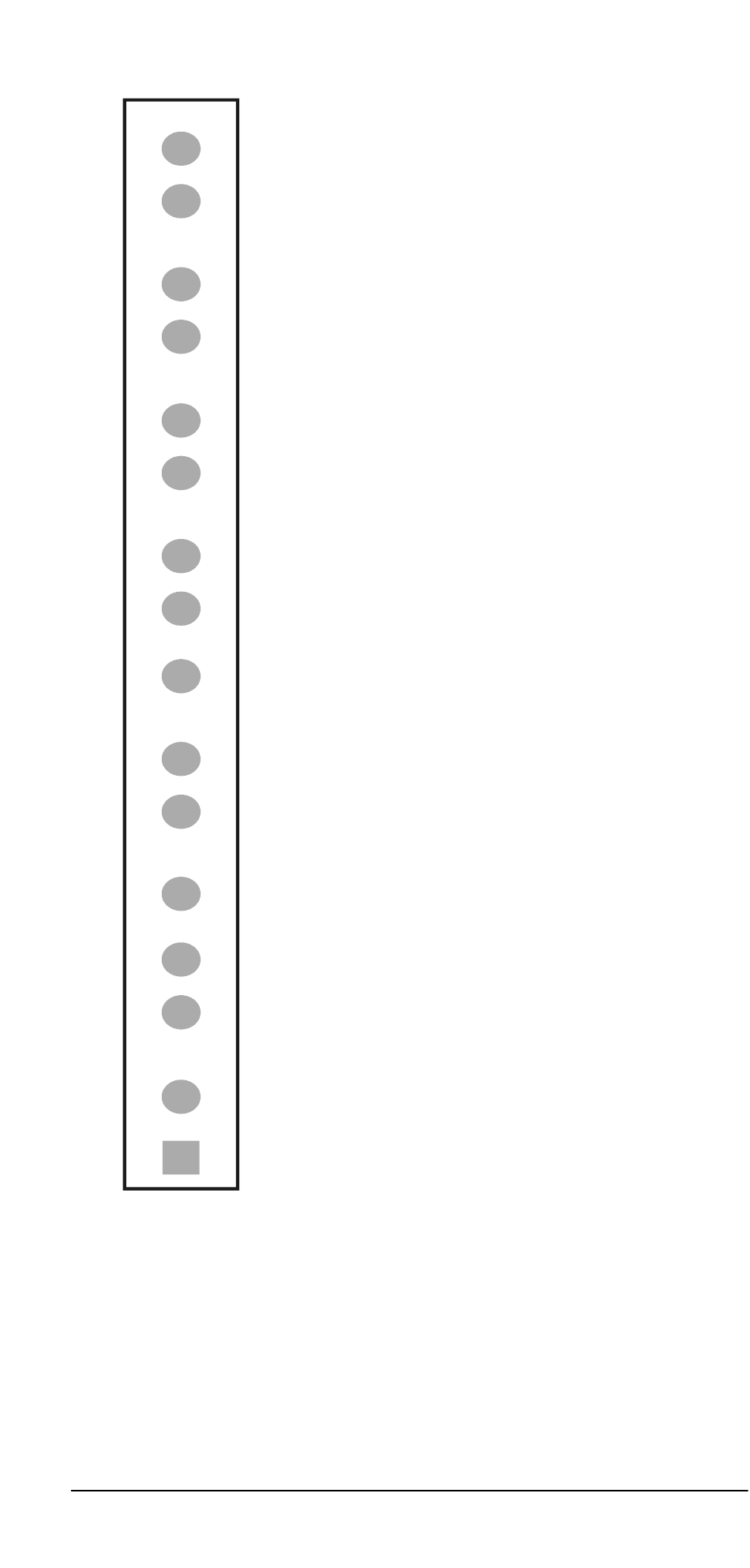

Figure 6. Controller Unit Wire Connector
PanDoor Installation and Programming Manual
TIP
TELCO
RING
TIP
HOUSE
RING
TIP
KEYPAD 1
RING
TIP
KEYPAD 2
RING
V+
KEYPAD 1
POWER
V-
V+
KEYPAD 2
POWER
V-
V+
BATTERY
V-
V+
CHARGER
V-
PSTN phone line
House phone line
Keypad 1 phone line
Keypad 2 phone line
12VDC output to
keypad 1 panel
12VDC output to
keypad 2 panel
12V battery input
(optional)
13.8V charger input
(optional)
