2 Installation
The PanDoor should be mounted on the supplied installation
bracket as displayed in Figure 4.
DO NOT ROUTE TELEPHONE AND AC WIRING
INSIDE THE SAME CONDUIT. Route all telephone
wires inside a dedicated conduit that is at least six
inches away from any AC line wiring.
2.1
Installing the PanDoor Wall Bracket
To install the PanDoor wall bracket:
1. Measure and mark the location on the wall where the holes
will be drilled for the mounting bracket.
2. Drill holes and insert the provided wall anchors.
3. Attach the mounting bracket using the provided wall
screws.
PanDoor Installation and Programming Manual

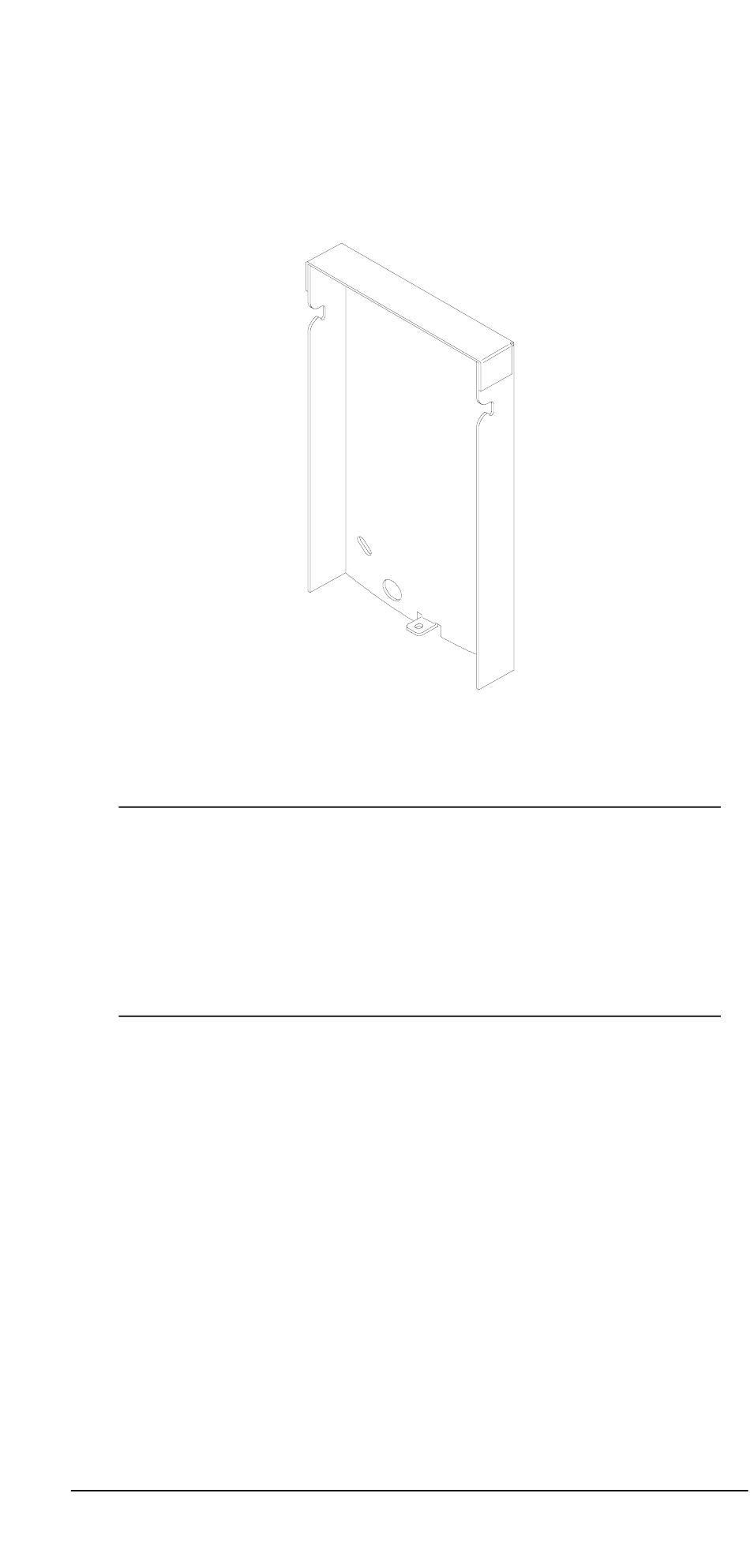

Figure 4. Outdoor Unit Bracket
Warning
Installation
7
