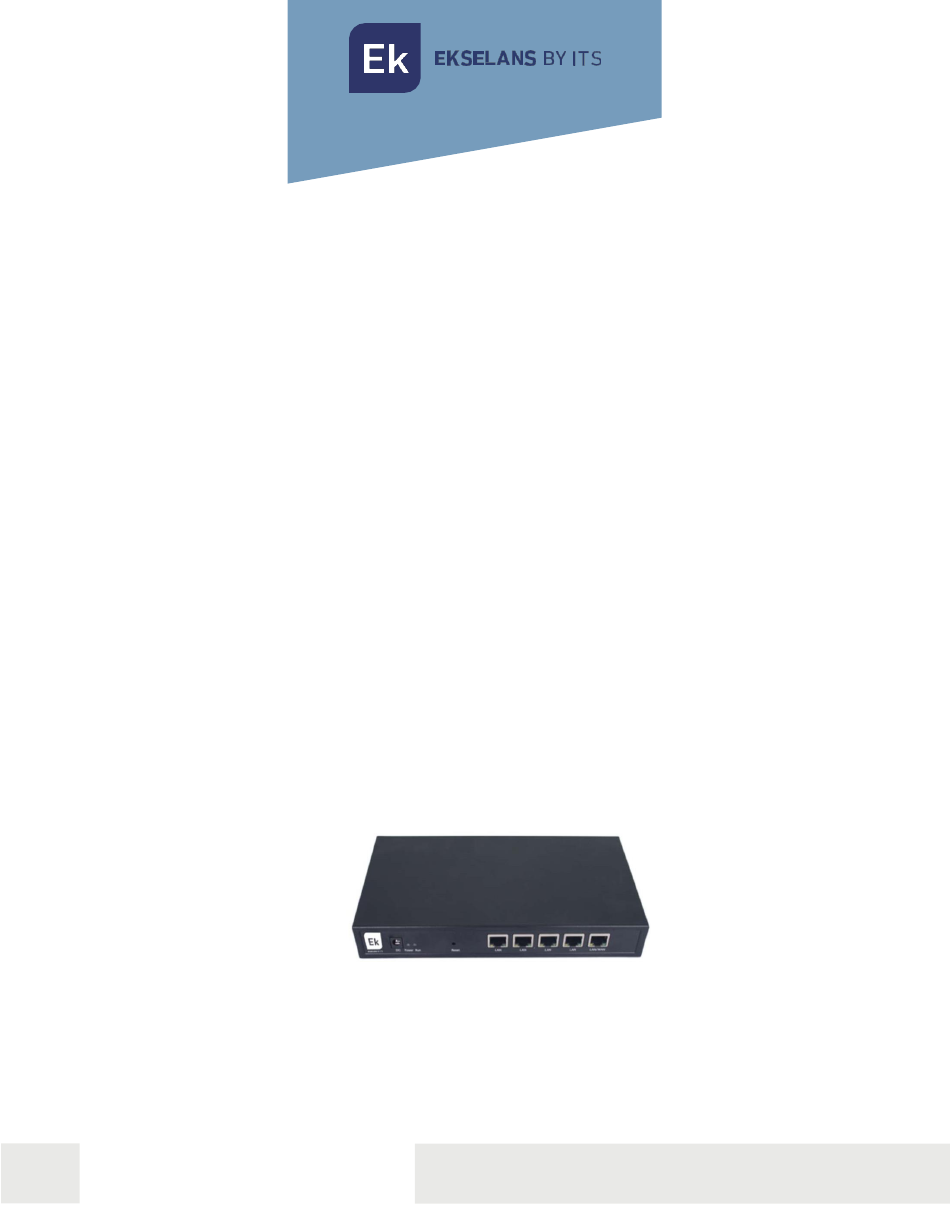

- Page 1 USER MANUAL CAP 2 335002 Controller for access points ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
-
Page 2: Table Of Contents
USER MANUAL CAP 2 TABLE OF CONTENTS Hardware............................................... 4 Example of installation diagram ....................................4 Access to CAP 2 ............................................5 CAP 2 web interface ..........................................6 Network Function ..........................................7 AC Setting ............................................... 7 Device Group ............................................. 12 Zero config ............................................13 Device Logs ............................................ - Page 3 USER MANUAL CAP 2 Management ............................................. 30 Modify Password ......................................... 30 Device Logs ............................................31 Firmware Update..........................................31 Examination ............................................32 System Time ............................................32 ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·...
-
Page 4: Hardware
USER MANUAL CAP 2 Hardware • RESET: Reset button. Press for 15 seconds for the device to restore to factory settings. • WAN: WAN port. Connect to the internet provider's router. • LAN: LAN port. • DC: DC power supply. Example of installation diagram ITS Partner O.B.S S.L ·... -
Page 5: Access To Cap 2
USER MANUAL CAP 2 Access to CAP 2 To access the CAP 2 follow the next steps: Connect to CAP 2 with a network cable or wireless configuration. Connect to CAP 2 with a network cable or wireless configuration (with an AP), you always must be connected to its LAN port. -
Page 6: Cap 2 Web Interface
USER MANUAL CAP 2 CAP 2 web interface Once the password is entered, the following window will appear. Then, it shows to us the next areas: Shows the number of connected clients. Displays the real-time bandwidth of each WAN network (provider). Displays RAM and CPU usage information. -
Page 7: Network Function
USER MANUAL CAP 2 Network Function AC Setting This section shows all the APs connected to the controller CAP 2. Displays information regarding APs: • SN: ID assigned to the AP by CAP 2. • Location: Location of the AP identified by the customer. •... - Page 8 USER MANUAL CAP 2 • Users: User number connected to the AP. Clicking will open a new window giving information about connected customers. • Channel: Channel over which the AP is transmitting the SSID of the AP (2.4Ghz / 5.8Ghz according to model).
- Page 9 USER MANUAL CAP 2 “Device Network " allows you to configure how the AP obtains IP: • DHCP: Gets the DHCP IP automatically from CAP 2. • Static IP: Allows you to manually assign the desired IP to the AP. The "Wireless Basic"...
- Page 10 USER MANUAL CAP 2 • Wireless Security: Displays the assigned security. To see more details and configure it, click on the "Config" button. A new window will open to set up wireless security. • VLAN: Allows you to assign a VLAN to the SSID. The "Wireless Advanced"...
- Page 11 USER MANUAL CAP 2 • Beacon interval: Interval for "beacon". The "beacon" is a packet that is sent to the client computer to notify if it is connected. If the time is reduced, more packets will be sent making the network slower. And if the value is too high, this will cause the equipment to disconnect more frequently.
-
Page 12: Device Group
USER MANUAL CAP 2 Device Group This section lists all groups created in CAP 1. A group contains multiple APs that are set to the same setting. Add Group: Open the window to define the group settings. The form is the same as in point 2 of the "Equipment List"... -
Page 13: Zero Config
USER MANUAL CAP 2 Zero config This function allows, before connecting any APs to CAP 2 create a default configuration. There can only be one Zero configuration and once all the APs that are connected to CAP 2 are created, they will be taking this default setting. -
Page 14: Device Logs
USER MANUAL CAP 2 Device Logs This section shows the activity event log for access points. Date, computer ID and MAC are displayed for each event that is happening: • On/ Off • Deploying and configuring APs. • Errors The "ClearLog"” button empty’s the list of records. ITS Partner O.B.S S.L ·... -
Page 15: Address Server
USER MANUAL CAP 2 Address Server This section configures DHCP that will assign IPs to different APs that connect to CAP 2. Server IP Address: It shows the initial IP for DHCP as well as the IP that will link between the APs and CAP 2 (IP Server is a second IP for CAP 2 in the range that the APs will be). -
Page 16: Lan
USER MANUAL CAP 2 LAN Settings: Configure the IP and subnet mask of CAP 2. DHCP Server Setting: Turns DHCP on or off. Configure DHCP Initial IP and End IP. Static DHCP: Allows you to assign fixed IPs to a MAC. This way the MAC will always have the same IP, which is ideal to be able to apply QoS. -
Page 17: Wan
USER MANUAL CAP 2 WAN Setting The CAP 2 allows you to change 3 of your LAN ports and enable them as WAN ports. In this way it is possible to have up to 4 WAN connections, 1 per ISP. Clicking on the "Config"... -
Page 18: Policy Routing
USER MANUAL CAP 2 Policy Routing This feature allows you to control and direct traffic through rules and routes to the WAN you want. Add: Adds a route. Clicking will bring up the following window: • Status: Enables or disables the rule. •... -
Page 19: Behavior
USER MANUAL CAP 2 Behavior CAP 2 allows you to control traffic behavior. It allows you to identify different types of service and group them into different "Application Class" and give them a certain behavior. Add: Allows you to add a behavior. Clicking will bring up the following window: •... -
Page 20: Flow Control
USER MANUAL CAP 2 Flow Control This function allows you to control the flow of traffic circulating through CAP 2. Smart Qos It allows you to identify different types of service and group them into different "Application Class" and give them a priority over bandwidth. It can be given more or less priority depending on our needs. -
Page 21: Speed Limit
USER MANUAL CAP 2 Speed Limit This feature allows you to add speed limits to connected customers. Add: Adds a speed limit. Clicking will bring up the following window: • Status: Enables or disables the speed limit. • IP Group: Assigns a group of IPS to which the speed limit will be applied. •... -
Page 22: Routing Management
USER MANUAL CAP 2 Routing Management This section shows all the routes that CAP 2 is currently using. Static Route Add: Adds a static route. Clicking will bring up the following window: • Destination: Sets the destination IP address. • Subnet Mask: Set the subnet mask. -
Page 23: Port Mapping
USER MANUAL CAP 2 Port Mapping In this section it is possible to open certain ports to the IPs of the desired devices. This allows certain services of the assigned devices to be viewed from the CAP 2 WAN. Note: CAP 2 allows you to work with different WANs. •... -
Page 24: Url Filter
USER MANUAL CAP 2 URL Filter The URL Filter allows you to deny all those URLs added to the list. IP Filter • Status: Enables or disables the rule. • Rule Name: Filter name. • Time Group: Select the rule in case that is applied over any particular time group. •... -
Page 25: Mac Filter
USER MANUAL CAP 2 MAC Filter Mac Filter allows you to authorize or deny devices identified by the MAC. DmZ allows redirecting all port requests to a particular IP. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·... -
Page 26: Ip/Time Group
USER MANUAL CAP 2 IP/Time Group In this section you can create IP groups and time zones. Note: It is important to remember that IPs are granted through DHCP and are variable. It is recommended to use fixed IPs assigned through the MAC in DHCP. IP Group Add: Add a group of IPs. -
Page 27: Time Group
USER MANUAL CAP 2 Time Group Add: Add a "Time Group". Clicking will open a new window. • Time Group: Name of "Time Group” • Time Range: Time range. • Work date: Select the days of the week. "Example: 8:00 to 12:00 only on Saturdays and Sundays. THE CAP 2 options for assigning a "Time Group"... - Page 28 USER MANUAL CAP 2 Authentication This section of CAP 2 activates the simple captive portal. To activate the portal, the "authentication" must be in "local authentication" mode. • Client Timeout: Maximum number of authentications allowed by the portal. • External domain Whitelist: List of domains that can be accessed without authentication. •...
-
Page 29: Local Auth
USER MANUAL CAP 2 Local auth In this section we will be able to configure the portal page. The portal consists of a slide show with 3 images and 3 buttons. • Advertising pictures: Select the position of the image you want to change, select the file and press "Update Pictures”. -
Page 30: Device Management
USER MANUAL CAP 2 Device Management Management In this section you can export the CAP 2 settings as well as restore it. You can also restore the equipment with factory settings. Modify Password Allows you to configure the user and password to access the CAP 2. ITS Partner O.B.S S.L ·... -
Page 31: Device Logs
USER MANUAL CAP 2 Device Logs Displays all CAP 2 events. It is also possible to store the logs on an external server by entering the IP and clicking on "Apply”. Firmware Update Select the file with which to update the cap 2 firmware and press "Upgrade” ITS Partner O.B.S S.L ·... -
Page 32: Examination
USER MANUAL CAP 2 Examination Allows you to assign a daily time for CAP 2 to restart. System Time Manage CAP 2 time zone. ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 ·...
