Signode YC Series Operation, Parts And Safety Manual page 4

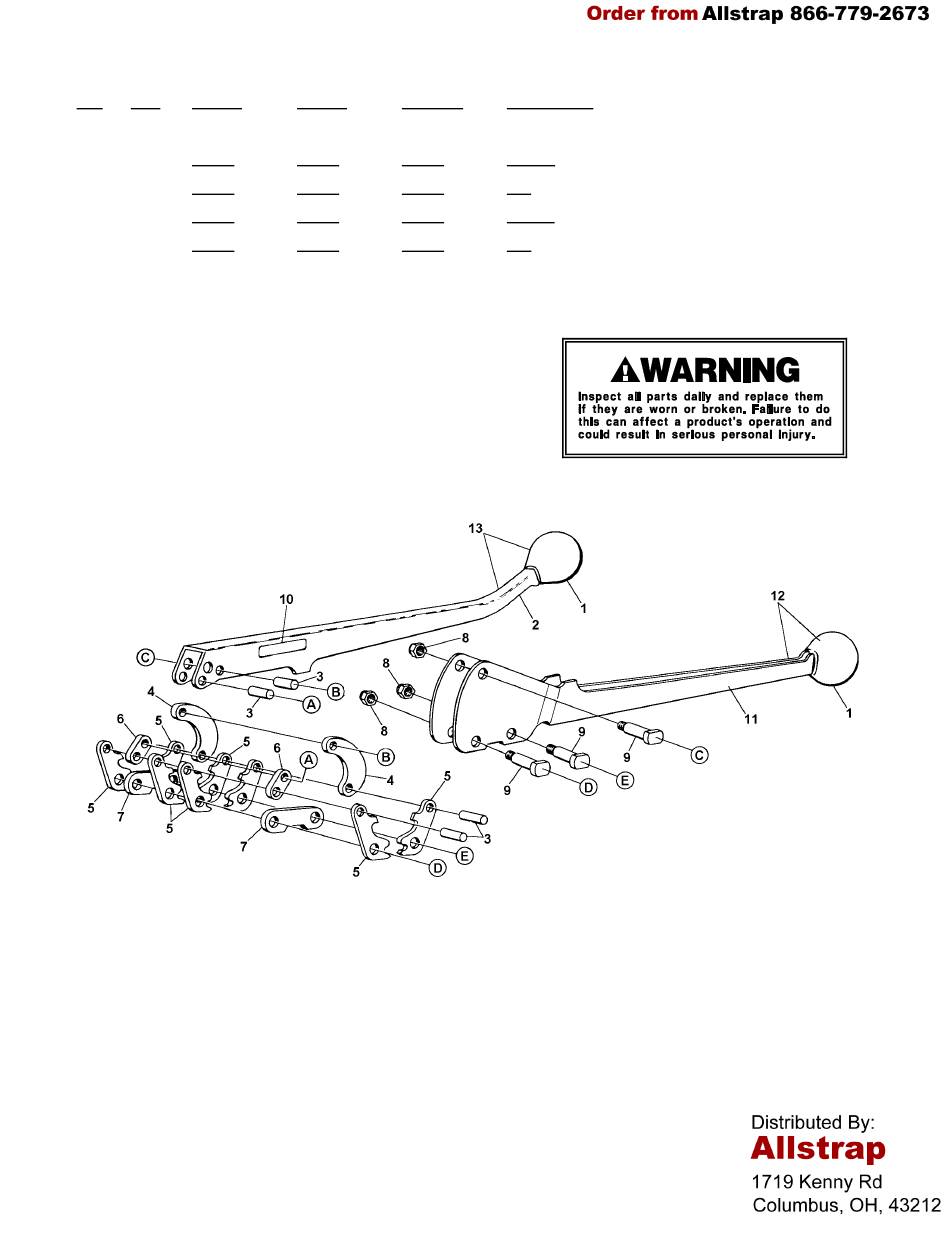

PARTS LIST,
PART NO.
KEY QTY. YC-1223
1 2 008648
2 1 023854
3 4 023863
4 2 023860
5 8 023855
6 2 023861
7 2 023862
8 3 004526
9 3 023864
10 1 003133
11 1 023851
12* 1 422308
13** 1 422311
* Key 12 consists of Key 1 and Key 11.
** Key 13 consists of Key 1 and Key 2
NOTES:
1. When ordering parts, please show tool model, part number and name.
2. All recommended spare parts are underlined and should be stocked.
3. Standard hardware parts may be obtained from local hardware suppliers.
ASSEMBLY NOTE: If tool is disassembled, operating handles must not bind while opening and closing when tool is reassembled.
Tighten down flexloc nuts (Key 8) equally and properly lubricate handle pivot points to ensure that handles do not bind.
MAINTENANCE
1. Inspect tool daily for worn or broken parts and replace if necessary.
2. Clean tool and apply light machine oil to all moving parts - weekly.
PART NO. PART NO.
YC-5823 YC-1-3425
008648 008648
023854 023854
023863 023863
023860 023860
023856 023856
023861 023861
023859 023857
004526 004526
023864 023864
003133 003133
023852 023853
422309 422310
422311 422311
4
DESCRIPTION
Knob
Upper handle
Link pin
Long link
Jaw
Short link
Notcher
Flexloc nut, thin, 1/4 x 28
Bolt
Warning label
Lower handle
Lower handle assembly
Upper handle assembly
