Machine Overview

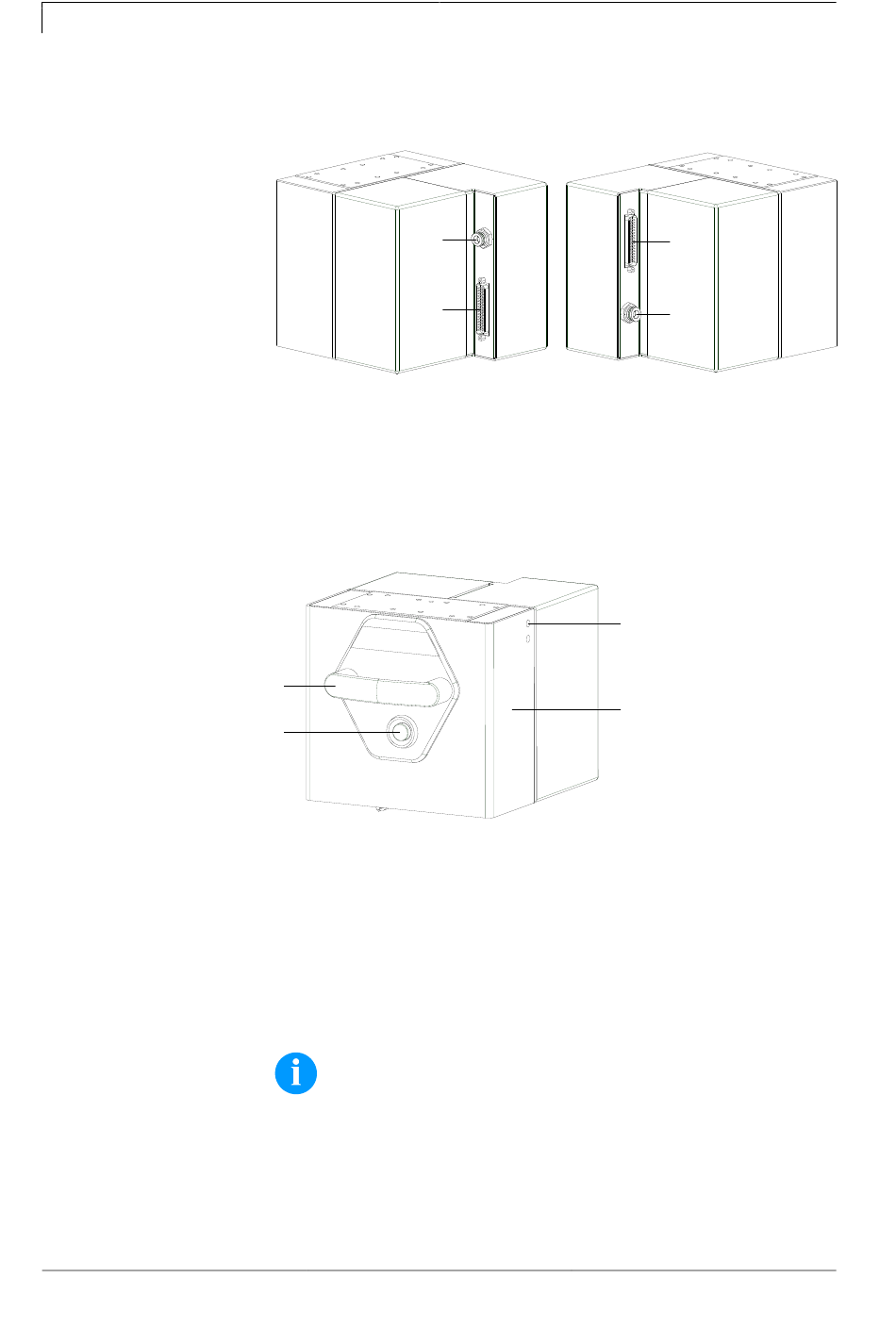

Connection side of
print mechanics
Front of the print unit
10

2.1 Figures

1
2
Figure 1
1 = Pneumatic connection
2 = Connecting cable (mechanics - control unit)
4
3
Figure 2
1 = Lift sensor, internal
2 = Cover
3 = Spring catch
4 = Handle
The cover (2) can be removed by the handle (4) with the spring catch
(3) pressed down.
NOTICE!
No print job can be initiated when the cover is removed.
An internal cover sensor (1) checks the status of the cover (open/
closed). This sensor does not satisfy the requirements of a standard-
compliant safety switch (see chapter 1.3, on page 6).
