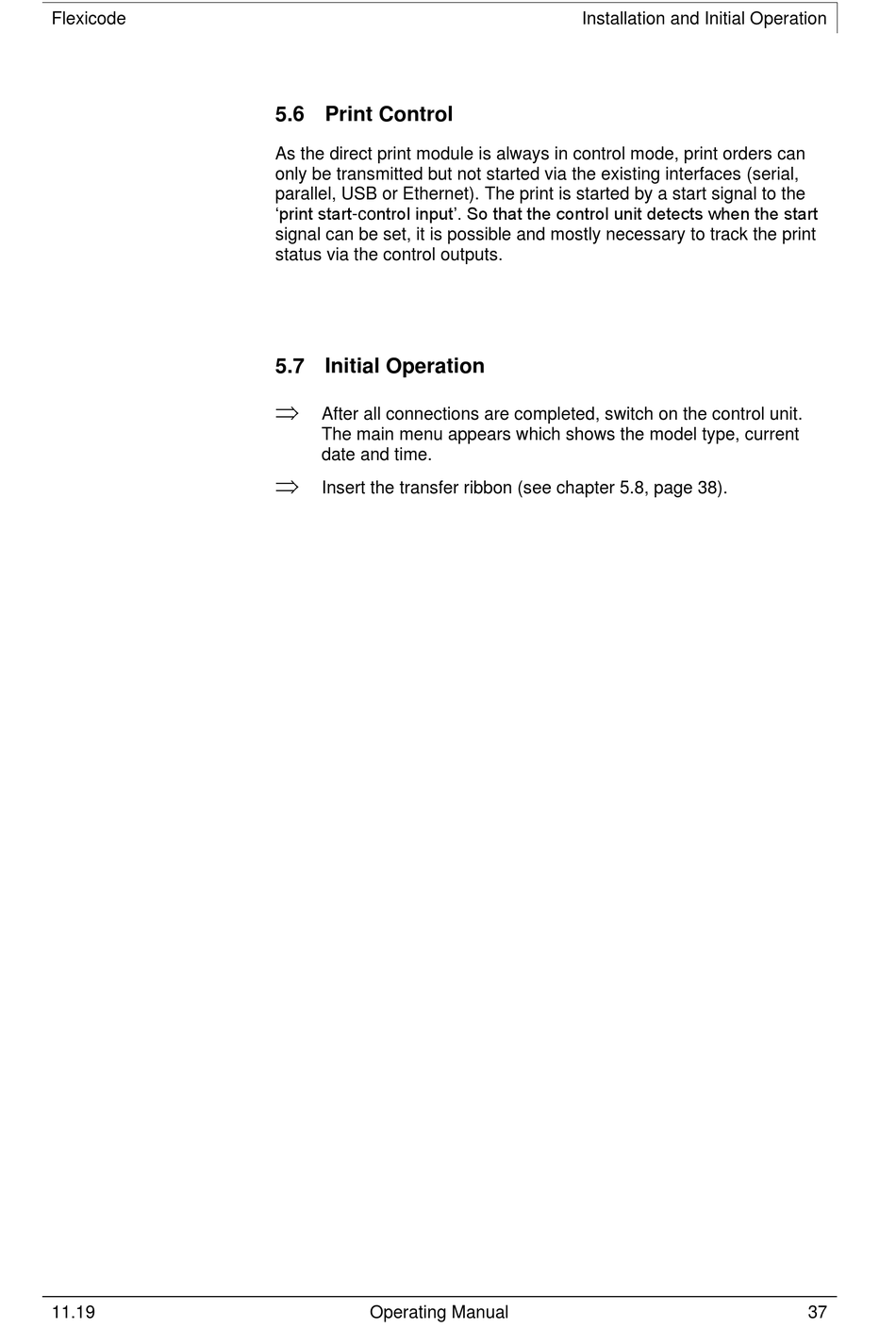

5.6 Print Control

As the direct print module is always in control mode, print orders can
only be transmitted but not started via the existing interfaces (serial,
parallel, USB or Ethernet). The print is started by a start signal to the
'print start-control input'. So that the control unit detects when the start
signal can be set, it is possible and mostly necessary to track the print
status via the control outputs.

5.7 Initial Operation


After all connections are completed, switch on the control unit.
The main menu appears which shows the model type, current
date and time.

Insert the transfer ribbon (see chapter 5.8, page 38).
