9.5 Angle Adjustment (Intermittent Mode)

B

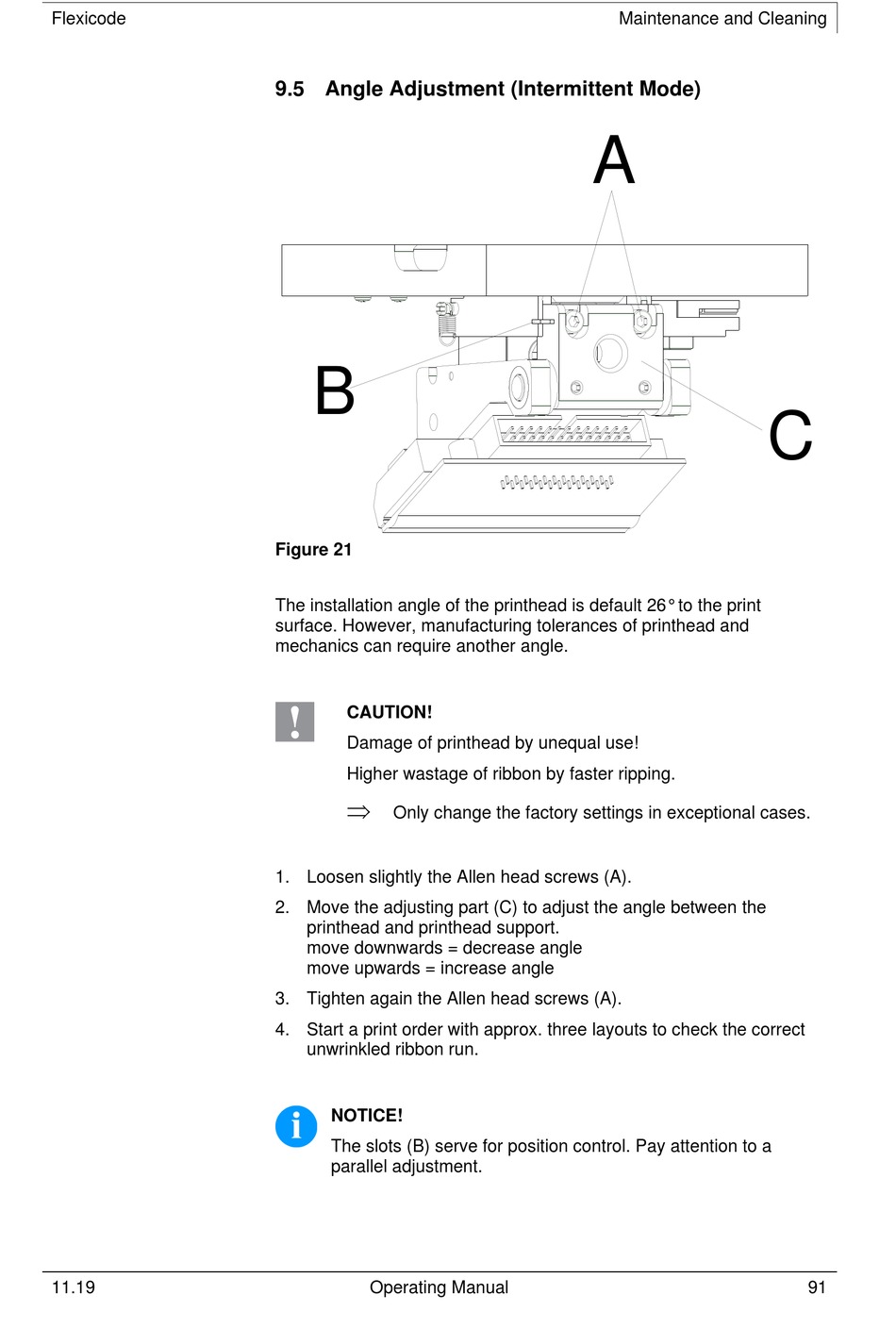

Figure 21
The installation angle of the printhead is default 26° to the print
surface. However, manufacturing tolerances of printhead and
mechanics can require another angle.
CAUTION!
Damage of printhead by unequal use!
Higher wastage of ribbon by faster ripping.

Only change the factory settings in exceptional cases.
1. Loosen slightly the Allen head screws (A).
2. Move the adjusting part (C) to adjust the angle between the
printhead and printhead support.
move downwards = decrease angle
move upwards = increase angle
3. Tighten again the Allen head screws (A).
4. Start a print order with approx. three layouts to check the correct
unwrinkled ribbon run.
NOTICE!
The slots (B) serve for position control. Pay attention to a
parallel adjustment.
